3 Recipe Settings Dialog Box
18-8 SmartAXIS Touch User’s Manual
This section describes the items and buttons on the Recipe Settings dialog box and the Individual Settings dialog box.

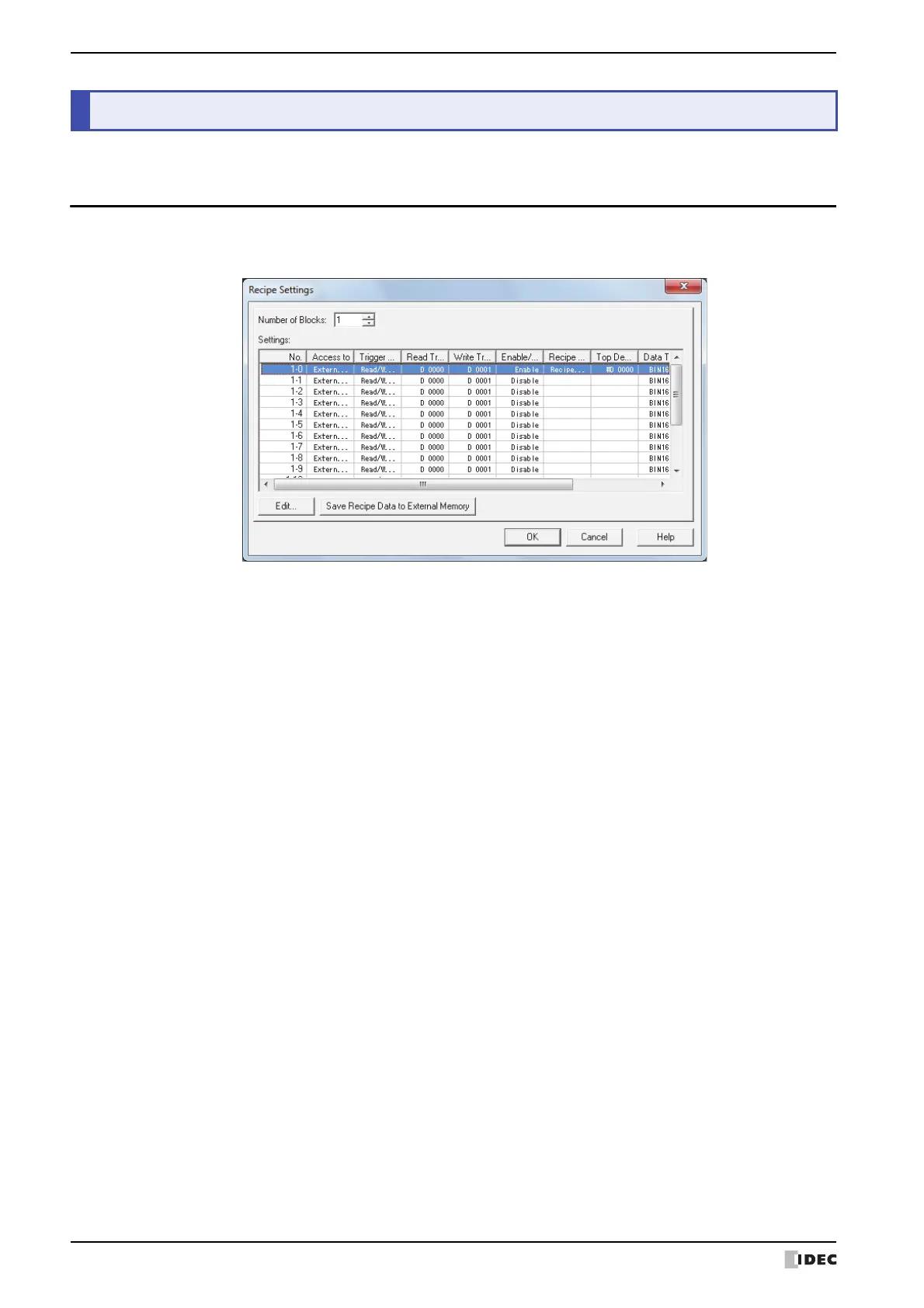

3.1 Recipe Settings Dialog Box
Use the Recipe Settings dialog box to collectively manage the save destination of data for recipes, the devices for
writing recipe values and reading values of devices, and those execution conditions.
Number of Blocks
The operation using the data for the recipe is configured in blocks (0 to 64). One channel is used for one item of data
for the recipe. One block is 16 channels.
The maximum number of blocks that can be configured is 64 blocks. The maximum number of devices that can be
configured for one channel is 8,192 devices.
Settings
Edits the recipe settings for each channel.
3 Recipe Settings Dialog Box
No.: Displayed as (Block No.)-(Channel No.). Double clicking the cell displays the Individual Settings
dialog box. For details, refer to “3.2 Individual Settings Dialog Box” on page 18-10.
Access to: Shows the save destination for the data for the recipe. Double clicking the cell switches between
Internal Memory and External Memory.
Trigger Setting: Shows the operation using the data for the recipe. When External Memory is selected for
Access to, double clicking the cell switches between Write-only, Read/Write, and Read-
only. Shows Write-only when Internal Memory is selected for Access to.
Read Trigger: Shows the device that triggers saving the recipe file. Double clicking the cell displays the Device
Address Settings dialog box. For the device address configuration procedure, refer to Chapter 2
“5.1 Device Address Settings” on page 2-62.
This option can only be configured when Read/Write or Read-only is selected under Trigger
Setting.
Write Trigger: Shows the device that triggers writing recipe values to devices. Double clicking the cell displays
the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.
This option can only be configured when Read/Write or Write-only is selected under
Trigger Setting.
Recipe function: Shows whether or not to use the Recipe function. Double clicking the cell switches between
Enable and Disable.
Recipe Name: Shows the name of the Recipe function for each channel. Double clicking the cell displays the
Individual Settings dialog box. For details, refer to “3.2 Individual Settings Dialog Box” on page
18-10.
