80447162 Rev B EN-15
EN

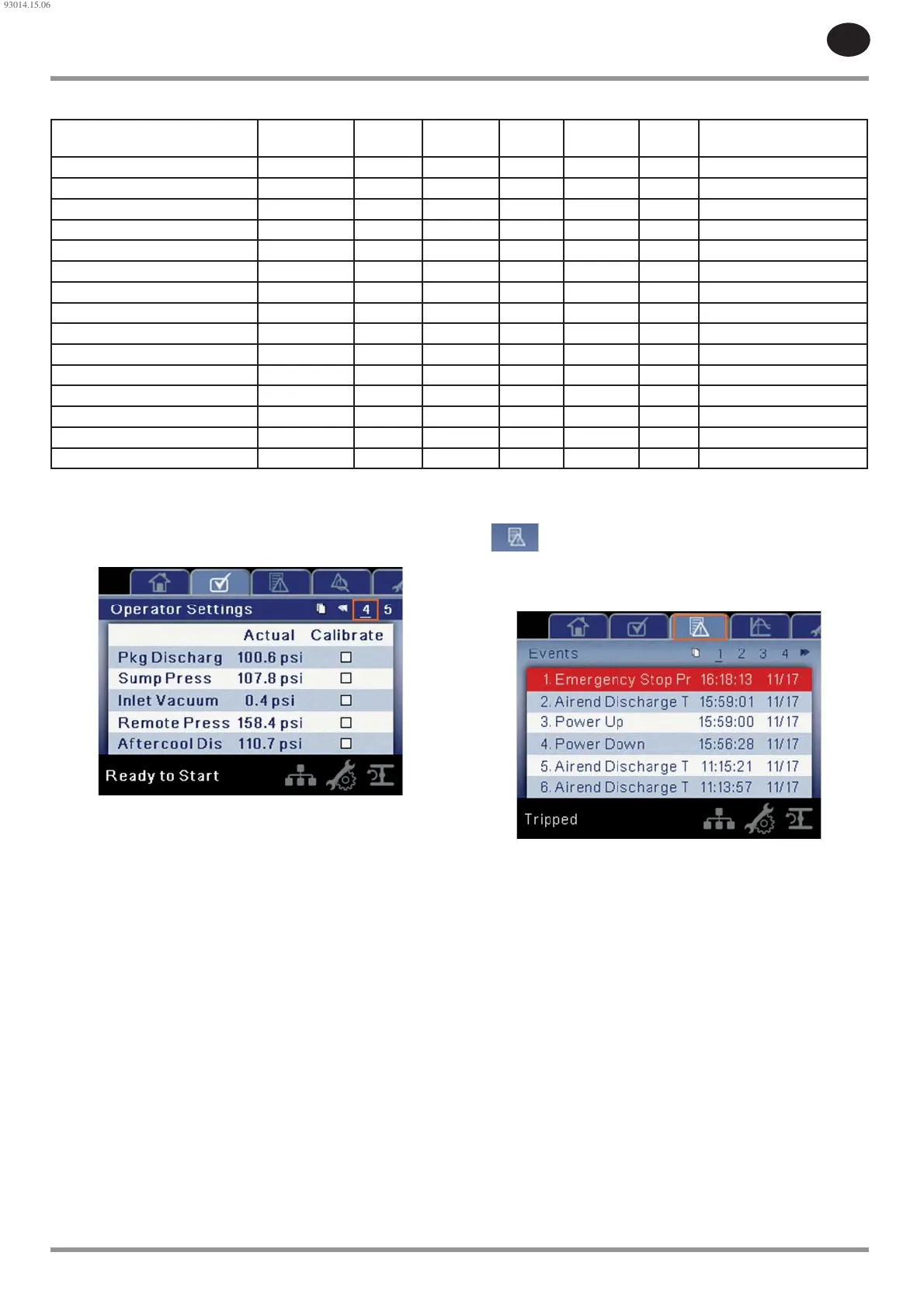

Table 11 : Operator Options
Operator Options Selection Min. Max. Def. Step Unit Installed option
required?
Enable Auto Restart ON/OFF --- --- OFF --- --- No
Auto Restart Time --- 2 60 10 1 Min No
Auto Restart Delay --- 0 60 0 1 Sec No
Comm Control ON/OFF --- --- OFF --- --- No
Remote Start/Stop ON/OFF --- --- OFF --- --- No
Power Out Restart ON/OFF --- --- OFF --- --- Yes
Power Out Restart Time --- 10 600 10 1 Sec Yes
Low Ambient Temp* --- 30 60 35 1 Deg F No
Lead/Lag Cycle Time** --- 0 750 0 1 Hours No
Scheduled Start - Day --- Day Day Sun 1 Day Yes
Scheduled Start --- 00:00 23:59 00:00 1 Time Yes
Scheduled Stop - Day --- Day Day Sun 1 Day Yes
Scheduled Stop --- 00:00 23:59 00:00 1 Time Yes
High Dust Filter ON/OFF --- --- OFF --- --- Yes
Remote Sensor ON/OFF --- --- OFF --- --- Yes
* The low ambient temperature is only adjustable if the low ambient factory set point is on.
** A value of 0 will disable the lead/lag cycle time feature.
Pages 6-7: Sensor Calibration
Figure 16 : Sensor Calibration
Sensor calibration can only take place when the compressor is stopped.
There should be no pressure on a sensor when it is calibrated. Calibration
only needs to take place after a sensor is replaced, the controller is replaced,
or the operator suspects the sensor reading is in error. Calibrate a sensor by
selecting the checkbox beside the sensor name.
Each of the sensors listed below can be calibrated:
Inlet Vacuum (1AVPT)
Sump Pressure (3APT)
Package Discharge Pressure (4APT)
Coolant Filter Inlet Pressure (5CPT)
Coolant Filter Outlet Pressure (6CPT)
Remote Pressure (10APT) – Only on compressors with the remote sensor
option
Interstage Pressure (2APT) – Only on 2-stage compressors
After-cooler Discharge Pressure (7APT) – Only on compressors with
integrated dryer
Please note that if a sensor is currently reading a value that is +/- 10% of
its range from zero, the sensor will not be able to be calibrated. Please
make sure the sensor is being exposed to atmosphere before attempting
calibration.
•
•
•
•
•
•
•
•
Events folder
Pages 1-42 (max.)
Figure 17 : Events Folder
The pages in the Events folder document up to the last 250 events that the
controller has experienced, and time stamps each. The events are recorded
in sequence, with number one being the newest and 250 being the oldest.
When a new event occurs, it becomes number one and all others are shifted
up in number.
The page numbers in the Title Bar are used to scroll through the events, with
each page displaying up to seven. Page one displays events one through six,
page two displays seven through twelve, and so on.
The following items will generate an event:
Power ON
Power OFF
Press the Start Key
Press the Stop Key
Press the Load Key
Press the Unload Key
Warning
Trip
Start Inhibit
Active Warnings will be highlighted in amber while cleared Warnings will
have amber text.
•
•
•
•
•
•
•
•
•
93014.15.06
