80447162 Rev B EN-33
EN

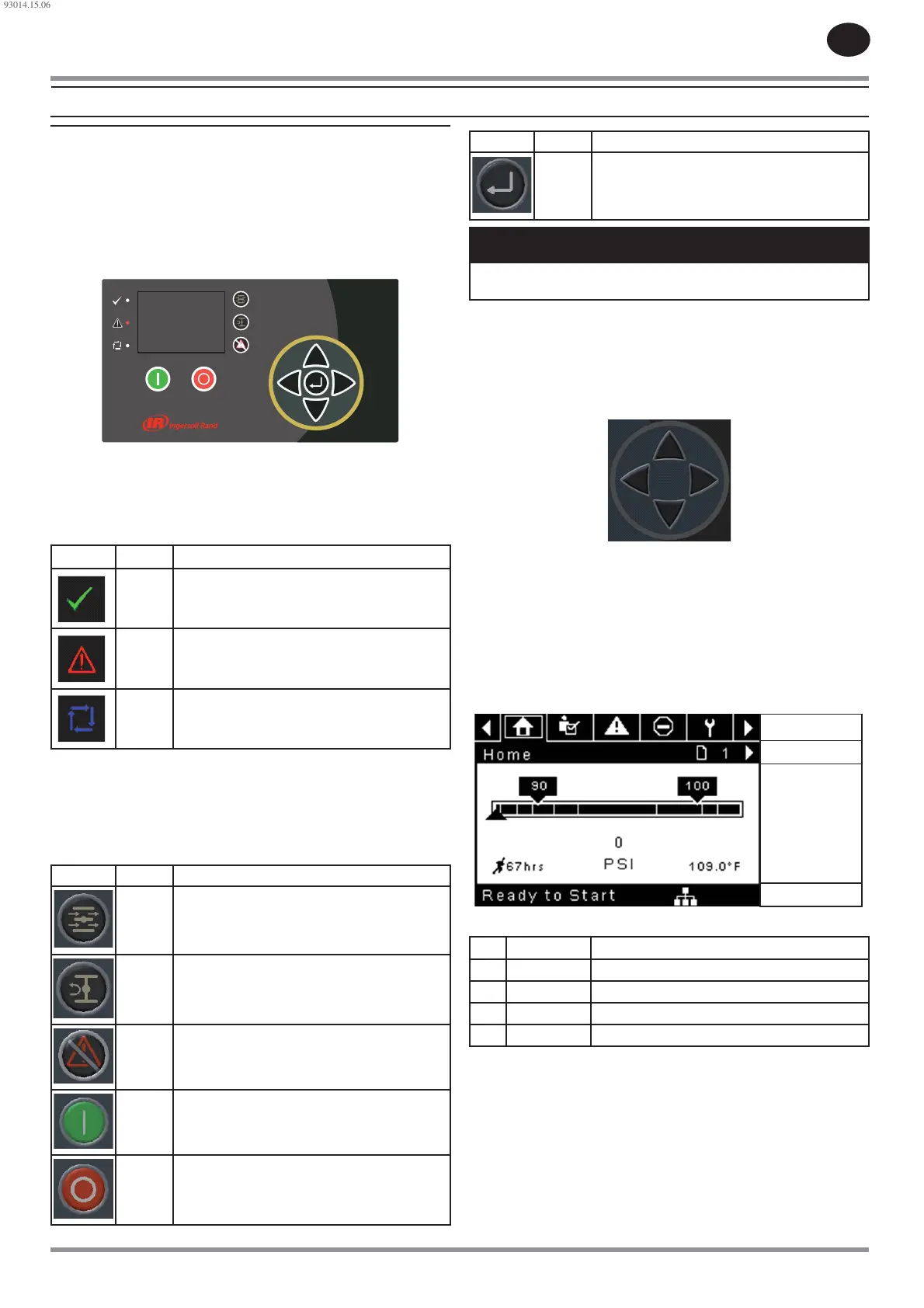

OPERATING INSTRUCTIONS (XE-70M CONTROLLER)
User Interface
The standard user interface con guration of the controller consists of the
membrane and the LCD display. The membrane consists of ve command
keys (Start, Stop, Load, Unload, and Reset), four navigation keys (Up, Right,
Left and Down), and an Edit mode selection key (Enter). These keys, in
conjunction with the graphics display and the LED icons, make up the user
interface to the compressor.
Figure 66: Xe-70M
Led Status Icons
Three LED icons are used to indicate the current status of the control system
from a distance and are located on the upper left side of the user interface.
Table 26: Xe-70M LED Status Icons
Icon Name Function
OK Illuminates when no Warnings or Trips are sensed.
Can be in a Ready or Not Ready state. This icon will
ash when the machine is Running Unloaded.
Alert Illuminates when a Warning ( ashes) or Trip
(constant ON) is sensed. Can be in a Ready
(Warning) or Tripped state.
Auto Illuminates when the compressor stops in auto
restart.
Command Keys
These keys command the controller to perform actions as speci ed in the
following table. When any of these keys are pressed the action below will be
initiated and logged in the event log.
Table 27: Xe-70M Command Keys
Icon Name Function
Load Puts the compressor into the selected mode of
operation. Unit will load if the pressure conditions
are right.
Unload Puts the compressor into an unloaded state. Unit
will run unloaded inde nitely.
Reset Clears Warnings and Trips once the fault condition
is corrected.
Start Starts the compressor.
Stop Stops the compressor. This button should be
pressed instead of the Emergency Stop for normal
stopping operation.
Icon Name Function
Enter Toggles the display between the Navigation mode
and the Edit mode.
NOTICE
The Load and Unload keys are not used on the variable speed
compressors.
Navigation Keys
There are four navigation keys (UP, RIGHT, DOWN and LEFT). While the ENTER
key is not considered a navigation key, it is used in conjunction with the
navigation keys to make or con rm a selection.
Figure 67 : Navigation Keys
The navigation keys roll over. Pressing one of the navigation keys will lead
the user down a navigation path. Each time the key is pressed, another step
in the path is taken. Once the end of a navigation path is reached, pressing
the key one more time will bring the user back to the beginning of the path.
Pressing the opposite key will move the user through the navigation path in
the opposite direction. Once the beginning is reached, pressing the opposite
key will take the user to the end of the path.
Display layout
Figure 68 : Display Layout
A
B
C
D
Table 28 : Display Layout
Key Name Description
A Folder Bar Uses tabs to graphically identify each folder.
B Title Bar Identi es current folder and page (underlined).
C Page Content Content of the current page.
D Dashboard Displays system status.
93014.15.06
