page two displays six through ten, and so on.
The following actions will generate an event:
Power ON
Power OFF
Press the Start Key
Press the Stop Key
Press the Load Key
Press the Unload Key
Warning
Trip
Start Inhibit
Active Trips will be highlighted in red while cleared Trips will have red text.
The trip history also records compressor data at the time of the trip to assist
in diagnostics and troubleshooting. Navigating to the trip entry and pressing
the enter button will activate the trip history dialog box.

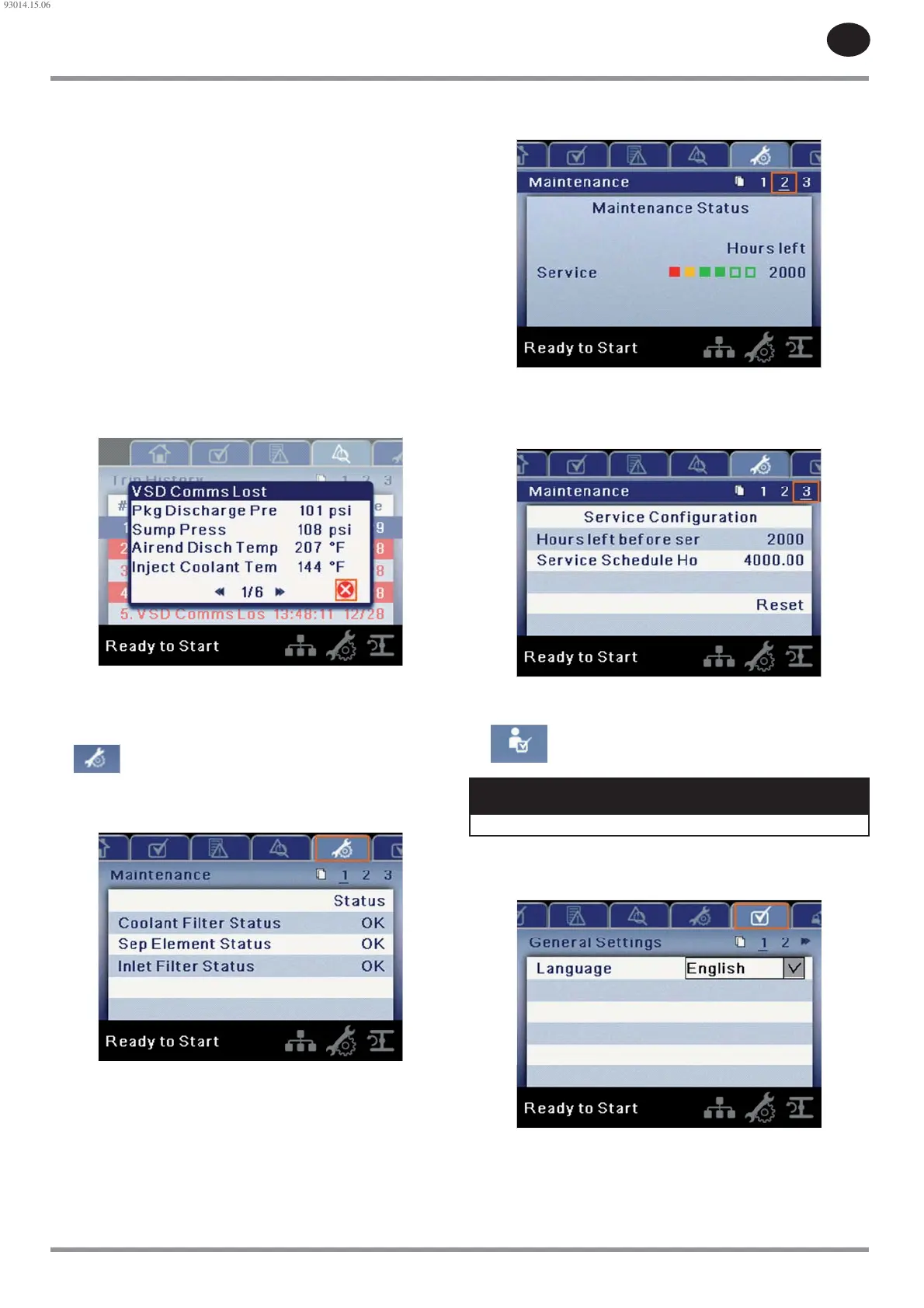

Figure 45 : Trip History Dialog
While the dialog box is active, press the left and right keys to scroll through
the displayed data. The name of the trip will always be shown in the title bar
of the dialog box. Press enter when nished viewing the data to return to the
trip history screen.
Maintenance folder
Page 1: Filter Status
Figure 46 : Filter Status
This page displays the following:
Coolant Filter Status
Separator Element Status
Inlet Filter Status
•
•
•
•
•
•
•
•
•
•
•
•
Page 2: Maintenance Status
Figure 47 : Maintenance Status
This page displays the time until the compressor should be serviced.
Page 3: Maintenance Con guration
Figure 48 : Maintenance Con guration
This page allows the user to set the service interval and to reset the counter
after the service has been performed.
General settings folder
NOTICE
All parameters in this folder are adjustable.
Page 1: Language Selection
Figure 49 : Language Selection
