80447162 Rev B EN-29
EN

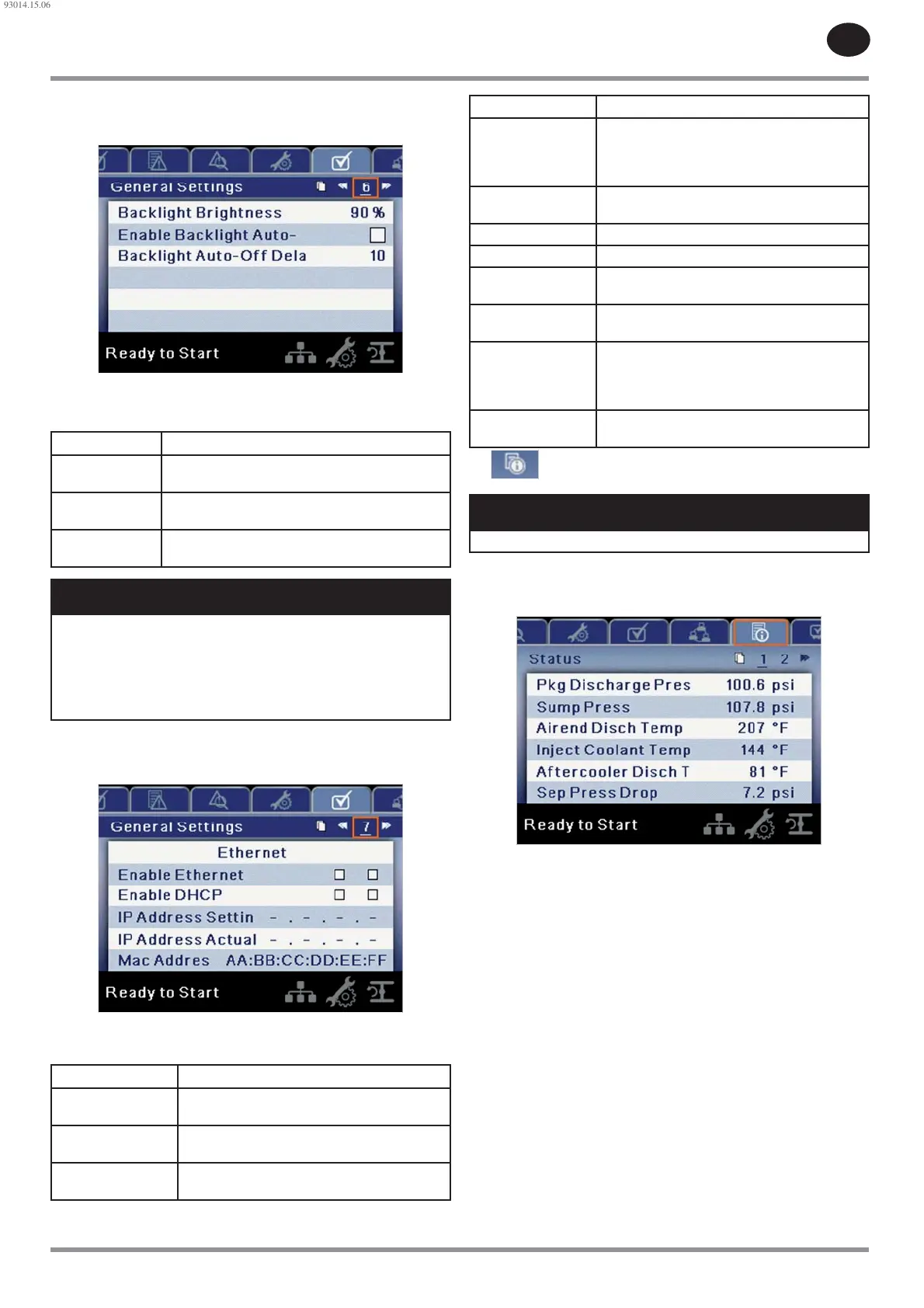

Page 6 : Backlight Settings
Figure 53 : Backlight Settings
The following settings are displayed in this section:
Table 23 : Backlight Settings
Display Text Description
Backlight
Brightness
Adjusts the brightness of the display.
Enable Backlight
Auto-O
Enables the controller to shut-o the backlight if
there is no user activity for the delay time shown.
Backlight Auto-O
Delay Time
Determines how many seconds of inactivity it will
take before the controller will shut-o the backlight.
NOTICE
The backlight will be switched ON whenever any of the controller’s
keys are pressed.
The START, STOP, LOAD, UNLOAD, RESET, and ACKNOWLEDGE keys on
the controller remain functional while the backlight is switched OFF. It
is recommended to press the ENTER key or one of the navigation keys
in order to switch the backlight ON.
Pages 7-8: Ethernet Settings
Figure 54 : Ethernet Settings
The following settings are displayed in this section:
Table 24 : Ethernet Settings
Display Text Description
Enable Ethernet Allow connection by users to utilize the network
enabled functionality of the controller.
Enable DHCP Allow the controller to automatically receive an IP
address from the Local Area Network (LAN).
IP Address Setting When DHCP is not enabled, this setpoint sets the
IP address of the controller.
Display Text Description
IP Address Actual This will match the IP address setting when DHCP
is not enabled. If DHCP is enabled this will display
the address assigned to the controller by the
DHCP server.
MAC Address This is the unique hardware MAC address for the
controller. This can not be changed.
Subnet Mask Setting Setpoint for the subnet mask.
Subnet Mask Actual Current reading/setting for the subnet mask.
Default Gateway
Setting
Setpoint for the default gateway.
Default Gateway
Actual
Current reading/setting for the default gateway.
Accept After editing the desired setpoint navigate to the
accept setting and press enter in order for the
values in the setting variables to be con rmed by
the controller.
Cancel Discard any changes made to the Ethernet
settings.
Status folder
NOTICE
All information on these pages is read only.
Pages 1 -2: Analog Inputs
Figure 55 : Analog Inputs
The following inputs are displayed in this section:
Package Discharge Pressure
Sump Pressure
Airend Discharge Temperature
Injected Coolant Temperature
After-cooler Discharge Temperature
Separator Pressure Drop
Coolant Filter Pressure Drop
Inlet Vacuum
After-cooler Discharge Pressure (integrated dryer compressors only)
Remote Pressure (optional)
Coolant Filter Inlet Pressure
Coolant Filter Outlet Pressure
Interstage Pressure (2-stage compressors only)
Evaporator
Condenser
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
93014.15.06
