26 - 1
Section B Body & Framework
9803/3280
Section B
26 - 1
Issue 1
Service Procedures
Sideshift
- Hydraclamp Clearance Setting
If the kingpost clearance D is not set correctly leaks may
occur or the seal could become dislodged, use the
procedure below to set the clearance.
1 Park the machine on firm level ground, engage the
parking brake and set the transmission to neutral.
Lower the loader arms to the ground.
2 Select the carriage clamps to lock.

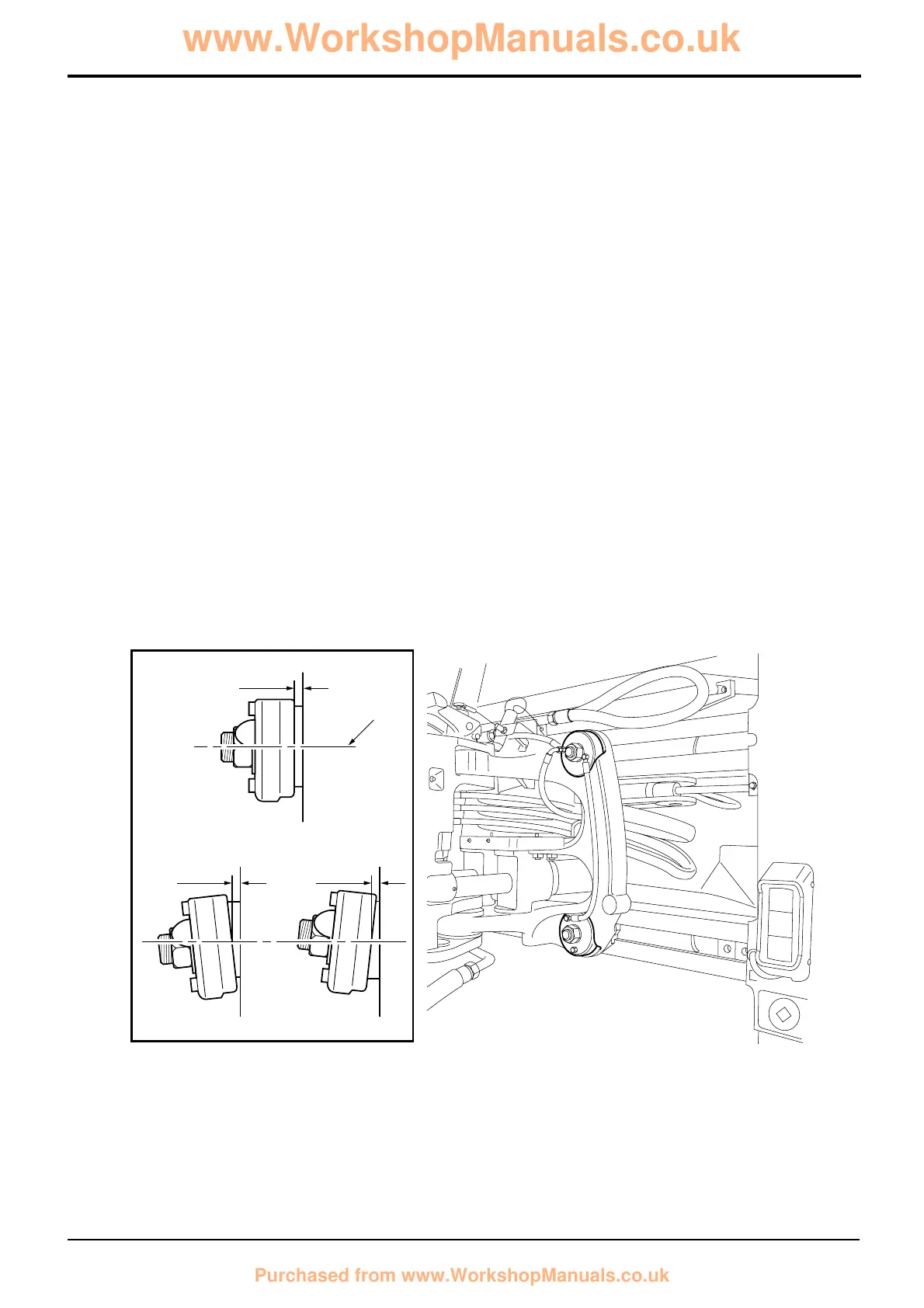

3 Measure all four clamps clearance, all measurements
should be taken on the centre line A to allow for
twisting of the clamp pot as shown at B and C:
Manual 3 - 5 mm (0.11 - 0.19 in)
Power Sideshift 3 - 5 mm (0.11 - 0.19 in)
4 Release the clamps and tighten/loosen nut 1 as
required, recheck measurement. When correct bend
tab to lock nut.
A
B
C
D
D
D
338630
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk

jcb 215 Specifications

General

Engine Power	74 hp
Rated Operating Capacity	2, 100 lbs
Lift Path	Vertical
Tipping Load	4, 200 lbs
Net Engine Power	74 hp
Width over Tires	1, 800 mm
Height to Top of Cab	2, 300 mm
Hinge Pin Height	2, 800 mm
Travel Speed	11 km/h
Travel Speed (High)	11 km/h
