jcb 215 Service Manual

94 - 8
Section F Transmission
9803/3280
Section F
94 - 8
Issue 1
Rear Axle - SD80, PD70
Meshing of the gears should be checked by marking three of
the pinion teeth with engineers marking compound and
rotating the pinion.
The marking will then be transferred to the crown wheel
teeth.

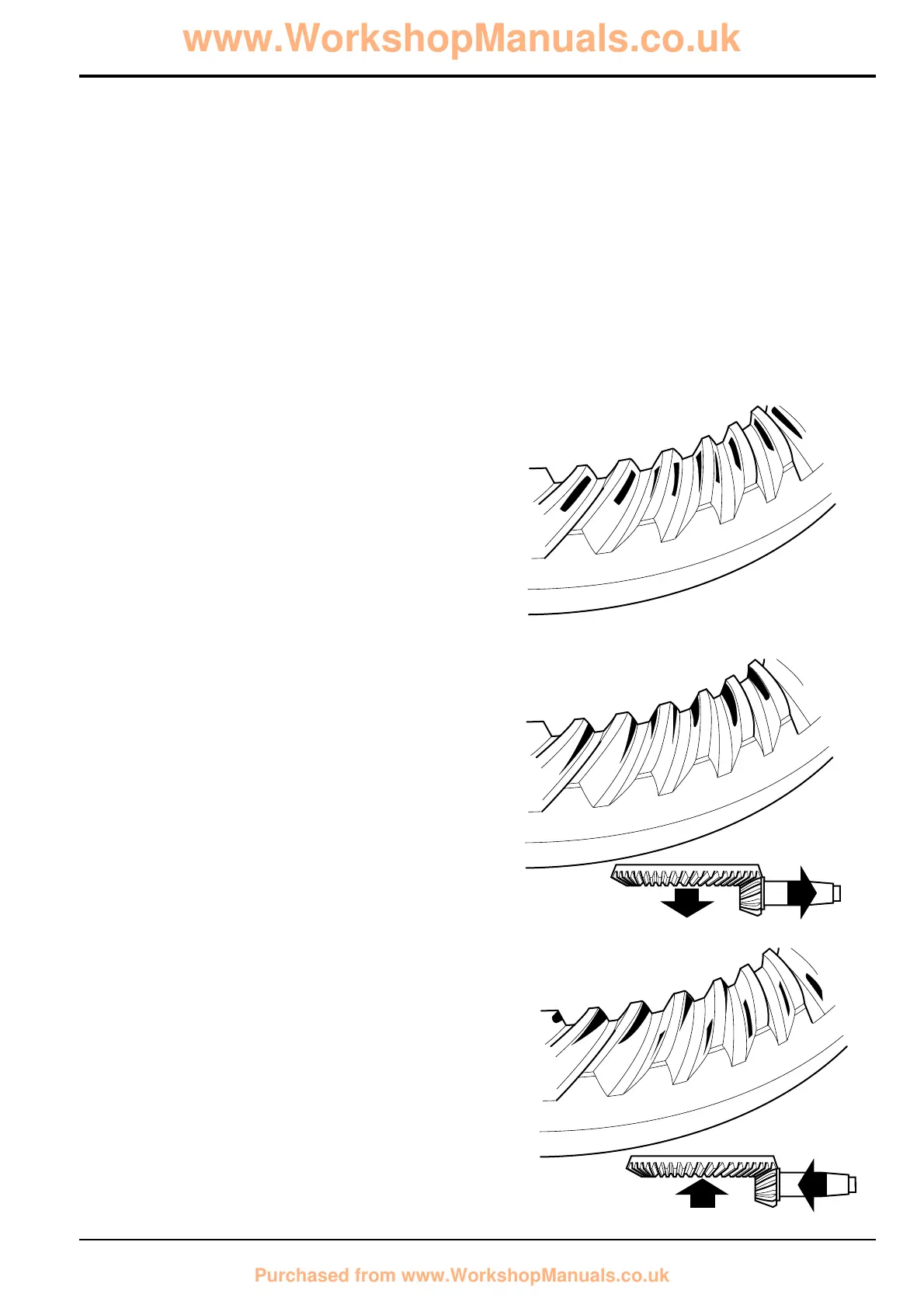

Crownwheel and Pinion Meshing
Correct tooth marking.
Pinion too deeply in mesh.
Decrease the shim thickness between the pinion inner
bearing cup and the axle casing. Move the crown wheel
towards the pinion to correct the backlash.
Pinion too far out of mesh.
Increase the shim thickness between the pinion inner
bearing cup and the axle casing. Move the crown wheel
away from the pinion to correct the backlash.
A386950
A386940
A386960
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk

jcb 215 Specifications

General

Engine Power	74 hp
Rated Operating Capacity	2, 100 lbs
Lift Path	Vertical
Tipping Load	4, 200 lbs
Net Engine Power	74 hp
Width over Tires	1, 800 mm
Height to Top of Cab	2, 300 mm
Hinge Pin Height	2, 800 mm
Travel Speed	11 km/h
Travel Speed (High)	11 km/h
