jcb 215 Service Manual

9 - 5
Extending Dipper
! CAUTION
Waxoyl contains turpentine substitute, which is
inflammable. Keep flames away when applying Waxoyl.
Waxoyl can take a few weeks to dry completely. Keep
flames away during the drying period.
Do not weld near the affected area during the drying
period. Take the same precautions as for oil to keep
Waxoyl off your skin. Do not breathe the fumes. Apply in
a well-ventilated area.
5-3-1-9

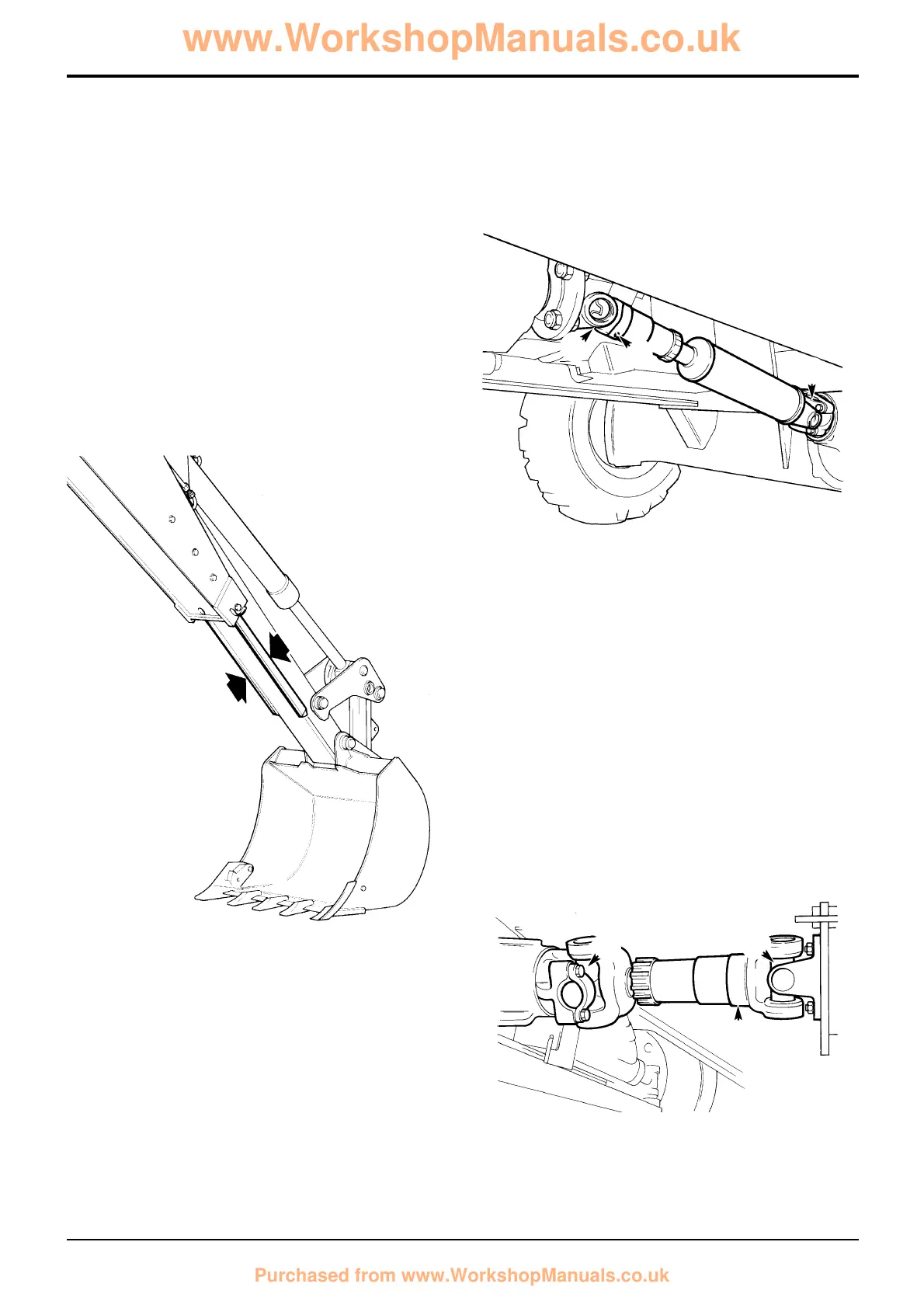

Extend the dipper. Coat the runners with Waxoyl as shown.
Driveshafts
Front Driveshaft
3 Grease Points
Section 3 Routine Maintenance
9803/3280
Section 3
9 - 5
Issue 1
Greasing
Rear Driveshaft
3 Grease Points
S157500
3
2
1
S157511
1
2
3
S148000
