Section D Controls

9803/3280

Section D

37 - 5

Issue 1

Precision Control (Servo)

YES

Is the relevant wiring damaged?

START

Check for damage and carry out

continuity checks. Repair as

applicable.

Test and renew switch if applicable.

Does the system operate with the

operator seat set in the rear facing

position?

A402390

See Electrical Connections.

See Fault Finding Chart A - No Servo

Controls (system fails to operate)

See Electrical Switches, Joystick

Mounted Microswitches - Removal

and Replacement.

Is the mode switch functioning

correctly?

Fault Finding

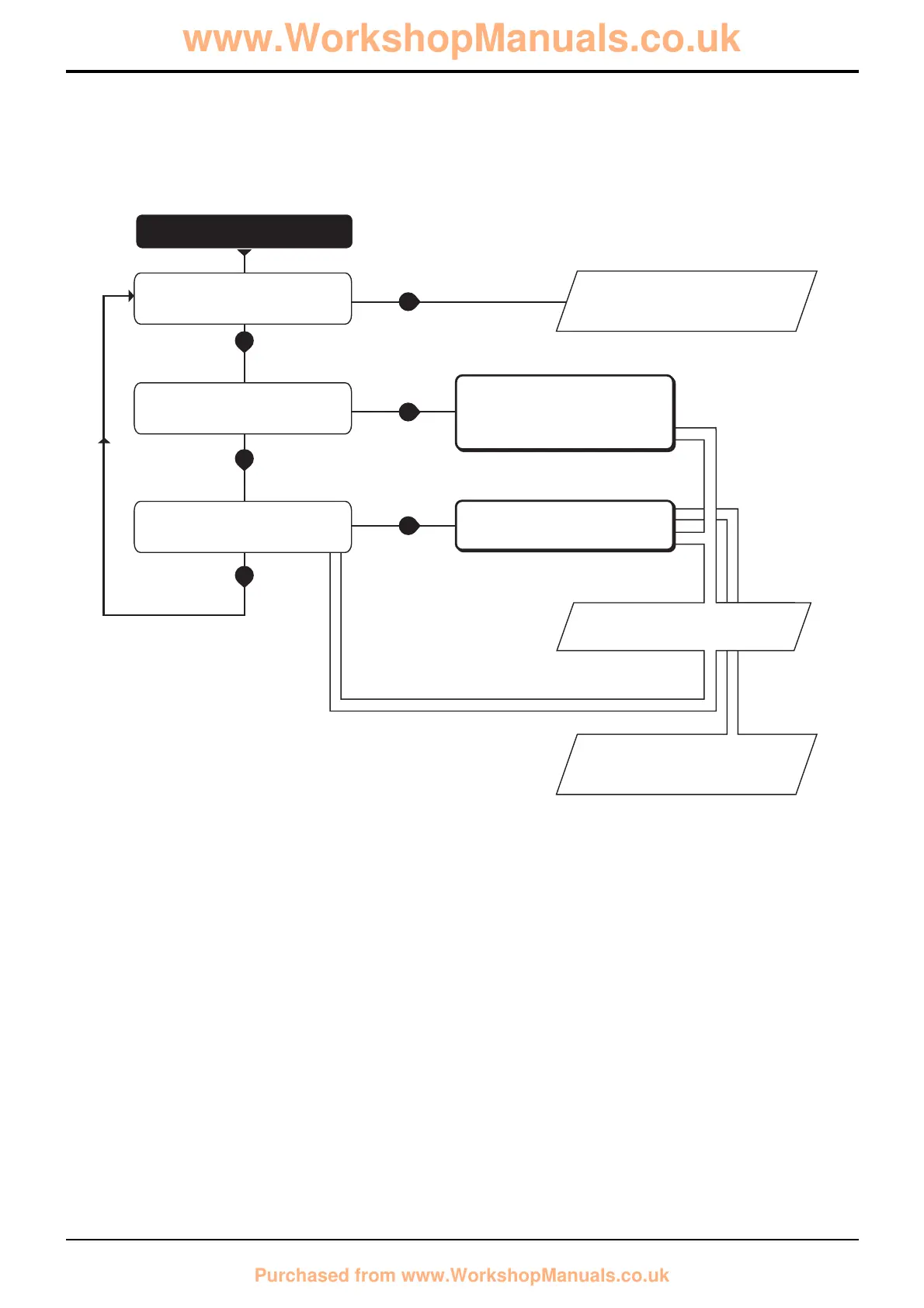

Chart D - System Fails to Operate when the ‘Mode Switch’ is Activated (operator seat facing forward)
