20-5

Section G Brakes

9803/3280

Section G

20-5

Issue 1

Service Procedures

Parking Brake - Switch Adjustment

1 Select the starter key switch to the ON position, do not

start the engine.

2 Select either forward or reverse.

3 Raise the handbrake to the ON position.

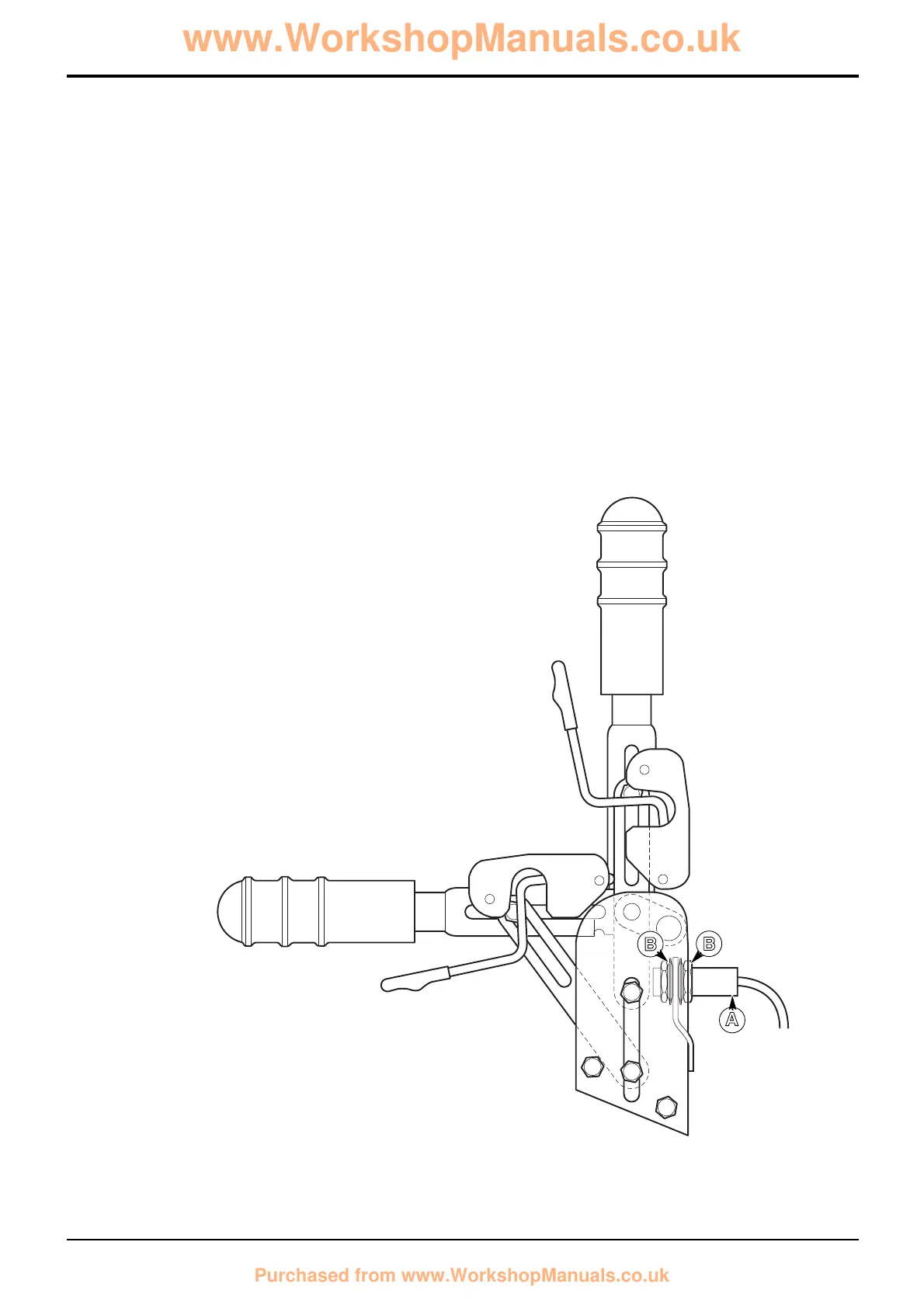

4 Adjust locknuts B and use feeler gauges to set the

proximity switch A so that there is clearance of 2mm

MIN - 3mm MAX between the end of the switch and the

handbrake lever. The light emitting diode (L.E.D.) on the

switch should be illuminated and the audible alarm

should sound.

5 Secure the switch in position by tightening locknuts B.

6 Release the parking brake and the audible alarm should

cease.

For adjustment of the Parking Brake, refer to Parking Brake

- Adjustment.

Torque Settings

Item Nm kgf m lbf ft

B 29 2.95 21

A396440
