jcb 215 Service Manual

4 - 17
892/01083 Powershift - Assembly tool, transfer gear.
892/01084 Powershift - Transfer gear, bearing assembly.
892/01085 Powershift - Seal fitting tool
Powershift - Support plates, for use with transmission jack,
Manufacture locally, for details see Section F, Service
Tools.
892/01082 - Powershift - Assembly Cradle, for details see
Section F, Service Tools.
Powershift - Gearbox hydraulic pump removal tools, allow
pump to be removed with torque converter housing fitted to
gearbox. Manufacture locally, for details see Section F,
Service Tools.
Section 1 General Information
9803/3280
Section 1
4 - 17
Issue 3*
Service Tools (cont'd)
Section F - Transmission
823/10420 Thrust Washer Kit - Powershift
gearbox - Layshaft clutch
Comprises of:
Washer thickness mm
823/10421 4.3
823/10422 4.4
823/10423 4.5
823/10424 4.6
823/10425 4.7
823/10426 4.8
*
892/01096 Speed Sensor Test Harness -
Powershift Gearbox
*

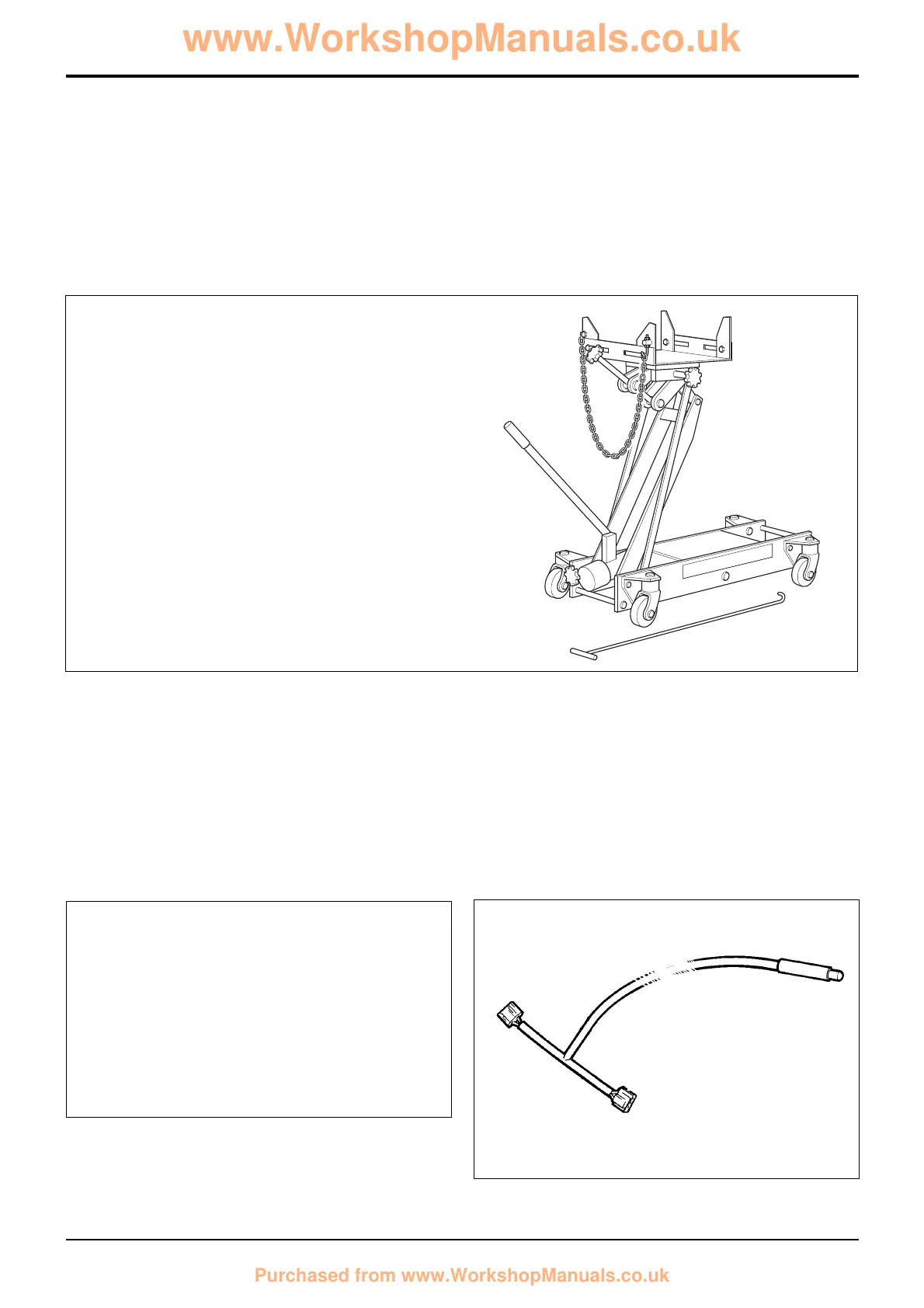

892/01094 Transmission Jack
When removing the Powershift gearbox use of a special
transmission jack is strongly recommended. This jack
can also be used when removing Synchro Shuttle
gearboxes.
Note that the jack must be used with special support
plates, see below.
