26 - 3
Removal
1 Park the machine on firm level ground, engage the
parking brake and set the transmission to neutral.
Lower the loader arms to the ground.
2 Position the carriage centrally and rest the bucket on
the ground, remove the starter key.
3 Undo and remove nuts B.
4 Remove split pins D and pin E.
5 Withdraw chains from the machine.
Assembly
1 Thread the chains around the pulley and secure to the
carriage with pin E, fit new split pins D.
2 Connect chain adjusters, tension chains as required,
see Check and Adjust.
Power Sideshift - Chain Adjustment
The chain tension should be checked at the initial 100 hours
service and every 500 hours.
Check and Adjust
1 Park the machine on firm level ground, engage the
parking brake and set the transmission to neutral.
Lower the loader arms to the ground.
2 Position the carriage centrally and rest the bucket on
the ground, remove the starter key.

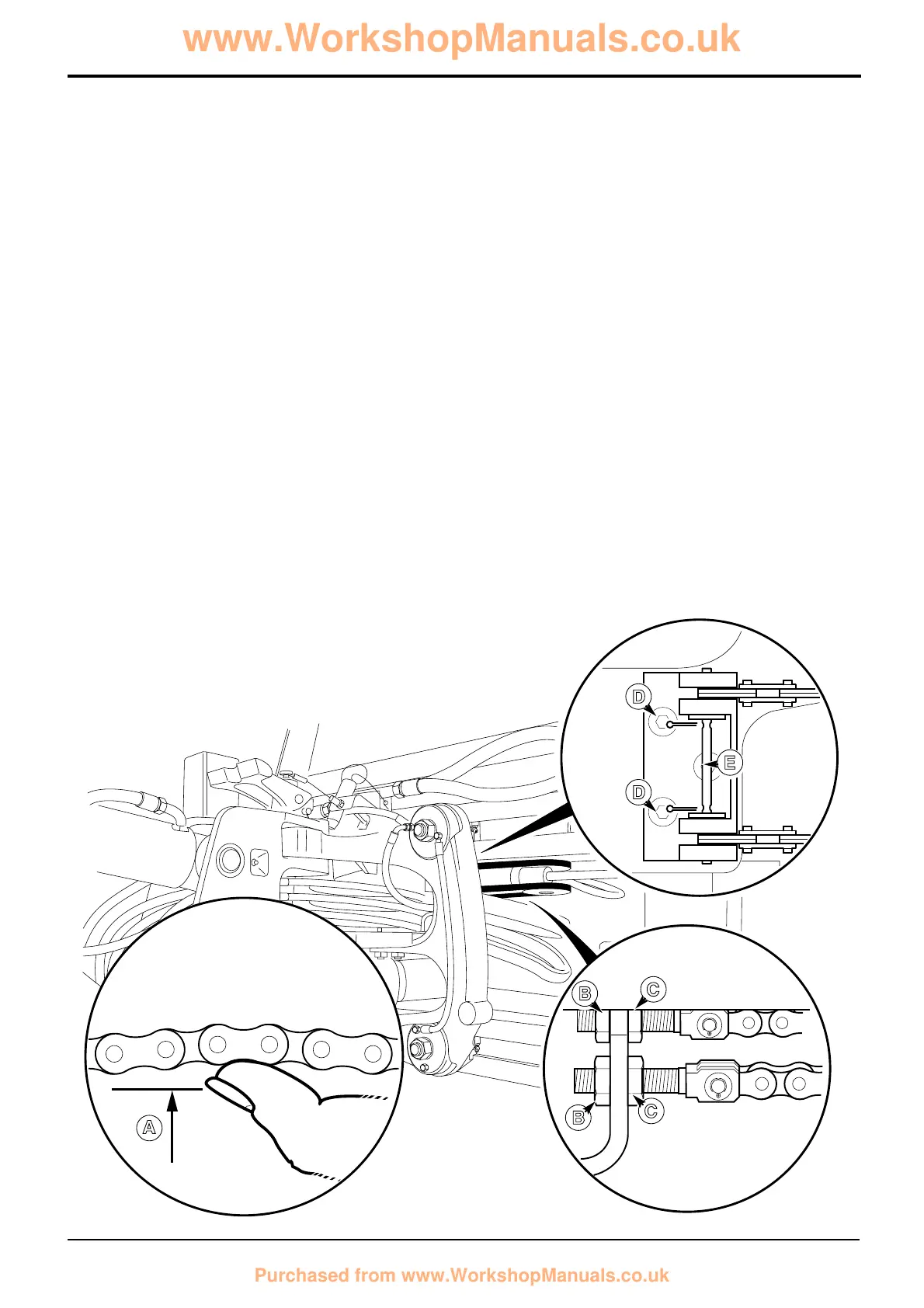

3 Check the chain tension which should be 5 to 10mm
(0.19 to 0.39in) deflection A at the mid point. The
tension should be equal for all chains.
4 If adjustment is required, slacken locknuts C and adjust
on nuts B as required, tighten locknuts C on
completion.
5 Repeat steps 3 and 4 for the opposite pair of chains.
Note: When there is no thread left for adjustment fit new
chains.
6 Operate the carriage side to side several times and
recheck the deflection.
Section B Body & Framework
9803/3280
Section B
26 - 3
Issue 1
Service Procedures
A326830
B
B
A
C
C
D
D
E
