jcb 215 Service Manual

3 - 30
4CX, 4CX Super Machines
Hand Held Tools Option
Component Key
P Pump Variable Flow
T Hydraulic Tank
X Main Circuit Connection
1 Pressure Flow Regulator
2 High Pressure Flow Spool
3 Relief Valve (2000 lb/in
2
- 138 bar - 146 kgf/cm
2
)
4 Load Sense Solenoid
5 Hand Held Tool
6 Shuttle Valve
9 Excavator Valve Block
25 Loader Valve Block
Section E
Hydraulics
9803/3280
Section E
3 - 30
Issue 1

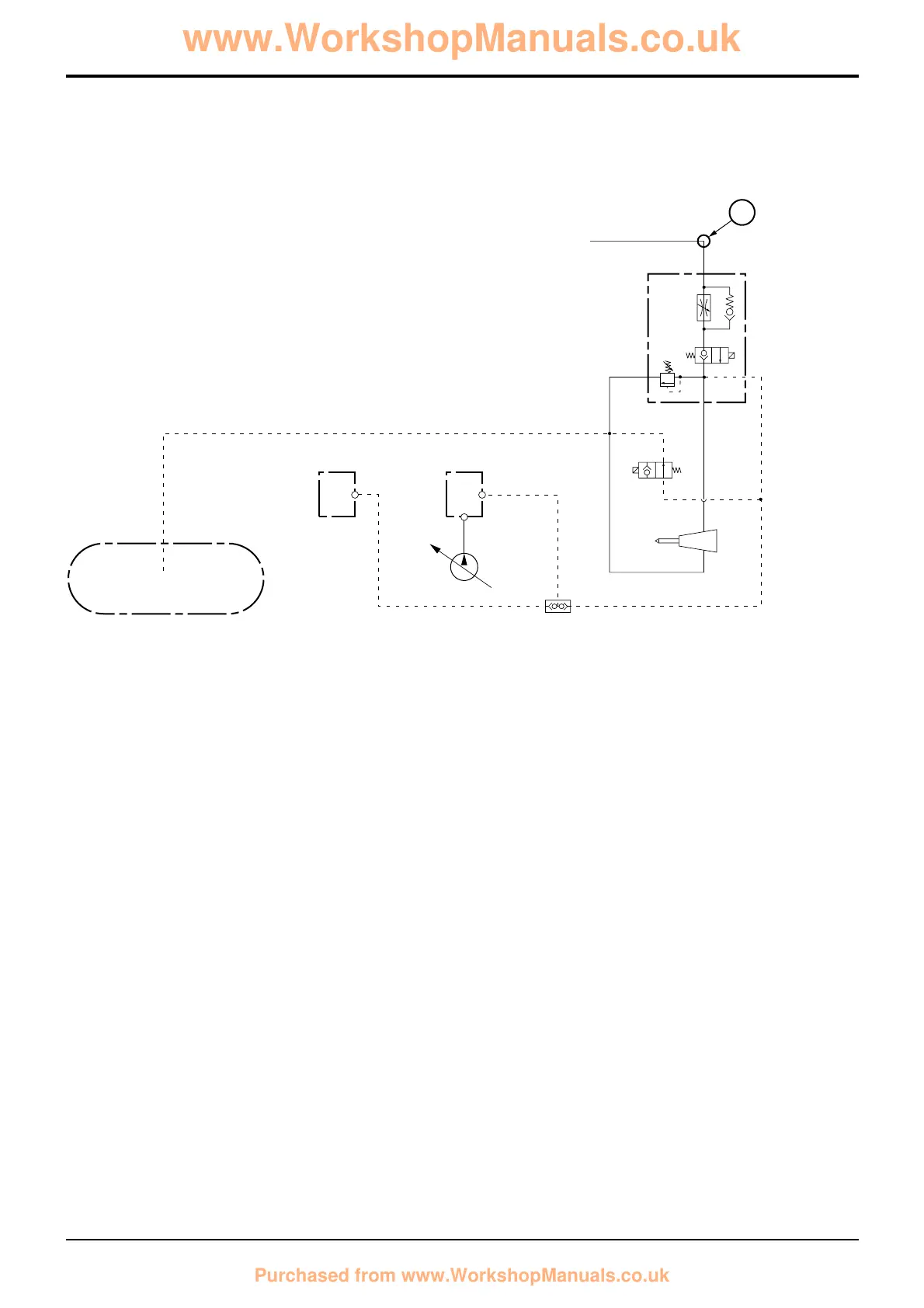

Circuit Schematics - Variable Flow
X
925
T
P
5
4
3
1
LS LS
LS
2
6
A322650
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk

jcb 215 Specifications

General

Engine Power	74 hp
Rated Operating Capacity	2, 100 lbs
Lift Path	Vertical
Tipping Load	4, 200 lbs
Net Engine Power	74 hp
Width over Tires	1, 800 mm
Height to Top of Cab	2, 300 mm
Hinge Pin Height	2, 800 mm
Travel Speed	11 km/h
Travel Speed (High)	11 km/h
