jcb 215 Service Manual

9 - 4
Section 3 Routine Maintenance
9803/3280
Section 3
9 - 4
Issue 1
Greasing

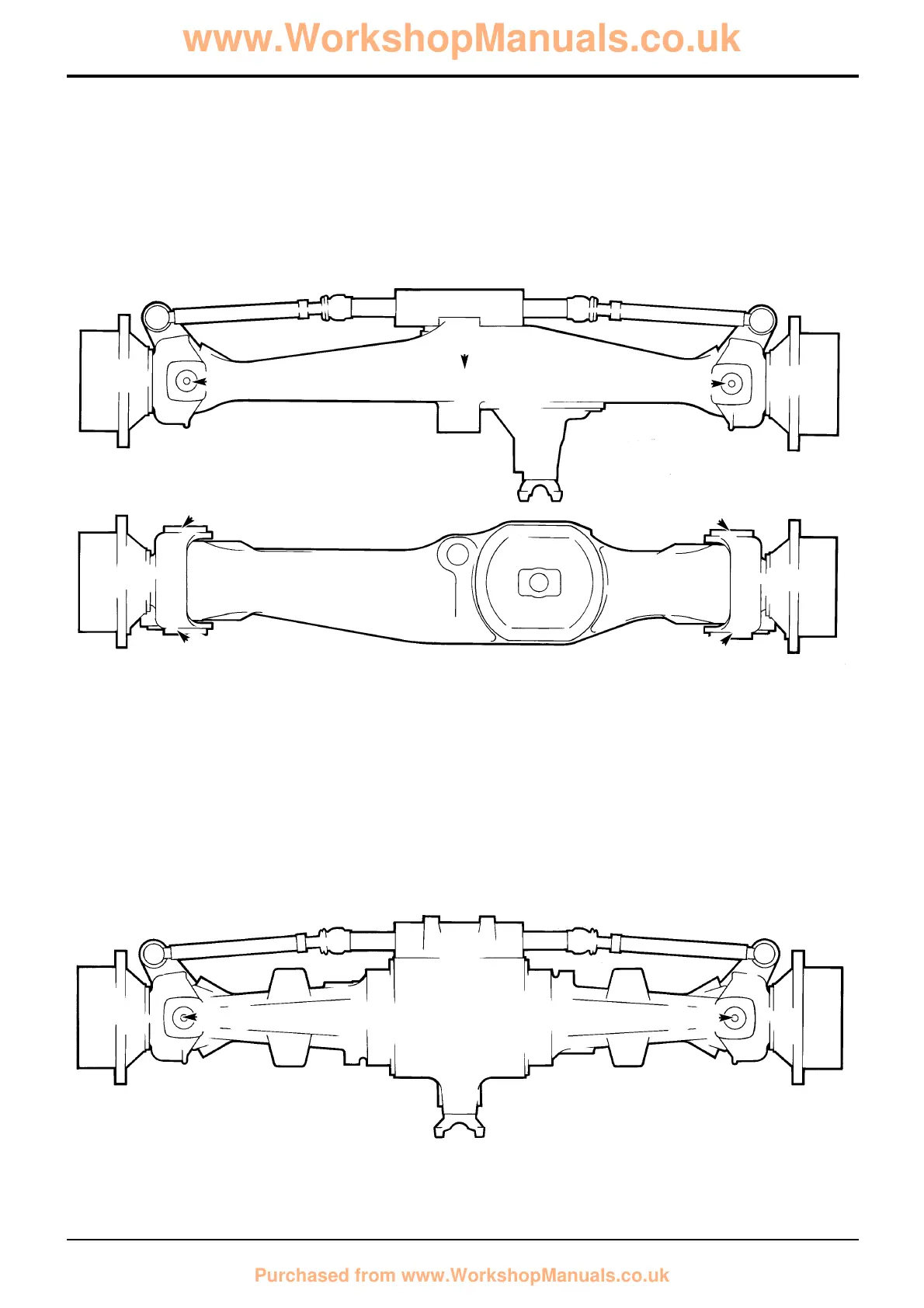

Front Axle (All Wheel Steer Machines)
5 Grease Points
Rear Axle (All Wheel Steer Machines)
4 Grease Points
Note: Grease point 5 is a remote grease point mounted on
the side of the front nose (near the left front wheel).
1
2
4
3
1
2
4
3
5
1
4
2
3
S260220
S260230
