Electrics Electrics
Harness Data
Harness Data
Section C Section C
9803/3280 Issue 1
151 - 3
151 - 3
A721/10937_1

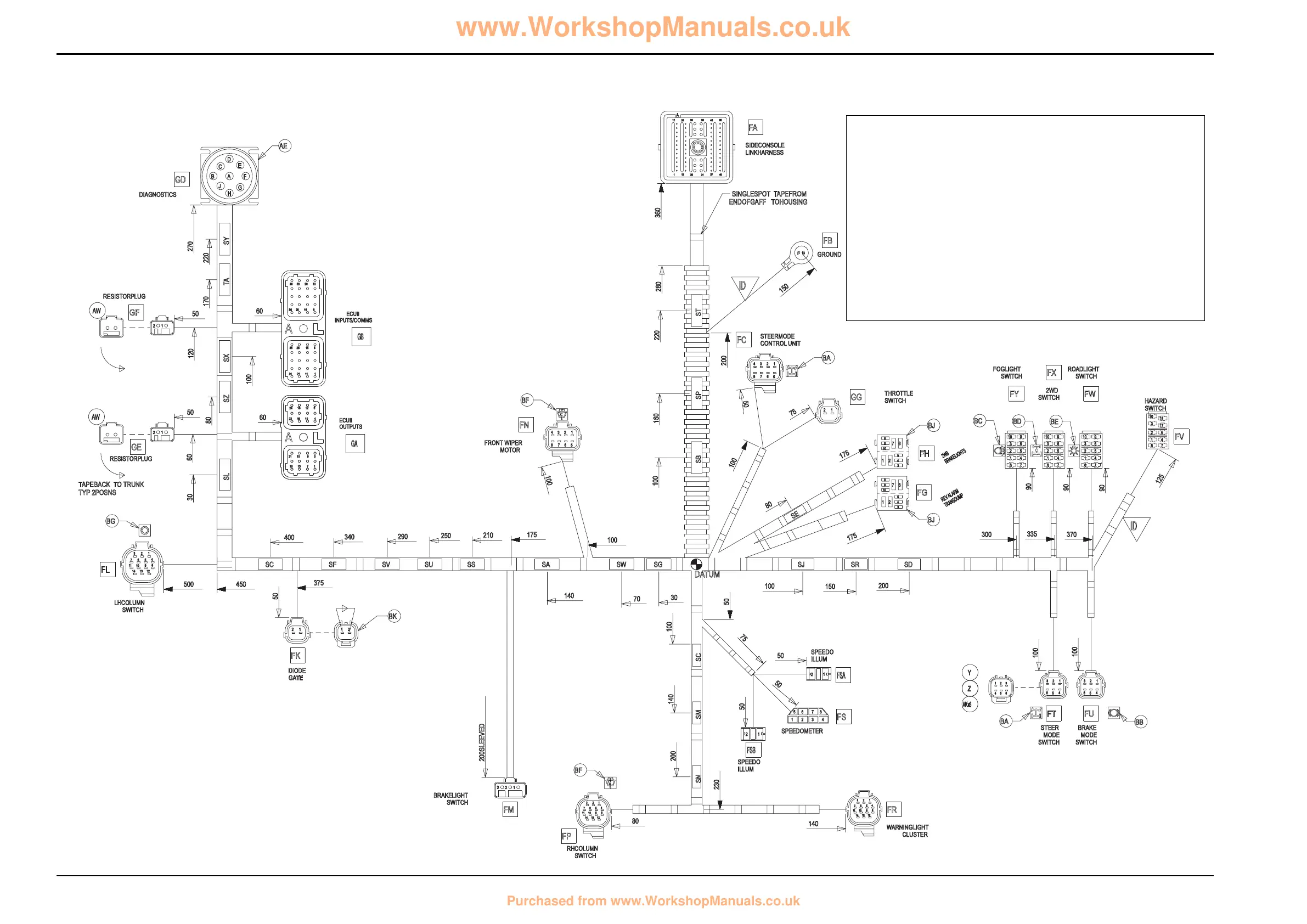

Harness Drawing - Front Console, 6 speed Powershift (ShiftMaster) page 1 of 2 - CAD 721/10937 Issue 1
Key to Connectors:
FA Bulkhead Plug
FB Front Cab Earth
FC Steer Mode Unit
FG Transmission Dump
Reverse Alarm
FH Brake Lights
FK Diodes
FL Column Switch - Powershift
FM Footbrake Switch
FN Wiper Motor
FP Column Switch - RH
FR Front Warning Lights
FS Speedometer
FSA Speedometer Illumination
FSB Speedometer Illumination
FT Steer Mode Switch
FU Brake Mode Switch
FV Hazard Switch
FW Main Lights
FX 2/4WD Select
FY Fog Light Switch
GA Electronic Control Unit Plug
GB Electronic Control Unit Plug
GD Diagnostics Plug
GE Resistor Plug
GF Resistor Plug
GG Throttle Plug
