jcb 215 Service Manual

Hexagon Spanners for Ram Pistons and End Caps
992/09300 55mm A/F
992/09400 65mm A/F
992/09500 75mm A/F
992/09600 85mm A/F
992/09700 95mm A/F
992/09900 115mm A/F
992/10000 125mm A/F
4 - 8
Section 1 General Information
9803/3280
Section 1
4 - 8
Issue 1

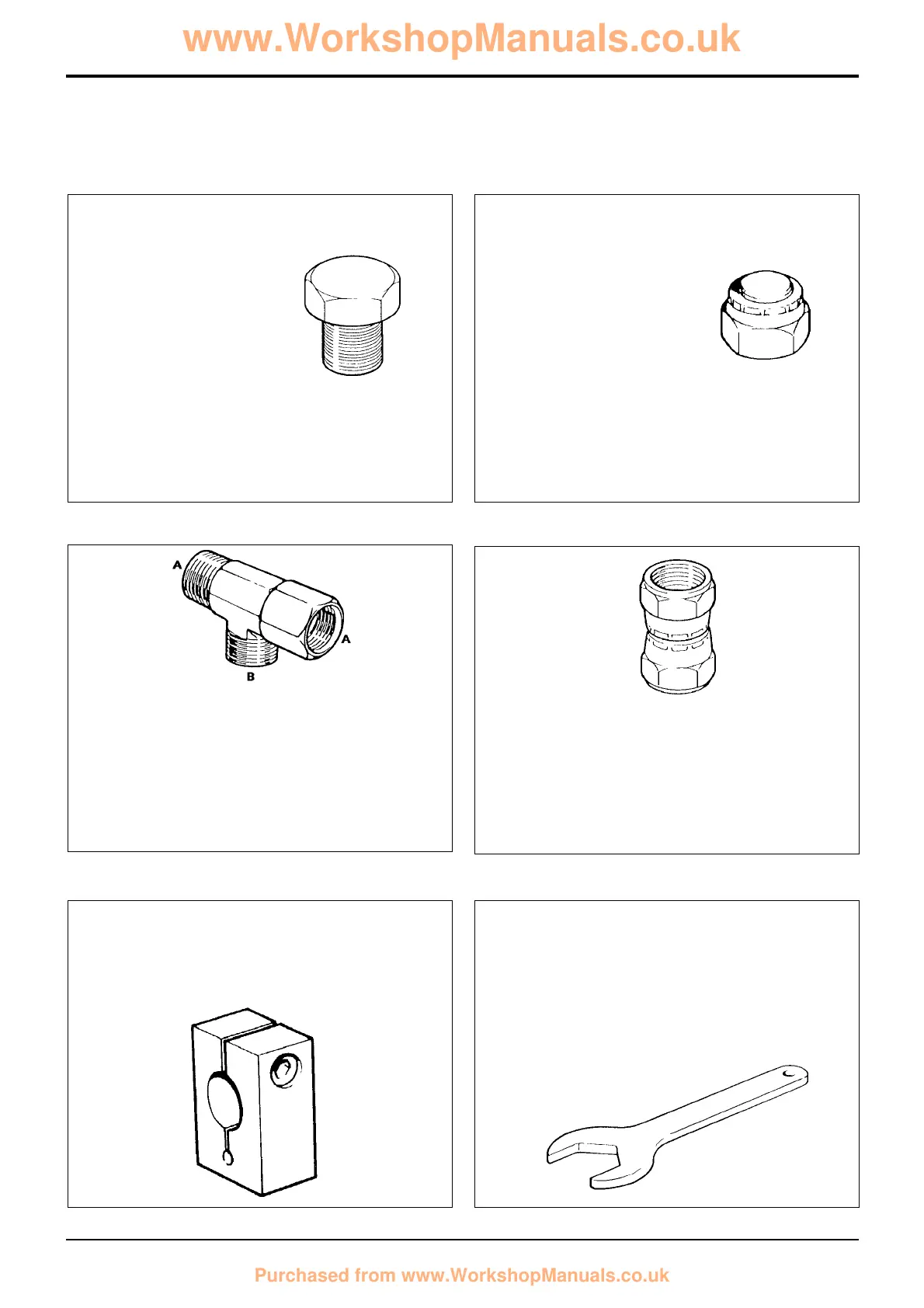

Service Tools (cont'd)
Section E - Hydraulics
Female Cone Blanking Plug
892/00055 1/4 in. BSP
892/00056 3/8 in. BSP
892/00057 1/2 in. BSP
892/00058 5/8 in. BSP
892/00059 3/4 in. BSP
892/00060 1 in. BSP
S193870
Male Cone Blanking Cap
816/00294 1/4 in. BSP
816/00189 3/8 in. BSP
816/00190 1/2 in. BSP
816/00197 5/8 in. BSP
816/00196 3/4 in. BSP
816/00193 1 in. BSP
S193880
892/00047 3/8 in. BSP (A) x 1/4 in. BSP (B)
892/00048 1/2 in. BSP (A) x 1/4 in. BSP (B)
892/00049 5/8 in. BSP (A) x 1/4 in. BSP (B)
816/50043 3/4 in. BSP (A) x 1/4 in. BSP (B)
892/00051 1 in. BSP (A) x 1/4 in. BSP (B)
816/50005 1/2 in. BSP (A) x 1/2 in. BSP (B)
816/60096 3/4 in. BSP (A) x 3/4 in. BSP (B)
816/00017 1 in. BSP (A) x 1 in. BSP (B)
S193890
Female Connectors
892/00074 3/8 in. BSP x 3/8 in. BSP
892/00075 1/2 in. BSP x 1/2 in. BSP
892/00076 5/8 in. BSP x 5/8 in. BSP
892/00077 3/4 in. BSP x 3/4 in. BSP
S193900
992/09100 Excavator Spool Clamp
892/00011 Spool Clamp
S216210 S193930
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk

jcb 215 Specifications

General

Engine Power	74 hp
Rated Operating Capacity	2, 100 lbs
Lift Path	Vertical
Tipping Load	4, 200 lbs
Net Engine Power	74 hp
Width over Tires	1, 800 mm
Height to Top of Cab	2, 300 mm
Hinge Pin Height	2, 800 mm
Travel Speed	11 km/h
Travel Speed (High)	11 km/h
