Step 4: Start JCB Service Master. And go to the BHL
section.

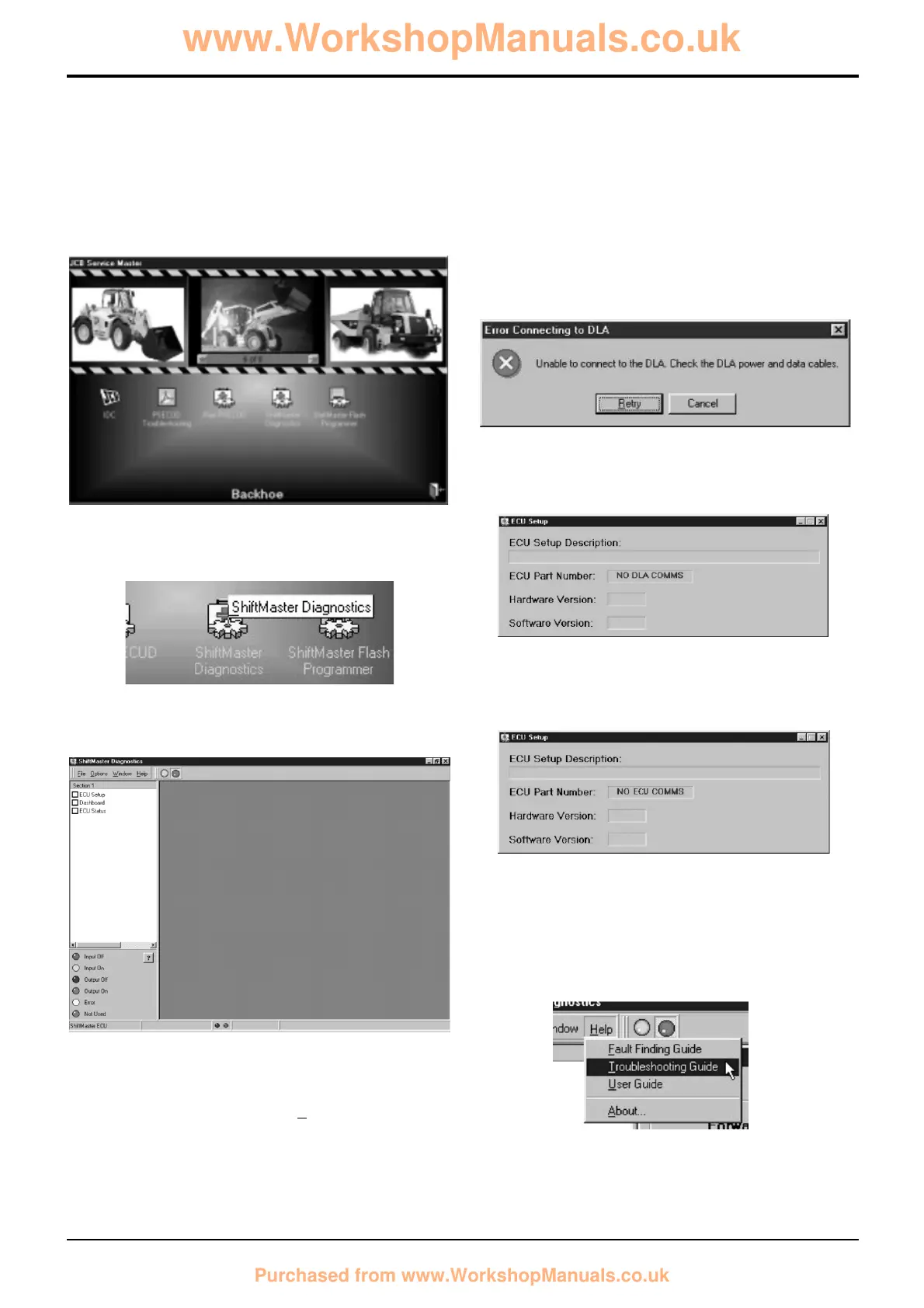

Step 5: Start the diagnostics tool running by clicking on the
ShiftMaster Diagnostics icon.
Step 6: The ShiftMaster Diagnostics tool will then open up
displaying the main window as shown here.
Step 7: To start the ShiftMaster Diagnostics tool
communicating with the ShiftMaster ECU either
click on the Start button or select Start Diagnostics from
the Options Menu. (See later sections for full details.)
Section F Transmission
9803/3280
Section F
69 - 3
Issue 1
Service Procedures
S404210
S404220
S404230
Powershift Gearbox - 6 speed
ShiftMaster Diagnostics - User Guide
Connection Problems:
ShiftMaster Diagnostics will start and can be partly used
even if there are connection problems.
In general, whenever there are problems communicating
with the DLA there will be an error message displayed.
More specifically, if communications can not be established
with the DLA then the ECU Setup Page will display 'NO DLA
COMMS' where the ECU Part Number should be.
If communications can not be established with the ECU then
the ECU Setup Page will display 'NO ECU COMMS' where
the ECU Part Number should be.
Note: The ECU must be powered for communications to
work, i.e. the machine ignition must be ON (but the engine
need not be running).
For further details on possible communication problems
please consult the Troubleshooting Guide included in the
Help menu.
