jcb 215 Service Manual

4 - 10
Section 1 General Information
9803/3280
Section 1
4 - 10
Issue 1
Service Tools (cont'd)
Section F - Transmission

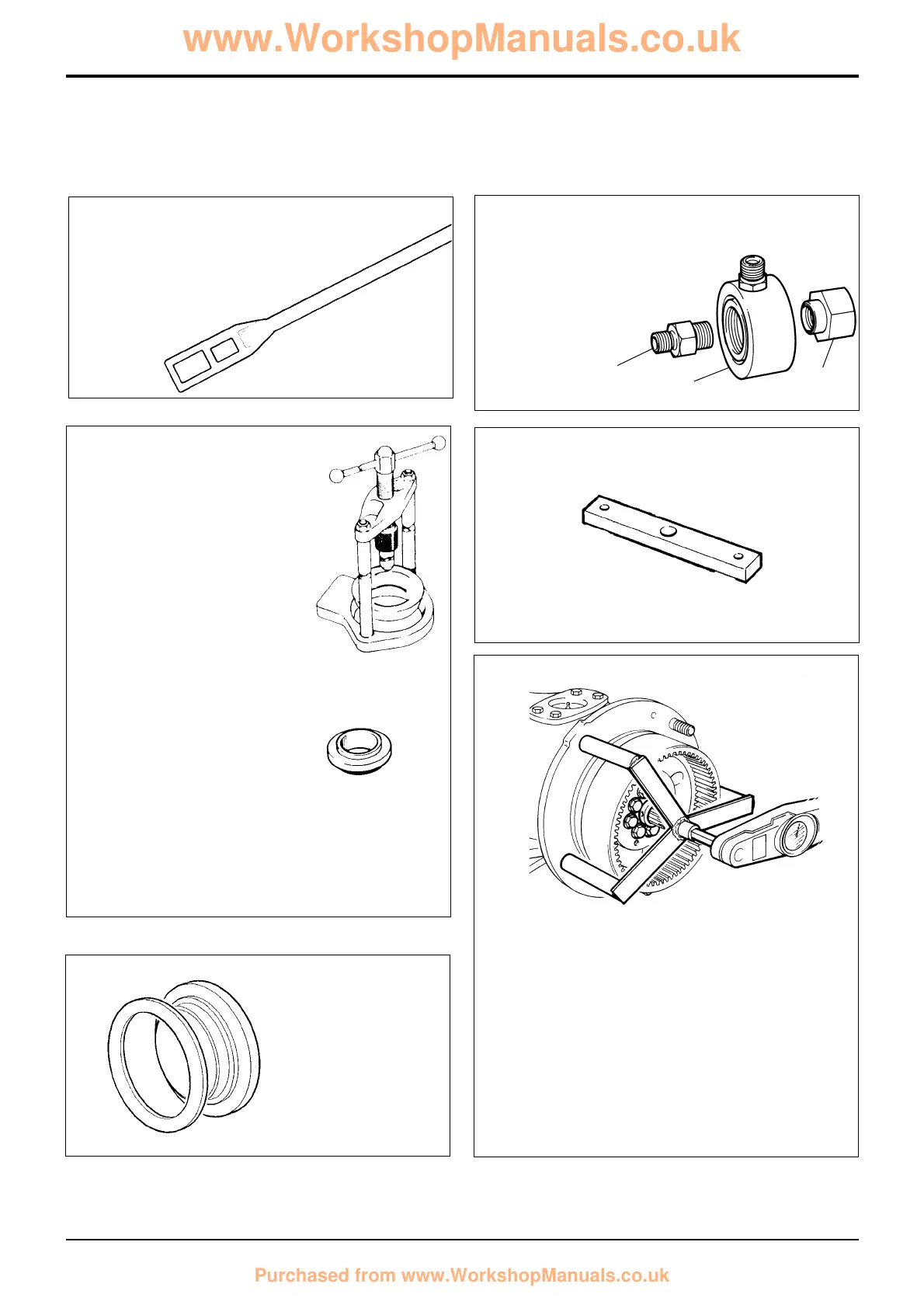

892/00179 Bearing Press (use with
appropriate adapters)
992/07608 Bearing Adapter
992/07609 Bearing Adapter
992/07610 Bearing Adapter
992/07611 Bearing Adapter
992/07612 Bearing Adapter
992/07613 Bearing Adapter
892/00812 Drive Coupling Spanner for front
axle and gearbox yoke
couplings
S196720
S188200
A 892/00920 Flow Test Adapter
B 892/00301 Flow Test Adapter
C 892/00302 Flow Test Adapter
S266880
892/00922 12.2” Torque Converter Alignment Tool
S267260
S188160
A
B
C
Torque Measuring Tool for Wheel Hub Seals
Manufacture locally, procedures in this manual show
checking the wheel hub seal using a rolling force.
However, the torque can be measured using above
locally manufactured tool.
Bearing rolling torque is 12 to 22 Nm (9 to 16 lbf ft)
excluding seal drag. Maximum permissible including
seal drag is 40 Nm (29.5 lbf ft).
S261230
892/00891
Fitting Tool Assembly for
Wheel Hub Seals
S227760
