FX-1/FX-1R Maintenance Manual

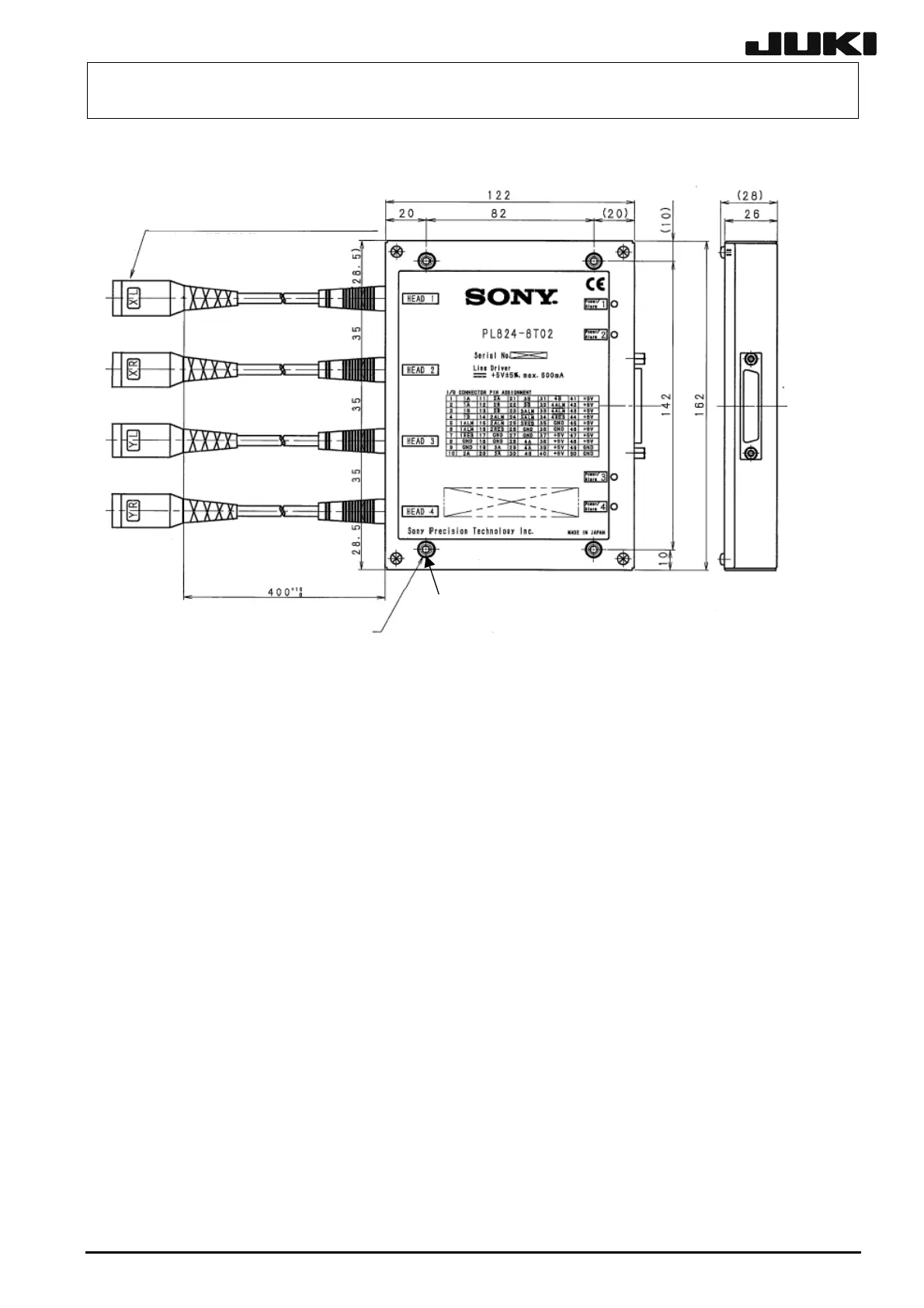

13-5-4. Magnescale detector (Used in FX-1; not used in FX-1R)
Mounting screw at 4 locations
TSC6185-01-1120 8S Connector (Female)
Made by Hosiden.
4-M5 tapping (M4 bolt mounting hole)
The following shows the assignment of each axis.
HEAD1: XL-axis, HEAD2: XR-axis, HEAD3: YBL-axis, HEAD4: YBR-axis
When the LED is lit in green, this shows that the scale input is correct. On the contrary, when the
LED is lit in red, this shows that the scale input is incorrect.
13-24
Rev. 2.00
