FX-1/FX-1R Maintenance Manual
4-4. Replacing the Lens Filter and Light Filter
(1) Detach the light assembly from the head plate using the procedure described in section 4-1,
Replacing the OCC Assembly.
(2) Remove the lens filter and light filter to replace them.
(3) Reassemble the components in the reverse order of disassembly. Mount the light filter so that
the light becomes the brightest in the status as shown in the following top view.
(4) After the filter has been replaced, it is necessary to adjust the OCC light. (See 4.7, List of
Readjustment Items After Replacement.)
4-4
Lens filte
r
Top view
Light filter

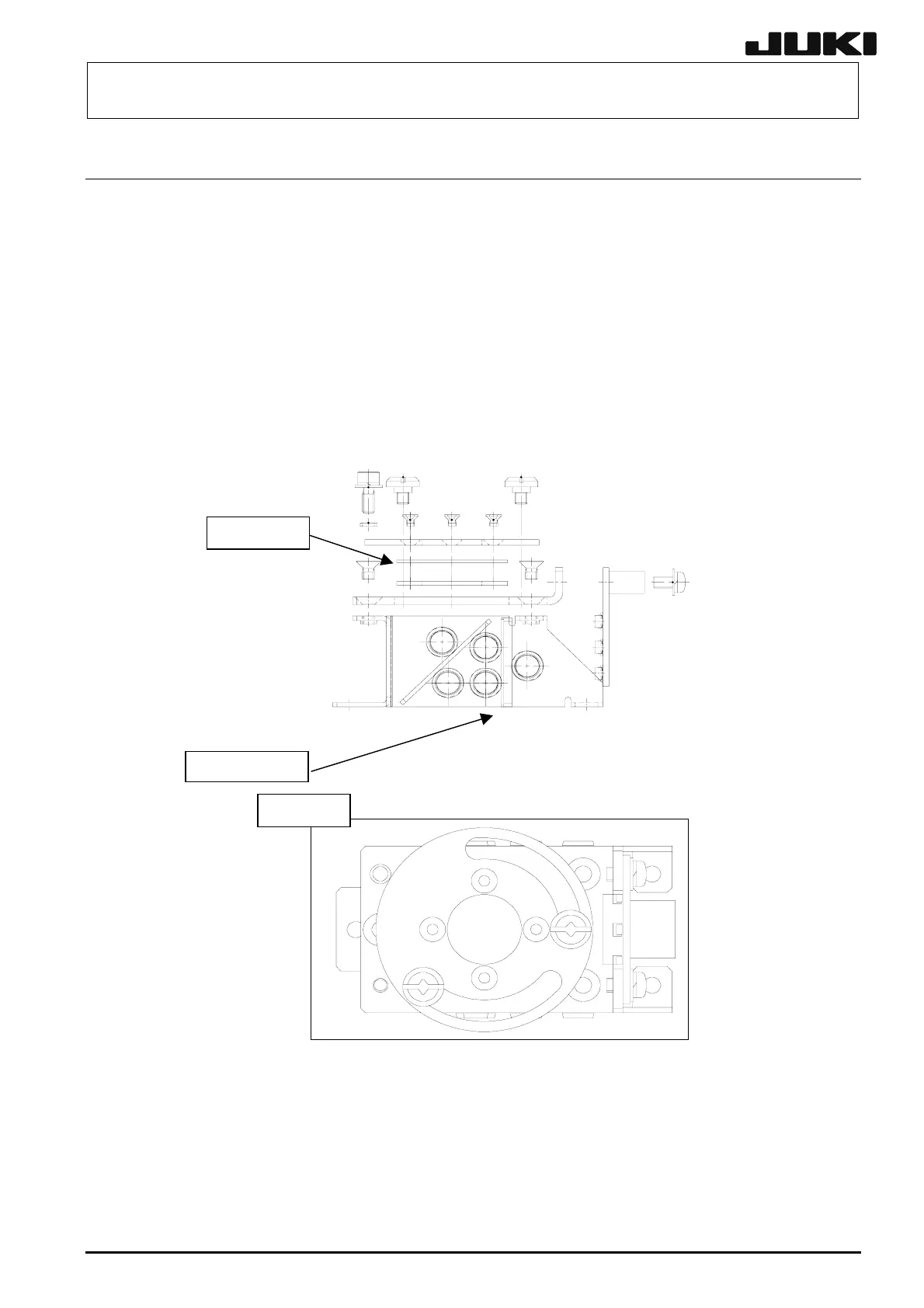

Figure 4-4-1 Replacing the Lens Filter and Light Filter
Rev. 2.00
