FX-1/FX-1R Maintenance Manual
8-3. Adjusting the Speed Controller of the Drive Cylinder
Adjust the up speed of drive cylinders.
(1) Detach the drive cylinders to be adjusted from the driver bracket. (See subsections 8-2 1) to
4).)
(2) Connect the air tube and connector.
(3) Supply the main compressed air and turn on the power.
(4) Using the IO manual control, operate all drive cylinders continuously, the speed controller of
which needs to be adjusted.
(5) Adjust the speed controller of the cylinder to be adjusted visually so that the movement of the
cylinder is the same as that of other cylinders.
(6) Tighten the nut of the speed controller firmly. After the nut has been secured, recheck that the
cylinder functions correctly.
(7) Reassemble the components in the reverse order of disassembly.

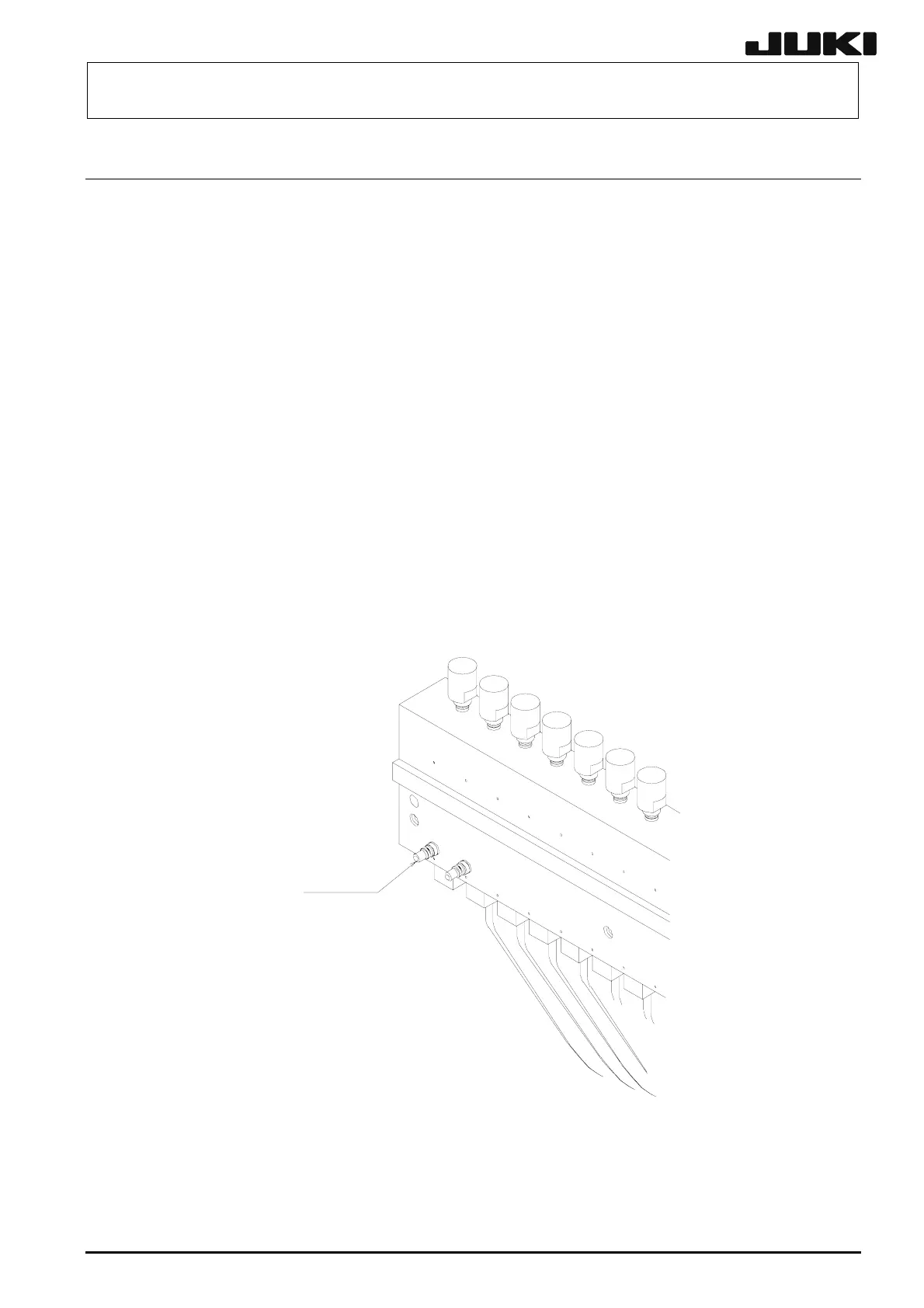

Speed controller
Figure 8-3-1
8-4
Rev. 2.00
