FX-1/FX-1R Maintenance
Manual
5-15.

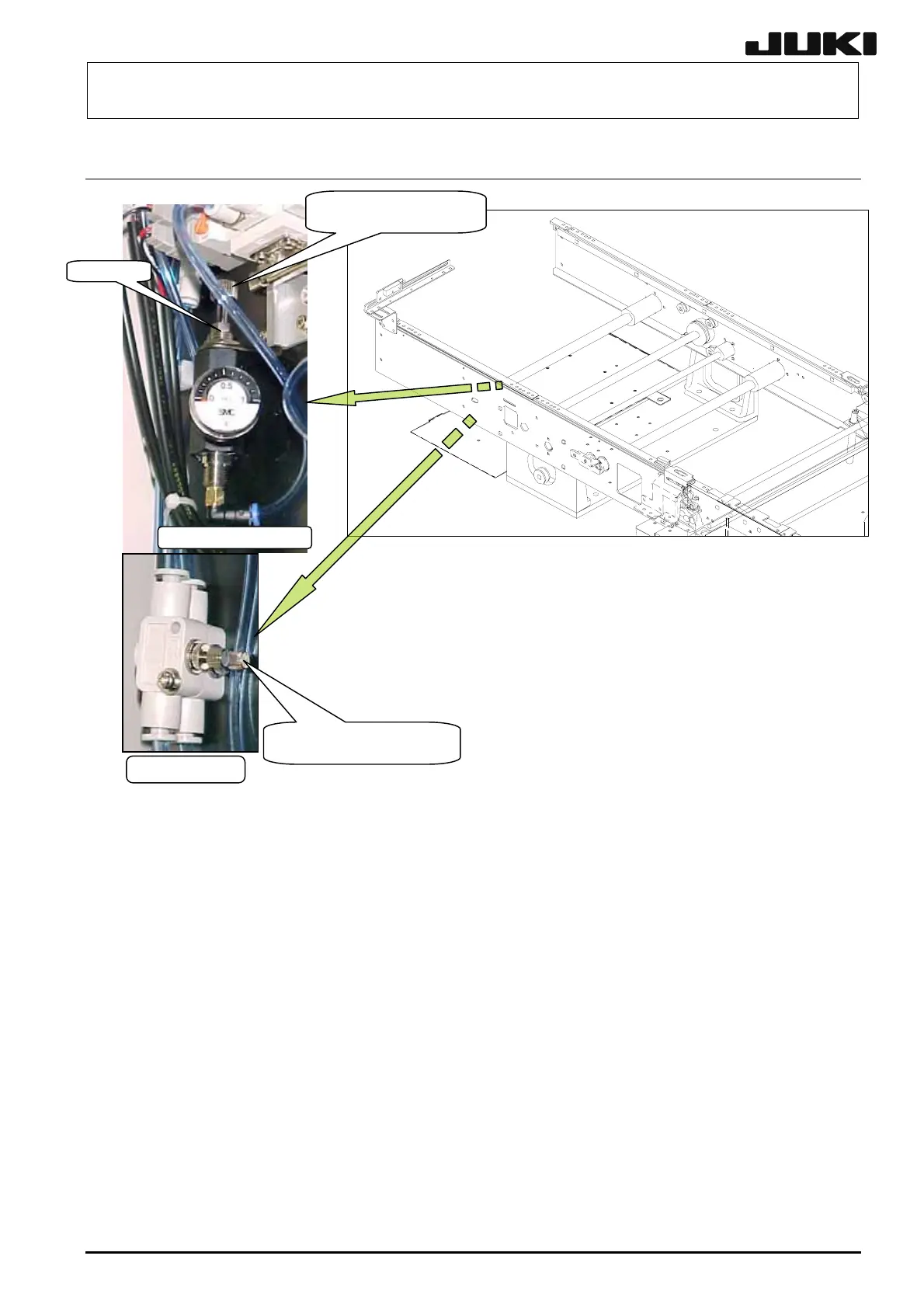

Adjusting the Check Cylinder Speed
5-18
Clockwise rotation:
Makes the speed slower.
Speed controller
Pressure reducing valve
Clockwise rotation:
Decreases the pressure.
Lock nut
Fi
g
ure 5-15-1
Adjust the check cylinder speed of the IN/BUFFER.
(1)
Adjust the pressure reducing valve to 0.15MPa. (Adjust the pressure while turning ON and OFF
the cylinder.)
(2)
Open the speed controller one and half rotations from its fully closed position.
Rev. 2.00
75
77
