FX-1/FX-1R Maintenance Manual
 DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[14] AUTO BOARD WIDTH ADJUSTMENT

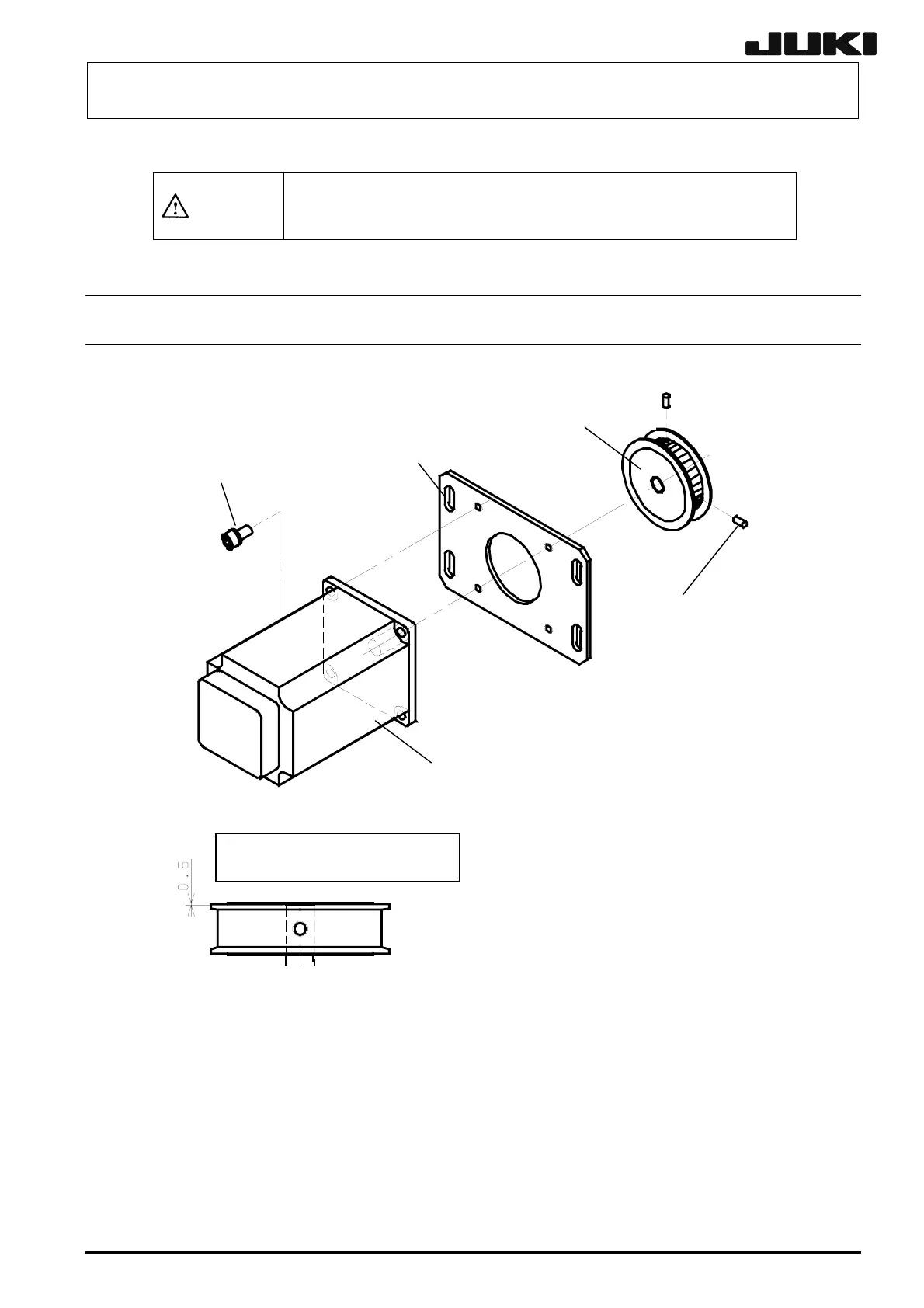

14-1. Assembling the AWC Bracket
L172E421000
AWC MOTOR BRKT
L900E321000
AWC MOTOR
E4855729000
AWC MOTOR PULLEY
SL6041242TN
MOTOR FIX BOLT ×4
SM8040402TP
SET SCREW ×2
Motor shaft is retracted 0.5 mm
from the motor pulle
y
.
Figure 14-1-1
Assemble the components so that the end face of the AWC motor shaft is retracted 0.5 mm from the
AWC motor pulley.
Regardless of the transport reference and flow direction, always assemble the components in the
same direction.
14-1
Rev. 2.00
