FX-1/FX-1R Maintenance Manual
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[4] OCC ASSEMBLY
4-1. Replacing the OCC Assembly
(1) Remove the SEMS cap bolt to detach the camera bracket D.
(2) The camera assembly is secured with the SEMS cap bolts and the light assembly is secured
with the SEMS cap bolts . Disconnect the connectors and remove relevant bolts to detach the
camera and light assemblies.
(3) Reassemble the components in the reverse order of disassembly.
(4) After the camera assembly has been replaced, it is absolutely necessary to adjust the focus
and input the MS parameters. After the light assembly has been replaced, it is necessary to
adjust OCC light. (See 4-7, List of Readjustment Items After Replacement.)
SEMS cap bolts (× 4)
Camera bracket D
Camera assembly
Li
ht assembl
3 SEMS ca
bolts
2
XM-base
1 SEMS cap bolts (× 3)

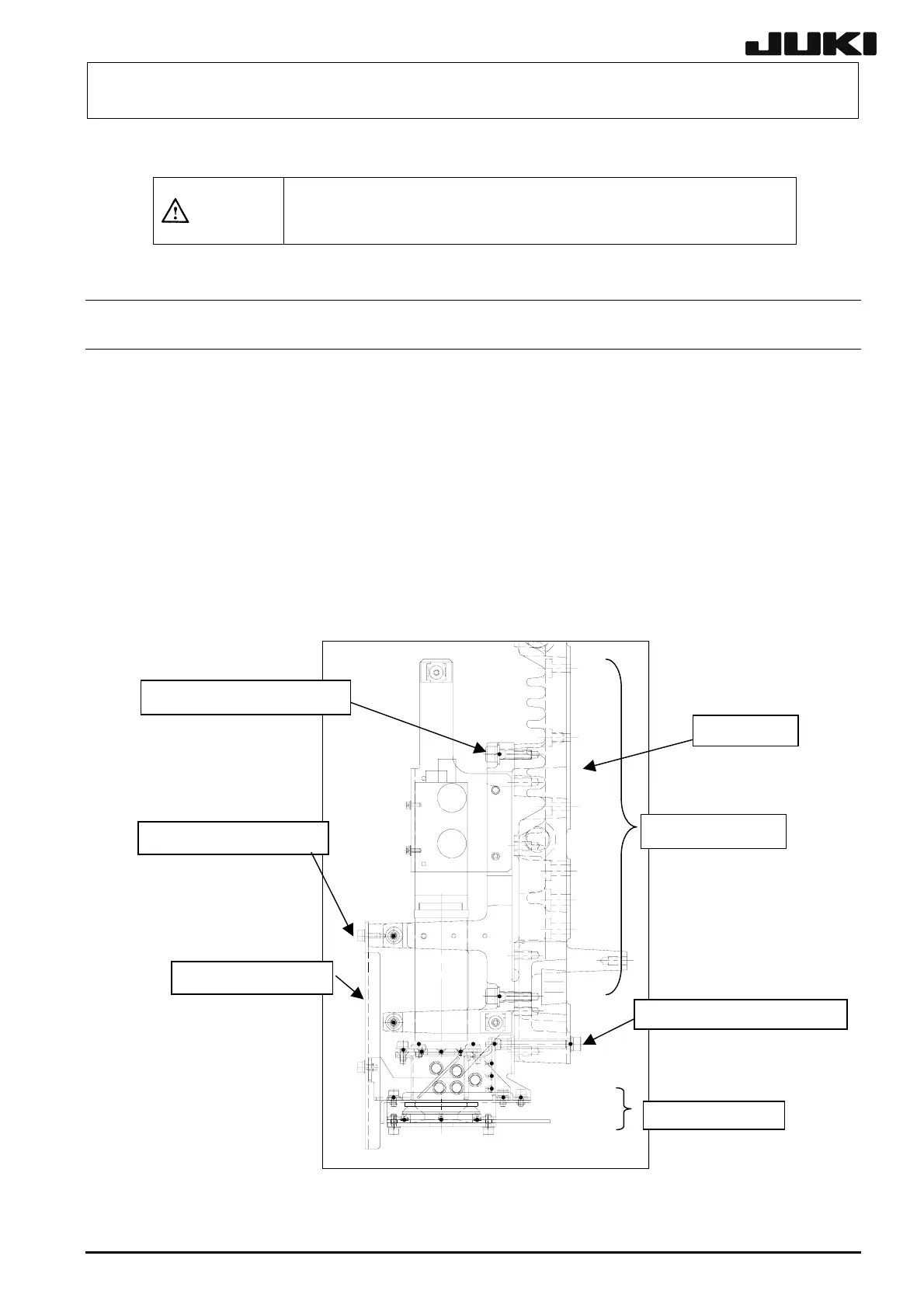

Figure 4-1-1 OCC Assembly
4-1
Rev. 2.00
