Juniper EX Series Complete Hardware Guide

To install an SFP or XFP transceiver in an uplink module installed in an EX-series
switch (see Figure 59 on page 105):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and
connect the strap to the ESD point on the chassis.
2. Remove the SFP or XFP transceiver from its bag.
3. Ensure that the transceiver is covered by a rubber safety cap. If it is not, cover
the transceiver with a safety cap.
4. Remove the dust cover covering the port in the uplink module. Save the dust
cover in case you need to cover the port later.
5. Using both hands, carefully place the transceiver in the empty port in the uplink
module. The connectors should face the uplink module.
CAUTION: Ensure the transceiver is aligned correctly when you slide it into the port;
misalignment might bend the pins and make the transceiver unusable.
6. Slide the transceiver in gently until it is fully seated.
7. Remove the rubber safety cap when you are ready to connect the cable to the
transceiver.

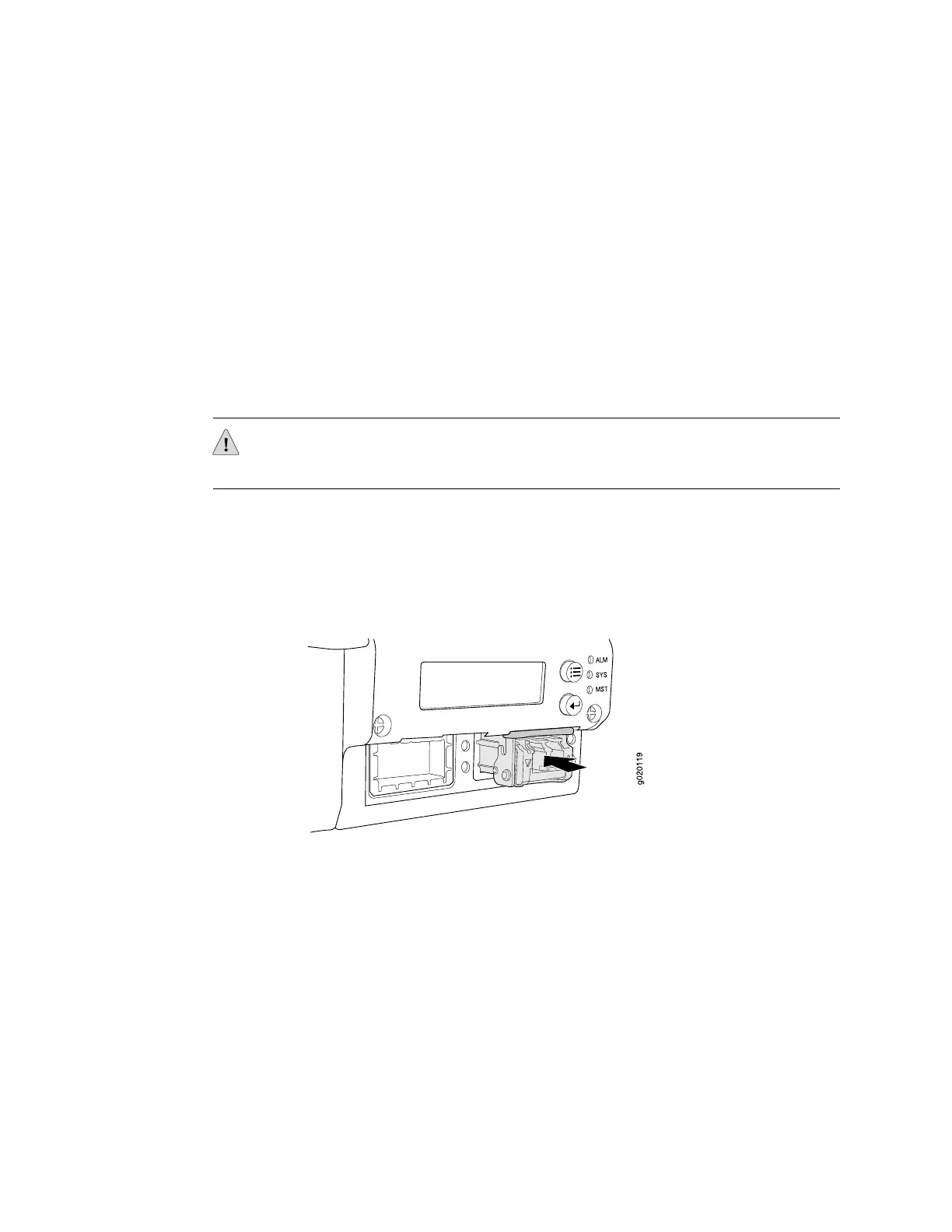

Figure 59: Installing an SFP or XFP Transceiver in an EX-series Switch
Related Topics ■ Removing an SFP or XFP Transceiver from an EX-series Switch on page 106
■ Removing an Uplink Module from an EX-series Switch on page 102
■ Optical Interface Support—EX 3200 and EX 4200 Switches on page 21
■ Installing and Removing EX-series Switch Hardware Components on page 100
■ Field-Replaceable Units in EX-series Switches on page 99
■ EX 3200 Switch—Front-Panel Description on page 9
■ EX 4200 Switch—Front-Panel Description on page 11
Installing an SFP or XFP Transceiver in an EX-series Switch ■ 105
Chapter 5: Replacing Hardware Components
