3. Secure the grounding lug to the protective earthing terminal with screws.
4. Dress the grounding cable and ensure that it does not touch or block access to other
switch components and that it does not drape where people could trip over it.
Connecting Earth Ground to an EX6210 Switch
The protective earthing terminal is located on the rear of the chassis on the lower left
side in an EX6210 switch. See Figure 46 on page 106 for the location of the earthing terminal
on an Ex6210 switch.

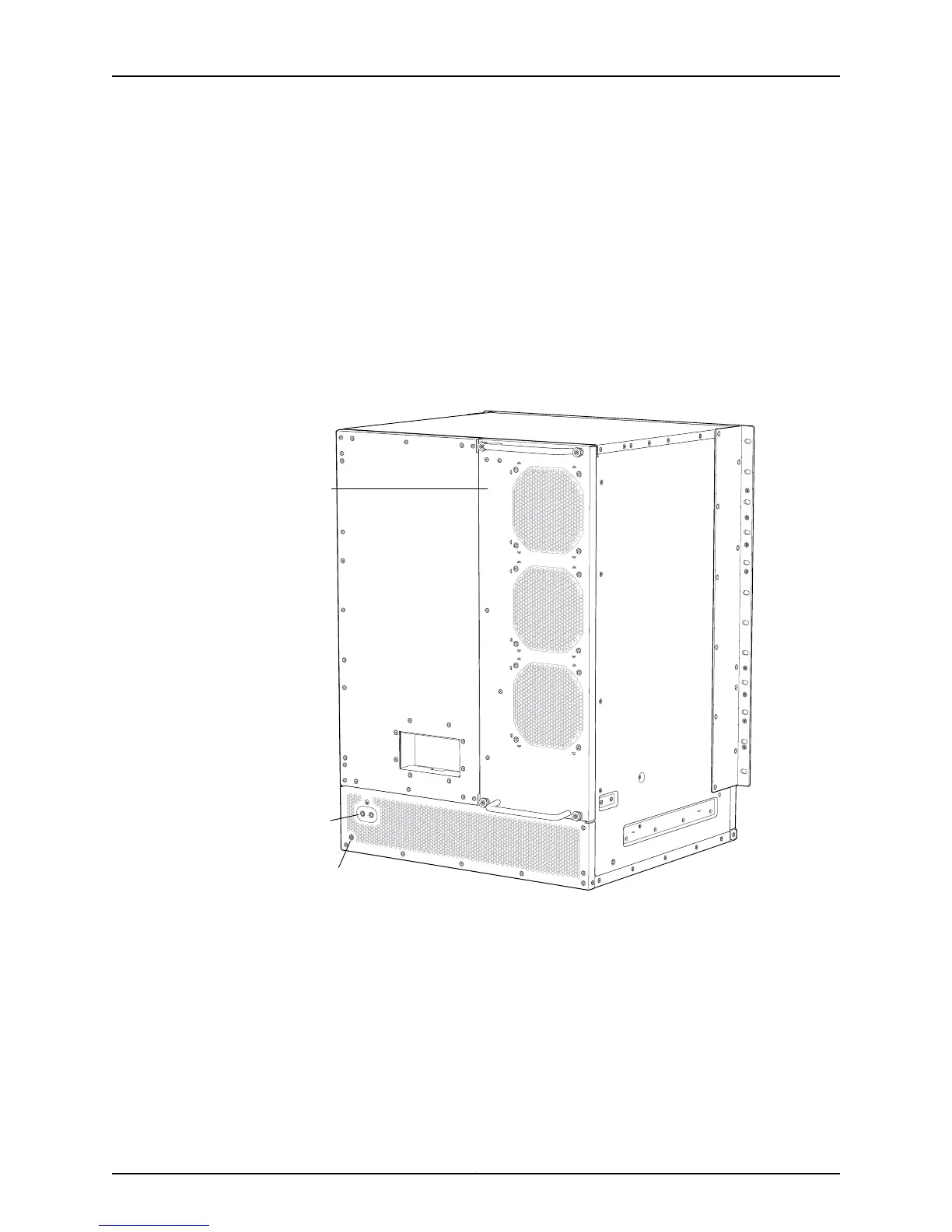

Figure 46: Location of Protective Earthing Terminal on an EX6210 Switch
g021101
Earthing
terminal
Fan tray
ESD point
An AC-powered EX Series switch chassis gets additional grounding when you plug the
power supply in the switch into a grounded AC power outlet by using an AC power cord
appropriate for your geographical location. See AC Power Cord Specifications for an
EX6200 Switch.
Ensure that you have the following parts and tools available:
Copyright © 2011, Juniper Networks, Inc.106
Complete Hardware Guide for EX2200 Ethernet Switches
