Juniper EX2300-C Hardware Guide

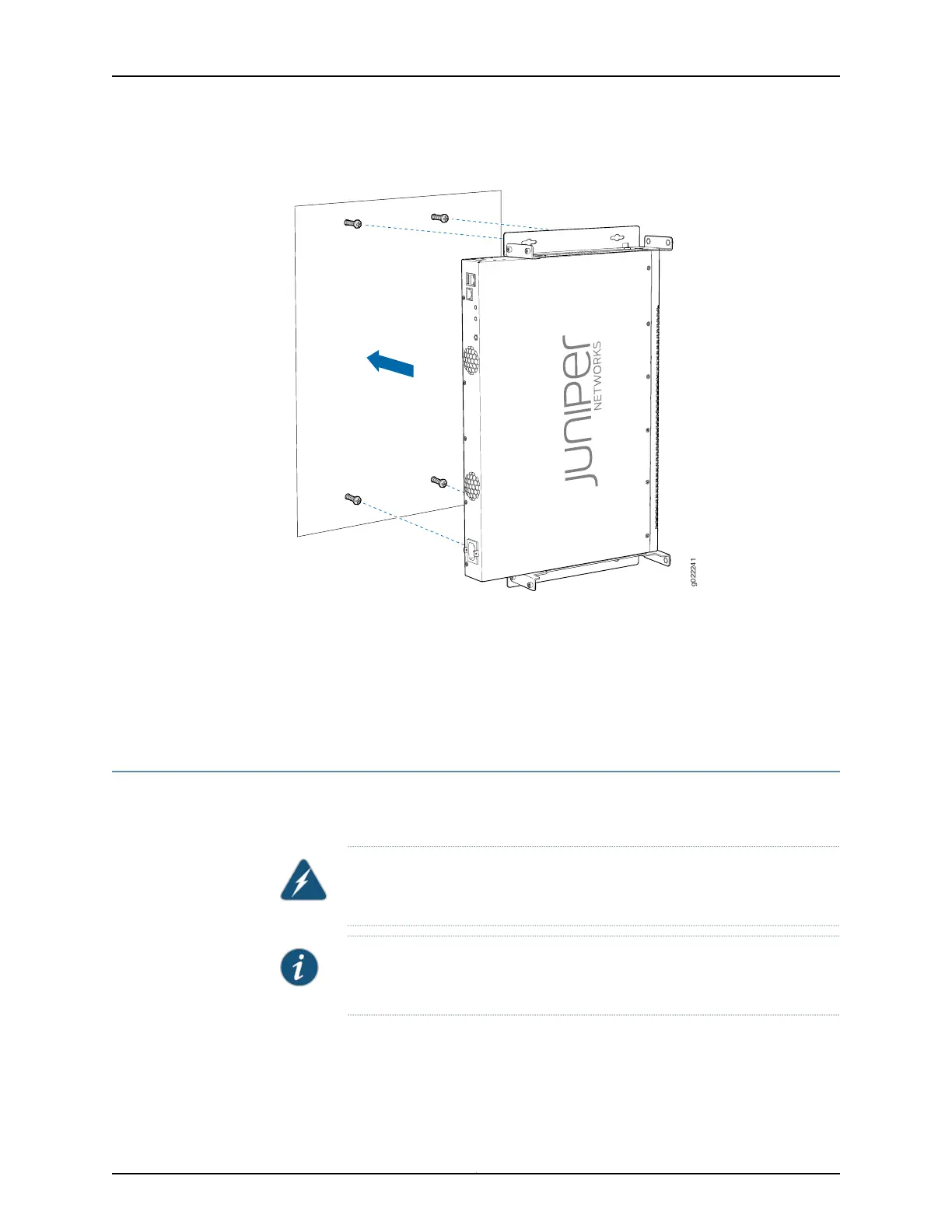

Figure 48: Mounting an EX2300 Switch on a Wall
g022241
Related
Documentation
Connecting AC Power to an EX2300 Switch on page 161•
• Connecting and Configuring an EX Series Switch (CLI Procedure) on page 179
• Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 182
Mounting an EX2300-C Switch on or Under a Surface Made of Ferrous Material
You can mount an EX2300-C switch on or under a surface made of ferrous material by
using the separately orderable magnet-mount kit.
WARNING: Do not mount EX2300-C switches on a ceiling by using the
separately orderable magnet-mount kit.
NOTE: Do not block the vents on the top of EX2300-C switches. Blocking
the vents can lead to overheating of the switch chassis.
Before mounting the switch on or under a surface made of ferrous material:
•
Verify that the site meets the requirements described in “Site Preparation Checklist
for EX2300 Switches” on page 51.
149Copyright © 2017, Juniper Networks, Inc.
Chapter 12: Installing the Switch

Juniper EX2300-C Specifications

General

Safety	UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS EN 60950-1, CB-IEC60950-1, EN 60825-1
Form factor	1U
Product color	Black
Rack mounting	Yes
Electromagnetic compatibility	FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, EN 55024, EN 300386, CE
Console port	USB
SFP+ module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	12
Number of VLANs	4093
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Power consumption (max)	20 W
Memory type	DRAM
Noise level	0 dB
Flash memory	2000 MB
Processor frequency	1250 MHz
Virtual stacking (units)	4
Operating altitude	0 - 1524 m
Non-operating altitude	1524 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Throughput	47 Mpps
Jumbo frames	9216
MAC address table	16000 entries
DHCP features	DHCP server, DHCP client
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SSH-2
Fiber ethernet cabling technology	1000BASE-X
Switch type	Managed
Switch layer	L2/L3

Weight and Dimensions

Depth	239 mm
Width	279 mm
Height	44 mm
Weight	2480 g
