Juniper EX2300-C Hardware Guide

To connect a fiber-optic cable to an optical transceiver installed in a device:
WARNING: Do not look directly into a fiber-optic transceiver or into the ends
of fiber-optic cables. Fiber-optic transceivers and fiber-optic cablesconnected
to transceivers emit laser light that can damage your eyes.
1. If the fiber-optic cable connector is covered with a rubber safety cap, remove the cap.
Save the cap.
2. Remove the rubber safety cap from the optical transceiver. Save the cap.
3. Insert the cable connector into the optical transceiver (see Figure 66 on page 171).

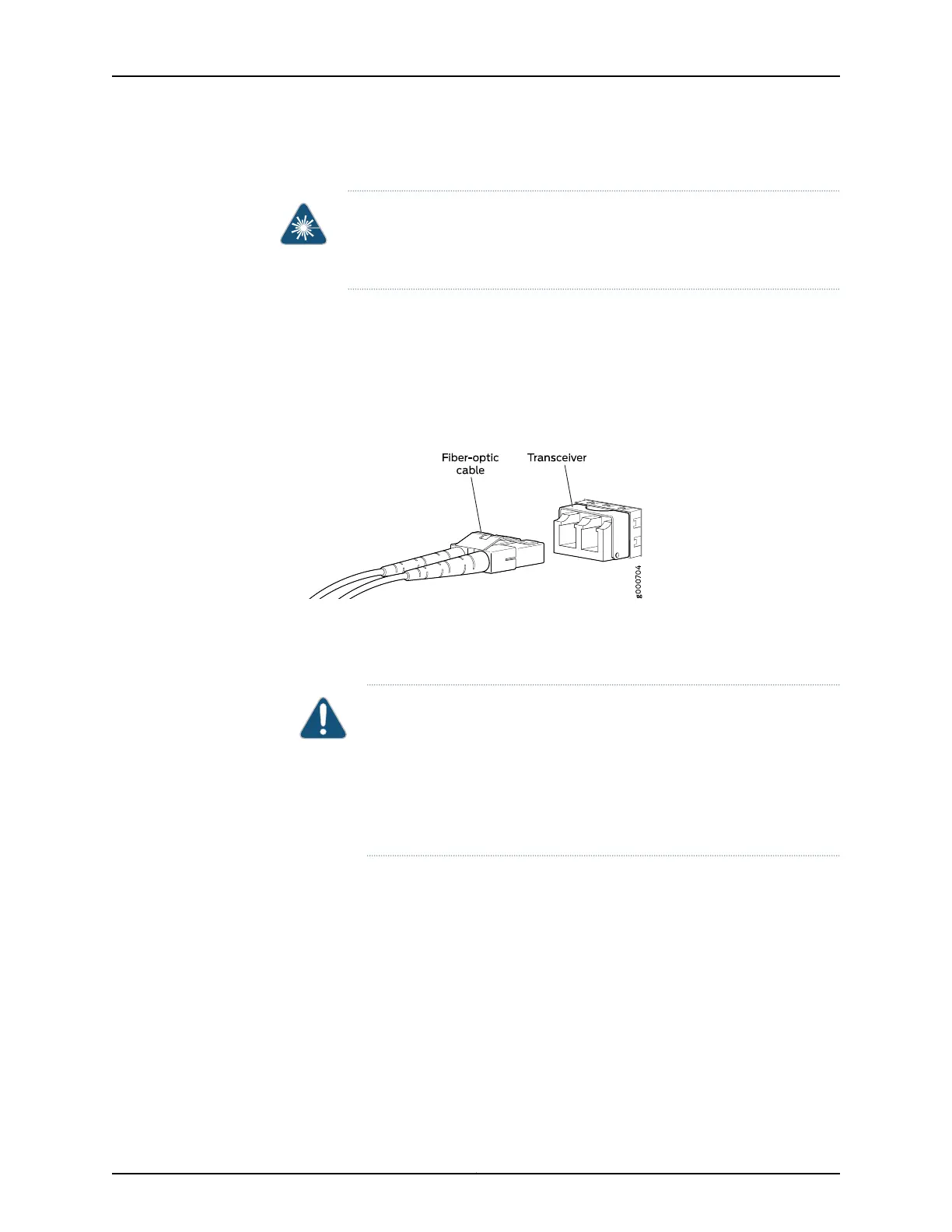

Figure 66: Connecting a Fiber-Optic Cable to an Optical Transceiver
Installed in a Device
4. Secure the cables so that they do not support their own weight. Place excess cable
out of the way in a neatly coiled loop. Placing fasteners on a loop helps cables maintain
their shape.
CAUTION: Do not bend fiber-optic cables beyond their minimum bend
radius.An arcsmallerthan a fewinches in diameter candamage the cables
and cause problems that are difficult to diagnose.
Do not let fiber-optic cables hang free from the connector. Do not allow
fastened loops of cables to dangle, which stresses the cables at the
fastening point.
Related
Documentation
• Disconnecting a Fiber-Optic Cable from a Device on page 200
• Installing a Transceiver on page 193
• Maintaining Fiber-Optic Cables on page 201
171Copyright © 2017, Juniper Networks, Inc.
Chapter 14: Connecting the Switch to the Network

Juniper EX2300-C Specifications

General

Safety	UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS EN 60950-1, CB-IEC60950-1, EN 60825-1
Form factor	1U
Product color	Black
Rack mounting	Yes
Electromagnetic compatibility	FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, EN 55024, EN 300386, CE
Console port	USB
SFP+ module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	12
Number of VLANs	4093
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Power consumption (max)	20 W
Memory type	DRAM
Noise level	0 dB
Flash memory	2000 MB
Processor frequency	1250 MHz
Virtual stacking (units)	4
Operating altitude	0 - 1524 m
Non-operating altitude	1524 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Throughput	47 Mpps
Jumbo frames	9216
MAC address table	16000 entries
DHCP features	DHCP server, DHCP client
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SSH-2
Fiber ethernet cabling technology	1000BASE-X
Switch type	Managed
Switch layer	L2/L3

Weight and Dimensions

Depth	239 mm
Width	279 mm
Height	44 mm
Weight	2480 g
