Juniper EX2300-C Hardware Guide

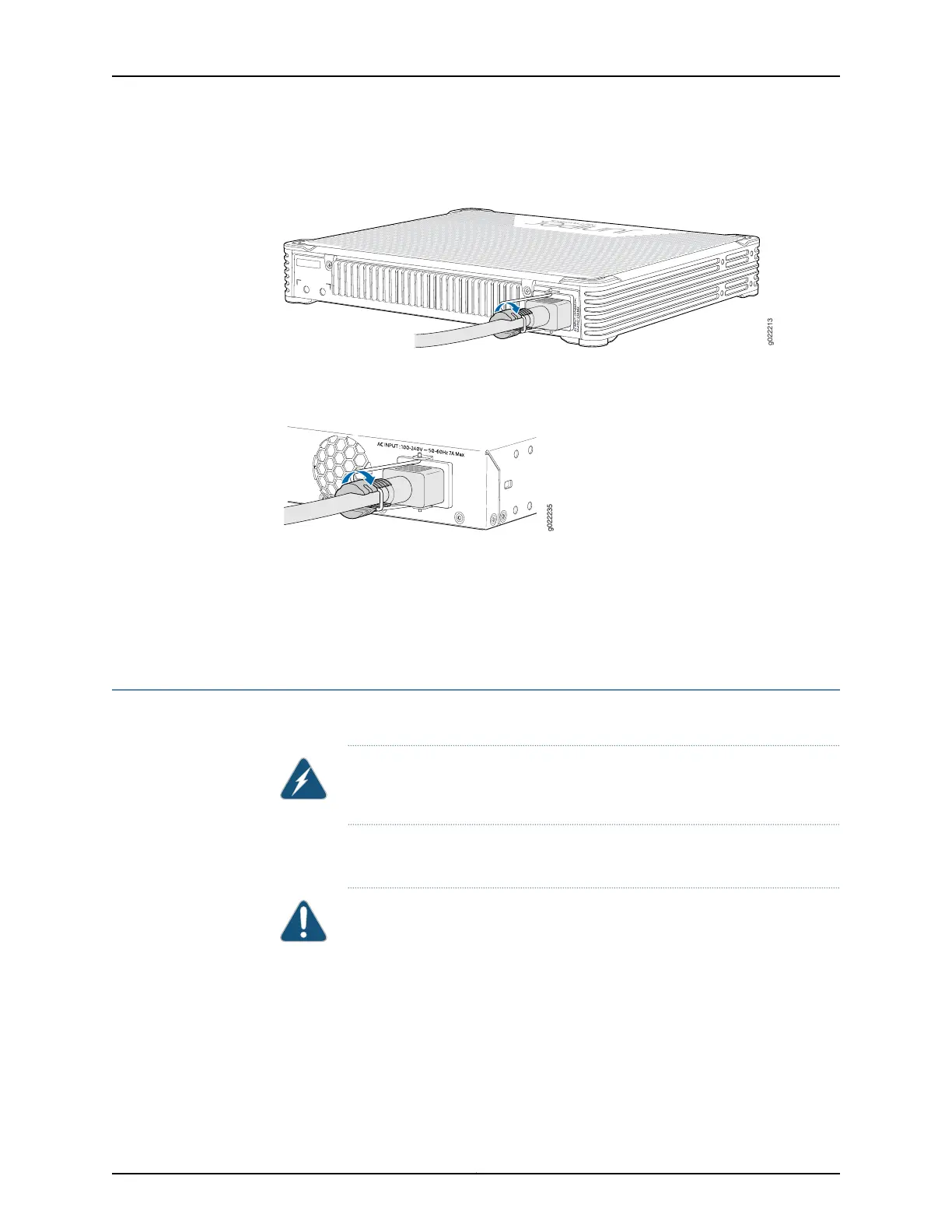

Figure 58: Connecting an AC Power Cord to the AC Power Cord Inlet on
EX2300-C Switches
g022213
Figure 59: Connecting an AC Power Cord to the AC Power Cord Inlet on
EX2300 Switches Except EX2300-C Switches
g022235
Related
Documentation
Connecting and Configuring an EX Series Switch (CLI Procedure) on page 179•
• Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 182
• Power Supply in EX2300 Switches on page 27
Connecting DC Power to an EX2300 Switch
The power supply is built-in along the rear panel.
WARNING: DC-powered switches are intended for installation only in a
restricted-access location.
Before you begin connecting DC power to the switch, ensure that you have connected
earth ground to the switch chassis.
CAUTION: Before you connect power to the switch, a licensed electrician
must attach a cable lug to the grounding and power cables. A cable with an
incorrectly attached lug can damage the switch (for example, by causing a
short circuit).
To meet safety and electromagnetic interference (EMI) requirements and
to ensure proper operation, you must connect the switch to earth ground
before you connect them to power. For installations that require a separate
grounding conductor to the chassis, use the protective earthing terminal on
the switch chassis to connect to the earth ground. For instructions on
163Copyright © 2017, Juniper Networks, Inc.
Chapter 13: Connecting the Switch to Power

Juniper EX2300-C Specifications

General

Safety	UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS EN 60950-1, CB-IEC60950-1, EN 60825-1
Form factor	1U
Product color	Black
Rack mounting	Yes
Electromagnetic compatibility	FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, EN 55024, EN 300386, CE
Console port	USB
SFP+ module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	12
Number of VLANs	4093
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Power consumption (max)	20 W
Memory type	DRAM
Noise level	0 dB
Flash memory	2000 MB
Processor frequency	1250 MHz
Virtual stacking (units)	4
Operating altitude	0 - 1524 m
Non-operating altitude	1524 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Throughput	47 Mpps
Jumbo frames	9216
MAC address table	16000 entries
DHCP features	DHCP server, DHCP client
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SSH-2
Fiber ethernet cabling technology	1000BASE-X
Switch type	Managed
Switch layer	L2/L3

Weight and Dimensions

Depth	239 mm
Width	279 mm
Height	44 mm
Weight	2480 g
