CHAPTER 4
Cooling System Description
•
SRX240 Services Gateway Cooling System on page 23
•
SRX240 Services Gateway Air Filter on page 24
SRX240 Services Gateway Cooling System
SRX240 Services Gateways have six cooling fans.
The fans draw air from the right side of the chassis (when the chassis is viewed from the
front) and exhaust the air at the left side of the chassis (when the chassis is viewed from
the front) as shown in Figure 8 on page 23.
The airflow produced by these fans keeps all components within the acceptable
temperature range.

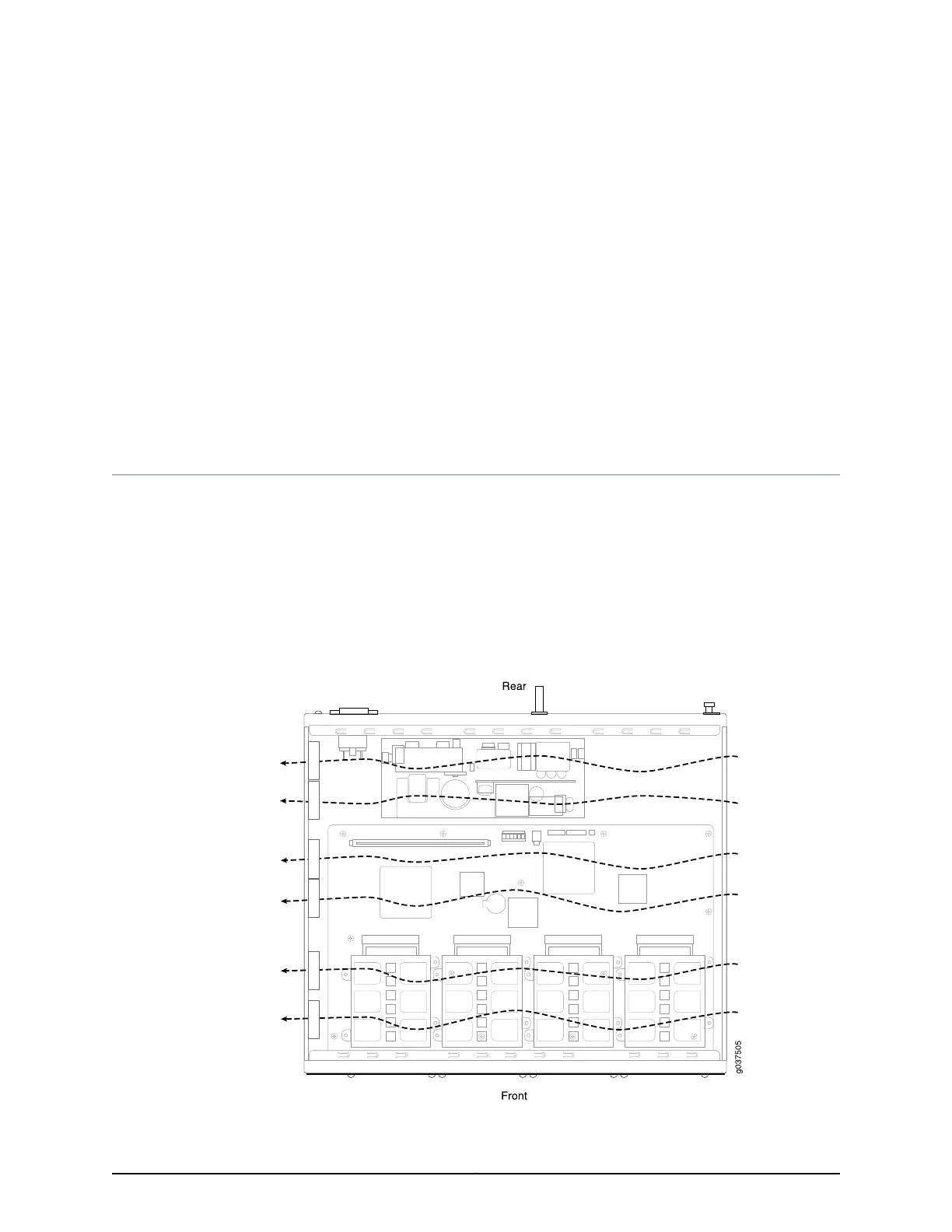

Figure 8: Airflow Through the SRX240 Services Gateway Chassis
