Juniper SRX240 Hardware Guide

CHAPTER 8
Cable Specifications and Pinouts
•
Interface Cable and Wire Specifications for the SRX240 Services Gateway on page 41
•
RJ-45 Connector Pinouts for the SRX240 Services Gateway Ethernet Port on page 41
•
RJ-45 Connector Pinouts for the SRX240 Services Gateway Console Port on page 43
Interface Cable and Wire Specifications for the SRX240 Services Gateway
Table 23 on page 41 lists the specifications for the cables that connect to ports.
Table 23: Cable and Wire Specifications for Ports
Device
Receptacle
Maximum
LengthCable/Wire RequiredCable SpecificationPort
RJ-456 ft (1.83 m)One 6-ft (1.83-m) length
with DB-9/RJ-45
connectors
RS-232 (EIA-232) serial
cable
Console
port
RJ-45328 ft
(100 m)
One 15-ft (4.57-m)
length with RJ-45/RJ-45
connectors
CAT-5e (Category 5)
cable or equivalent
suitable for 100BASE-T
operation
Ethernet
port
Related
Documentation
RJ-45 Connector Pinouts for the SRX240 Services Gateway Ethernet Port on page 41•
• RJ-45 Connector Pinouts for the SRX240 Services Gateway Console Port on page 43
RJ-45 Connector Pinouts for the SRX240 Services Gateway Ethernet Port
Figure 10 on page 41 shows the RJ-45 cable connector pinouts for Ethernet ports.

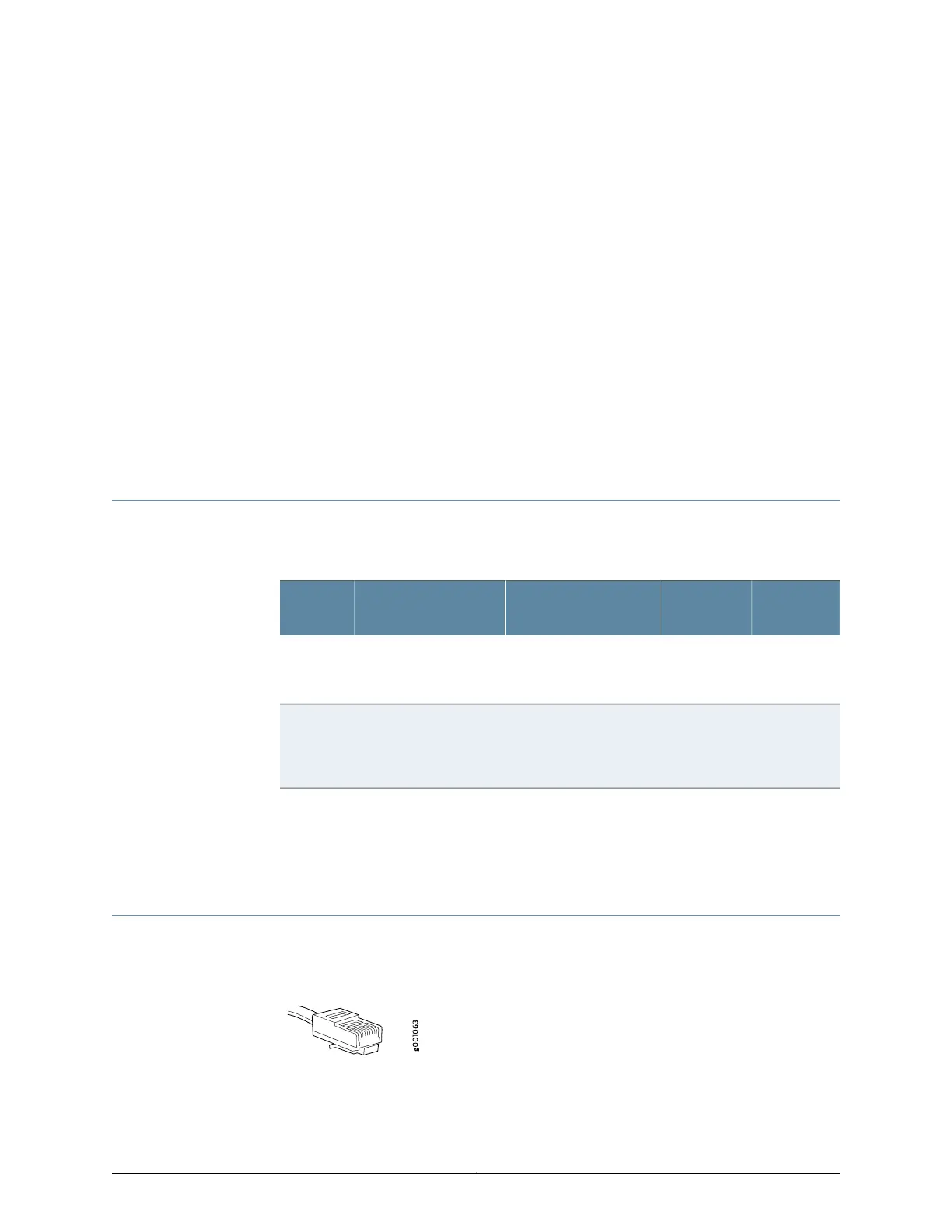

Figure 10: Ethernet Cable Connector (RJ-45)
Table 24 on page 42 describes the RJ-45 connector pinouts for the Ethernet port for
10/100 Mbps.
41Copyright © 2015, Juniper Networks, Inc.
