Kohler KDW 1603 User Manual

26
25
27
X 7,020÷7,035
Y 7,020÷7,035
L 36,8÷37,2
A 6,985÷7,00
Y-A
0,020÷
0,050
0,100
X-A
6
- 42 - - 42 -
Disassembly / Reassembly

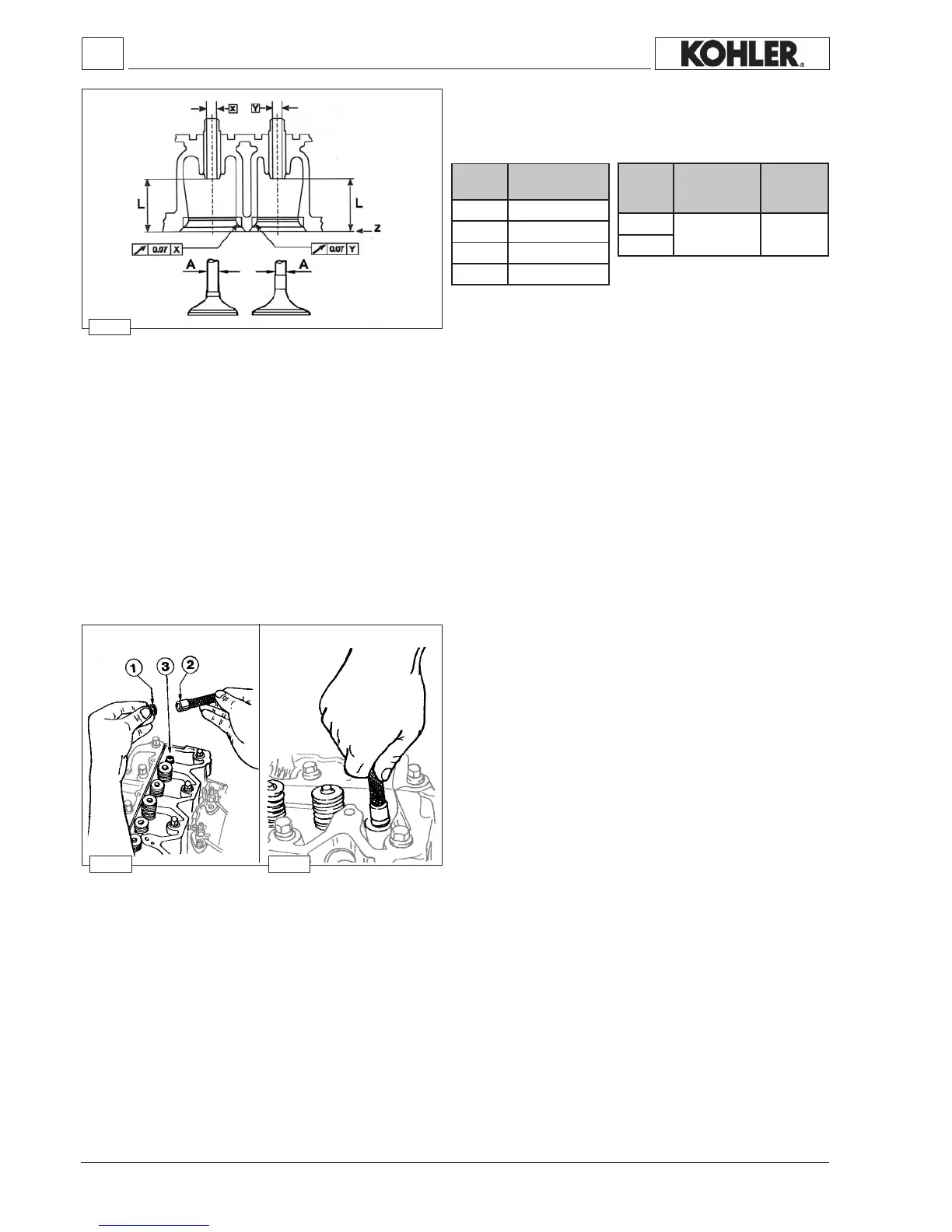

Valve guide insertion, after driving
PressguidesconsideringtheLdistancefromtheheadplaneX.
The referred quote are used to control the X-Y concentricity
betweenthevalveseatsandguides.
Oil seal in the valves guides, (intake and exhaust)
To prevent the seal 1 warping when mountig the valve guide
3putitintothetool2partno.7107-1460-047andproceedas
showninthegure27,makingsuretheseal1 reachesitsstop.
Clearance
(mm)
Limit value
(mm)
Dimensions
(mm)
Ref.
Ref.
