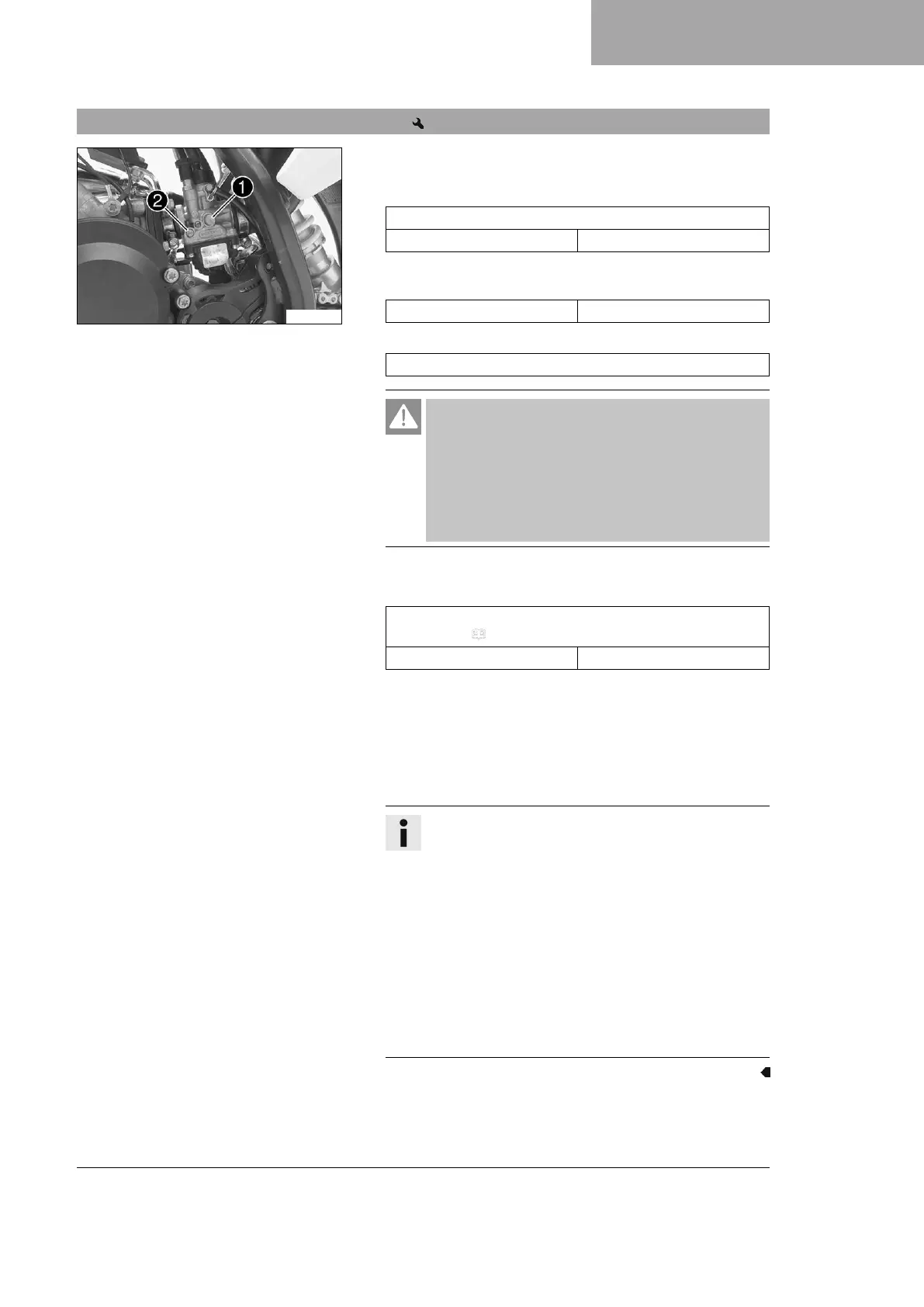

15.5 Carburetor – adjusting the idle speed (50 SX, FACTORY EDITION)
S03218-10
–
Screw in idle air adjusting screw
2
all the way and turn it to
the specified basic setting.
Guideline
Idle air adjusting screw
Open 3 turns
– Run the engine until warm.
Guideline
Warming-up phase ≥ 5 min
– Connect the special tool.
Tachometer (45129075000)
Danger
Danger of poisoning Exhaust gases are toxic and inhal-
ing them may result in unconsciousness and death.
– Always make sure there is sufficient ventilation
when running the engine.
– Use effective exhaust extraction when starting or
running the engine in an enclosed space.
–
Adjust the idle speed using idle speed adjusting screw
1
.
Guideline
Choke function deactivated – The choke lever is pushed in
to the stop. ( p. 16)
Idle speed 1,400 … 1,500 rpm
–
Turn idle air adjusting screw
2
slowly in a clockwise direc-
tion until the idle speed begins to fall.
– Note the position and turn the idle air adjusting screw slowly
counterclockwise until the idle speed again begins to fall.
– Adjust to the point between these two positions with the high-
est idle speed.
Info
If there is a big engine speed rise, reduce the idle
speed to a normal level and repeat the above steps.
If the procedure described here does not lead to sat-
isfactory results, the cause may be a wrongly dimen-
sioned idling jet.
If you can turn the idle air adjusting screw to the end
without any change of engine speed, mount a smaller
idling jet.
After changing the idling jet, start from the beginning
with the adjusting steps.
Following extreme air temperature or altitude changes,
adjust the idle speed again.
