KTM 50 SX 2022 User Manual

TUNING THE ENGINE 15
107
Info
The springs may not be pretensioned by more
than 17 clicks from the stop using the adjusting
screws.
Condition
If the slip speed is too high:
–
Turn adjusting screws
2
counterclockwise.
Guideline
1 click decreases the slip
speed by
250 … 350 rpm
F02958-10
–
Mount and tighten plug
1
with a new seal ring.
Guideline
Clutch cover plug M12x1 8 Nm (5.9 lbf ft)
Finishing work
(50 SX, 50 SX MINI)
– Install the clutch cover. ( p. 107)
– Check the gear oil level. ( p. 110)
(FACTORY EDITION)
– Remove the motorcycle from the lift stand. ( p. 40)
– Check the clutch setting. ( p. 103)

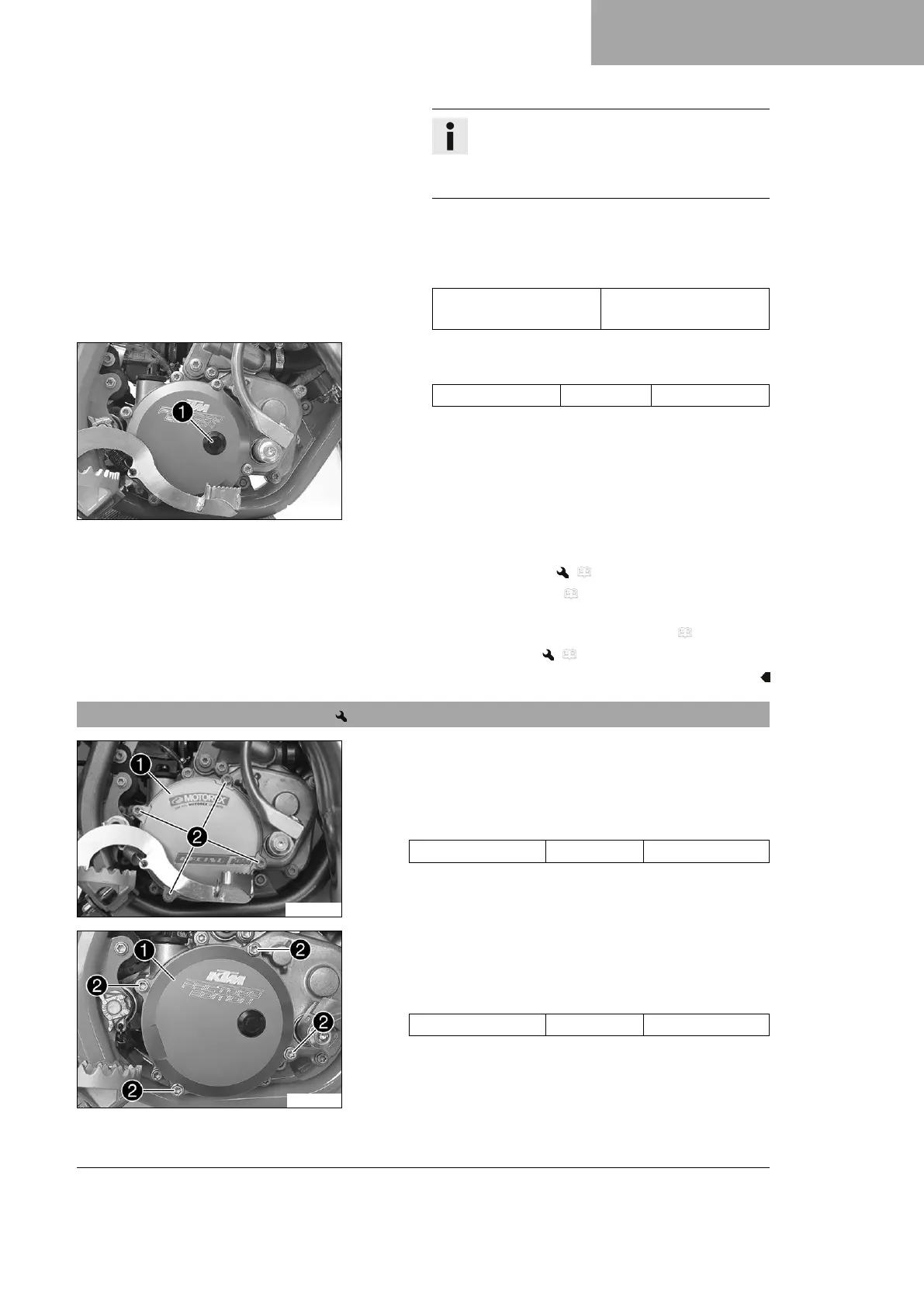

15.10 Installing the clutch cover
H01458-11
Main work
(50 SX, 50 SX MINI)
–
Position the clutch cover
1
with the seal ring.
–
Mount and tighten screws
2
.
Guideline
Screw, clutch cover M6 10 Nm (7.4 lbf ft)
F02962-11
(FACTORY EDITION)
–
Position the clutch cover
1
with the seal ring.
–
Mount and tighten screws
2
.
Guideline
Screw, clutch cover M6 10 Nm (7.4 lbf ft)

KTM 50 SX 2022 Specifications

General

Displacement	49 cc
Cooling System	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	684 mm
Weight (without fuel)	41.5 kg
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP XACT USD, Ø 35 mm
Rear Suspension	WP XACT shock absorber
Fuel Tank Capacity	2.3 liters
Frame	Steel
Bore x Stroke	39.5 mm x 40 mm
