11 SERVICE WORK ON THE CHASSIS
68
400985-01

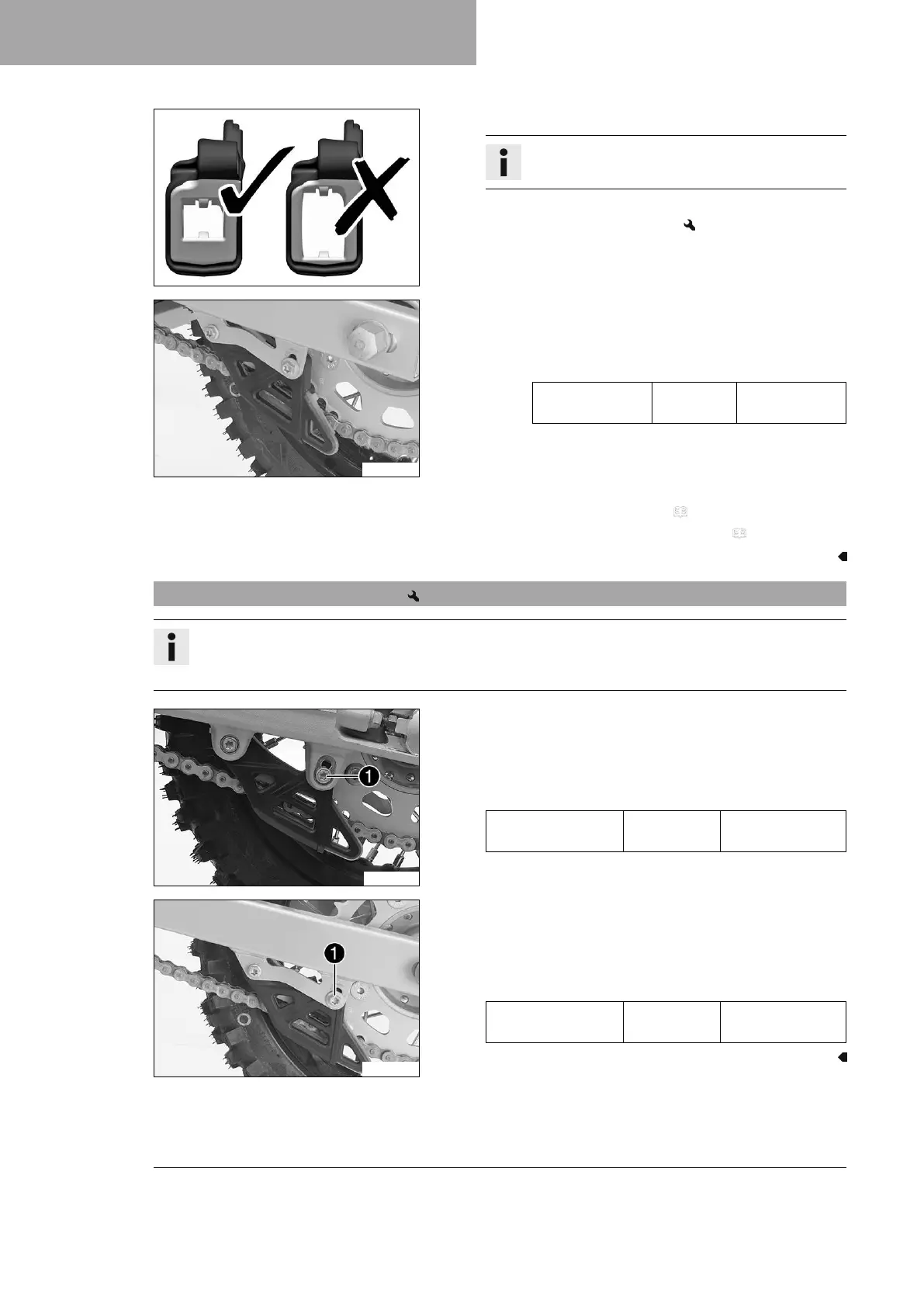

– Check the chain guide for wear.
Info
Wear can be seen on the front of the chain guide.
» If the light part of the chain guide is worn:
– Change the chain guide.
H00095-01
–
Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining
screws, chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Install the engine sprocket cover. ( p. 61)
– Remove the motorcycle from the lift stand. ( p. 40)
11.37 Adjusting the chain guide
Info
The size of the chain wheel varies with the number of teeth. The chain guide can be adjusted on small
sprockets.
F02201-10
(50 SX, FACTORY EDITION)
–
Loosen screw
1
.
– Position the chain guide.
– Tighten the screw.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
H00096-10
(50 SX MINI)
–
Loosen screw
1
.
– Position the chain guide.
– Tighten the screw.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

KTM 50 SX 2022 Specifications

General

Displacement	49 cc
Cooling System	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	684 mm
Weight (without fuel)	41.5 kg
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP XACT USD, Ø 35 mm
Rear Suspension	WP XACT shock absorber
Fuel Tank Capacity	2.3 liters
Frame	Steel
Bore x Stroke	39.5 mm x 40 mm
