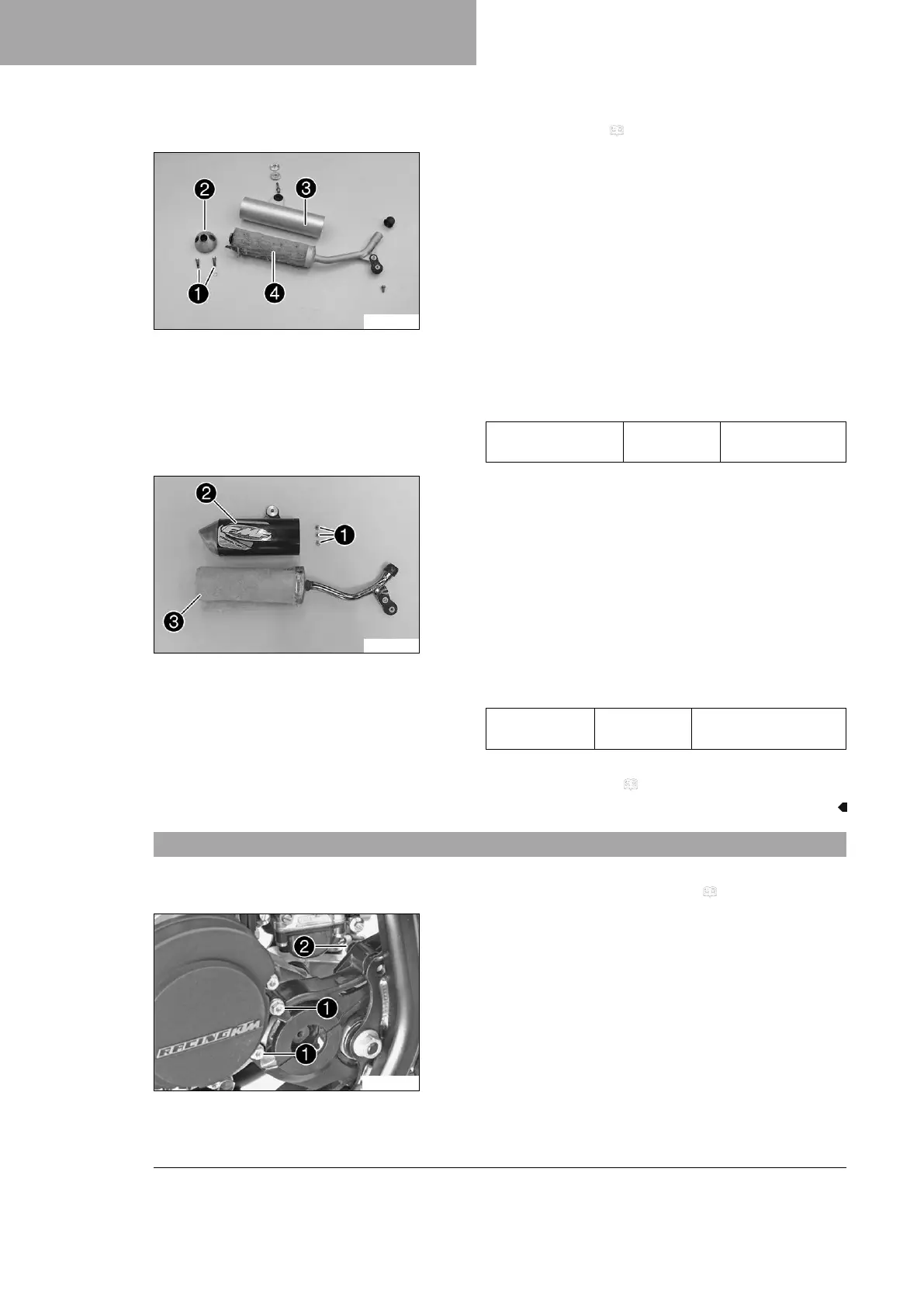

11 SERVICE WORK ON THE CHASSIS
60
Preparatory work
– Remove main silencer. ( p. 58)
700514-01
Main work
(50 SX, 50 SX MINI)
–
Remove screws with toothed washers
1
from the silencer
cap
2
.
–
Remove end cap and outer tube
3
.
–
Remove glass fiber yarn filling
4
from the inner tube.
– Clean the parts that need to be reinstalled and check for
damage.
– Mount the new glass fiber yarn filling on the inner tube.
– Slide the outer tube over the glass fiber yarn filling.
– Insert the end cap into the outer tube.
– Mount and tighten the screws with the toothed washers.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
F02956-10
(FACTORY EDITION)
–
Remove screws
1
of the outer tube.
–
Take off the outer tube and silencer cap
2
.
–
Remove glass fiber yarn filling
3
from the inner tube.
– Clean the parts that need to be reinstalled and check for
damage.
– Mount the new glass fiber yarn filling on the inner tube.
–
Slide outer tube and silencer cap
2
over the glass fiber
yarn filling.
– Mount and tighten the screws.
Guideline
Screws on
main silencer
M5 9 Nm (6.6 lbf ft)
Loctite
®
243™
Finishing work
– Install the main silencer. ( p. 59)
11.30 Removing the engine sprocket cover
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 40)
H01437-10
Main work
(50 SX, FACTORY EDITION)
–
Remove screws
1
.
–
Remove screw
2
.
– Take off the engine sprocket cover.
