KTM 50 SX 2022 User Manual

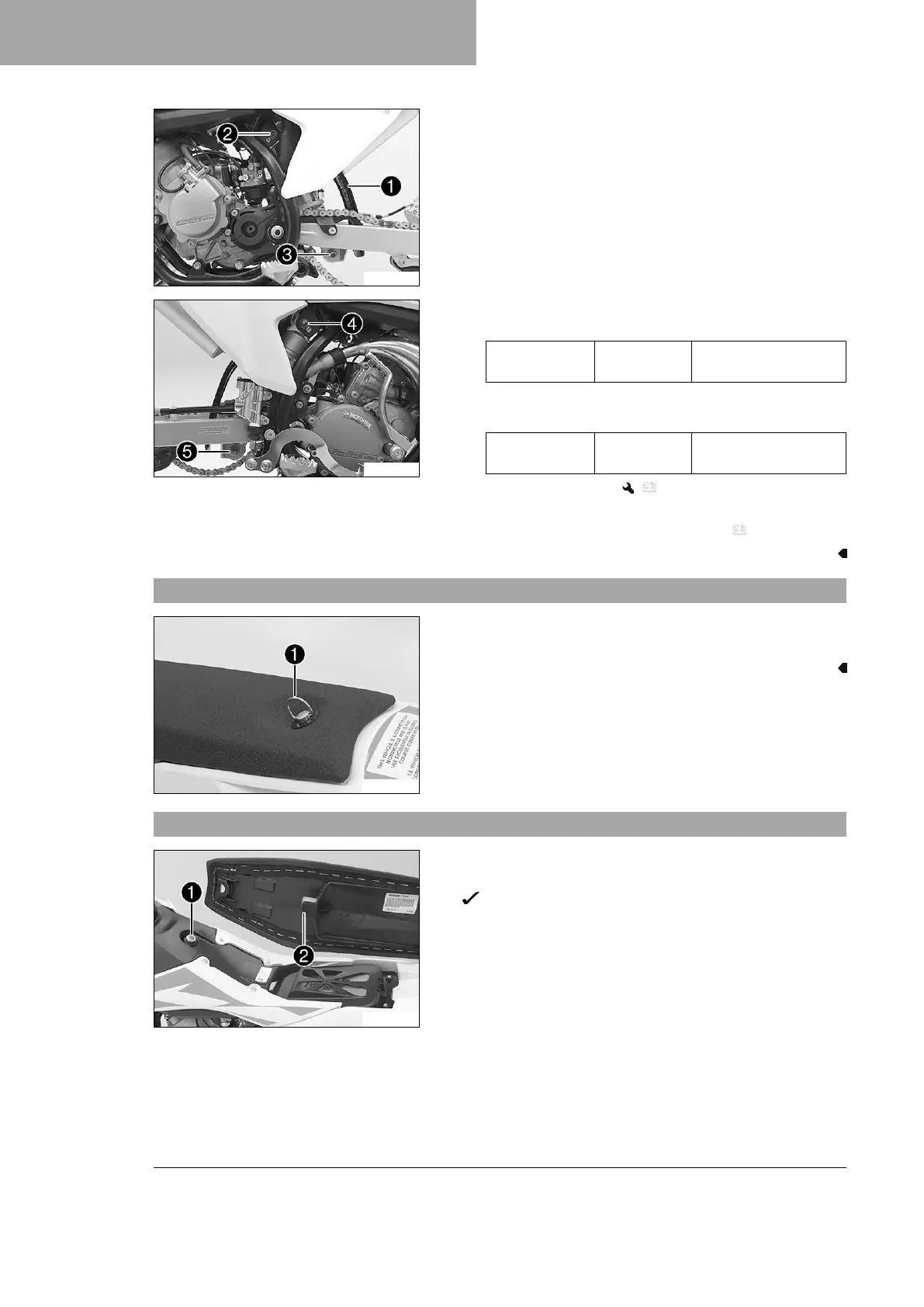

11 SERVICE WORK ON THE CHASSIS
56
V00280-11
(50 SX MINI)
–
Push splash protector
1
to the side.
–
Position the shock absorber with screw
2
, depending on
the desired seating height.
– Raise the link fork; position the shock absorber with
screw
3
.
V00279-11
–
Mount nut
4
and tighten the fitting.
Guideline
Screw, top
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Mount nut
5
and tighten the fitting.
Guideline
Screw, bottom
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Install the rear wheel. ( p. 90)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 40)
11.22 Removing the seat
H00066-10
–
Open quick release
1
and raise the rear of the seat.
– Pull back the seat and remove it.
11.23 Mounting the seat
H01431-10
–
Hook seat onto screw
1
and lower the seat at the rear and
push it forward.
Holding lug
2
hooks into the fuel tank.

KTM 50 SX 2022 Specifications

General

Displacement	49 cc
Cooling System	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	684 mm
Weight (without fuel)	41.5 kg
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP XACT USD, Ø 35 mm
Rear Suspension	WP XACT shock absorber
Fuel Tank Capacity	2.3 liters
Frame	Steel
Bore x Stroke	39.5 mm x 40 mm
