TUNING THE CHASSIS 10
39
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
Info
Make sure the installed gaps are even.

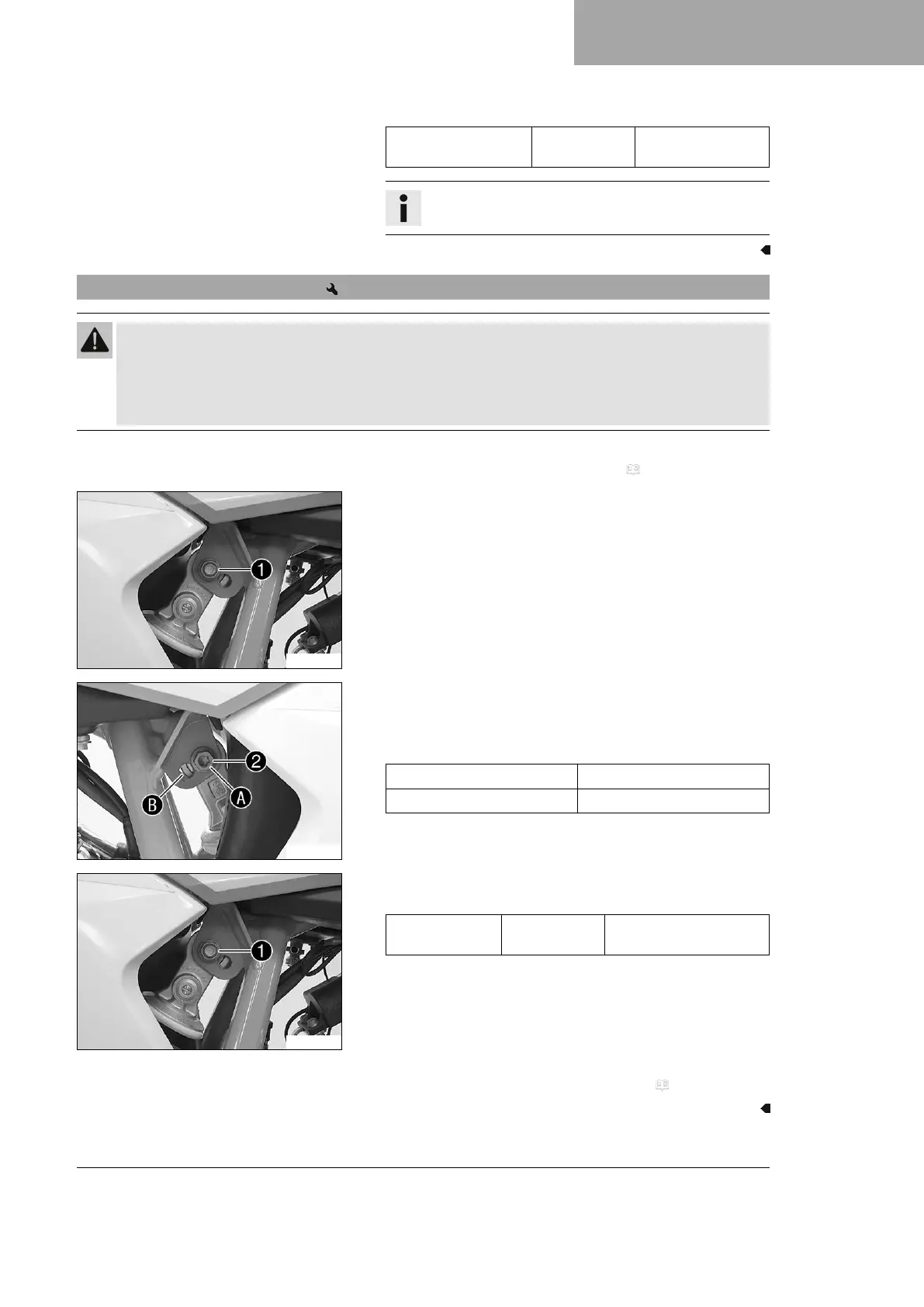

10.17 Adjusting the seat height
Warning
Danger of accidents Modifications to the suspension setting may seriously alter the handling characteris-
tic.
– Make sure your child rides slowly to start with after making adjustments in order that he or she can
assess the new handling characteristic.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 40)
E00746-10
Main work
–
Remove nut
1
.
E00745-10
–
Hold the rear wheel with the link fork and remove screw
2
.
– Position the shock absorber according to the required seat
height.
Guideline
Low seat position (standard)
A
High seat position
B
–
Position screw
2
.
E00746-10
–
Mount nut
1
and tighten the fitting.
Guideline
Screw, top
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
Finishing work
– Remove the motorcycle from the lift stand. ( p. 40)

KTM 50 SX 2022 Specifications

General

Displacement	49 cc
Cooling System	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	684 mm
Weight (without fuel)	41.5 kg
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP XACT USD, Ø 35 mm
Rear Suspension	WP XACT shock absorber
Fuel Tank Capacity	2.3 liters
Frame	Steel
Bore x Stroke	39.5 mm x 40 mm
