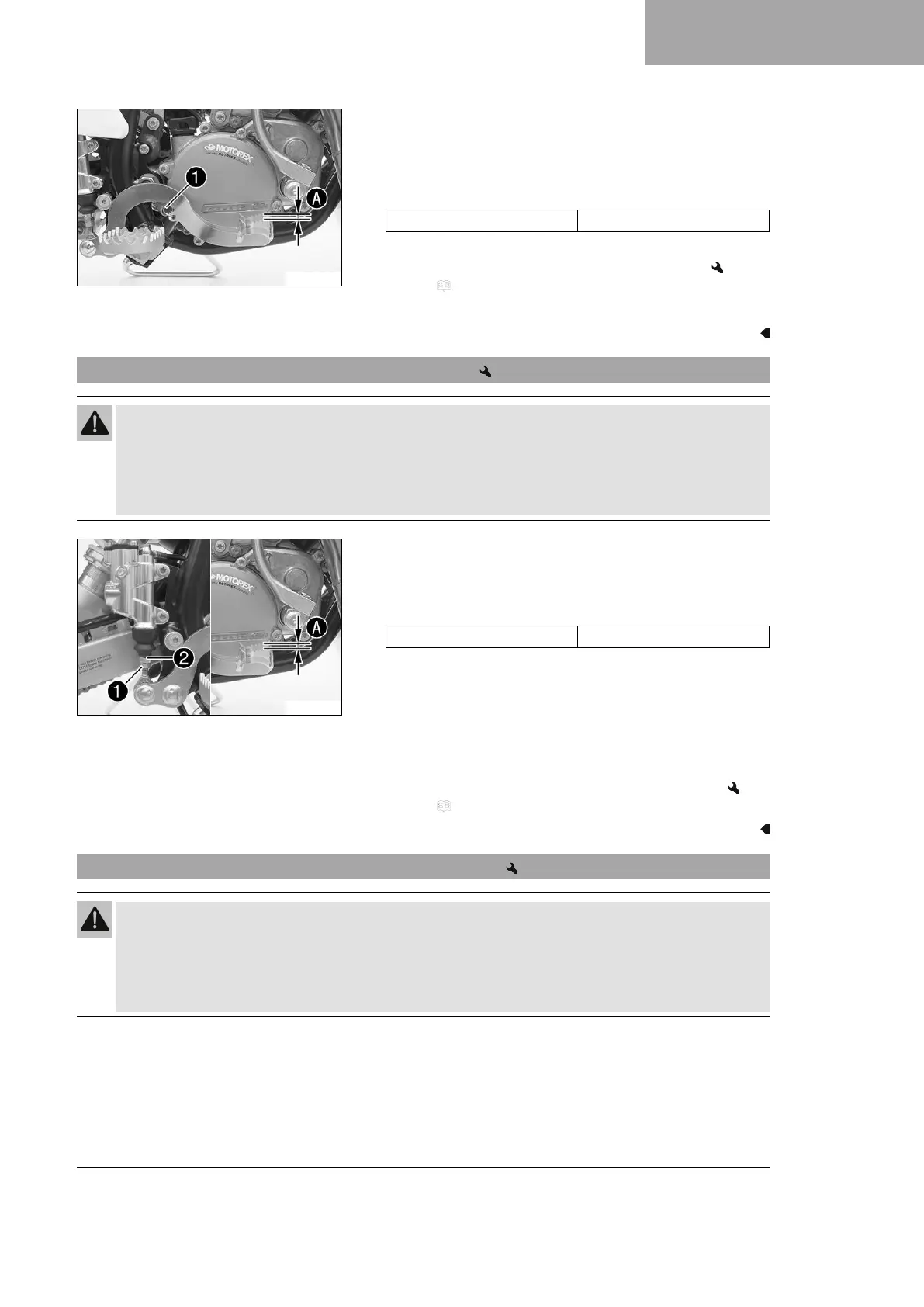

BRAKE SYSTEM 12
79
H01445-10
–
Disconnect spring
1
.
– Move the foot brake lever back and forth between the end
stop and the foot brake cylinder piston bracket and check free
travel
A
.
Guideline
Free travel of foot brake lever 3 … 5 mm (0.12 … 0.2 in)
» If the free travel does not meet specifications:
– Adjust the free travel of the hand brake lever.
( p. 79)
–
Attach spring
1
.
12.10 Adjusting the free travel of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
–
Set the free travel on the foot brake lever in accordance with the specification.
H01446-10
– Detach the foot brake lever spring.
–
Loosen nut
1
.
–
Turn push rod
2
accordingly until you have free travel
A
.
Guideline
Free travel of foot brake lever 3 … 5 mm (0.12 … 0.2 in)
–
Hold push rod
2
and tighten nut
1
.
– Attach the foot brake lever spring.
– Check whether the basic position of the foot brake lever is suit-
able for the rider.
» When the basic position of the foot brake lever needs to be
adjusted:
– Adjust the basic position of the foot brake lever.
( p. 79)
12.11 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
