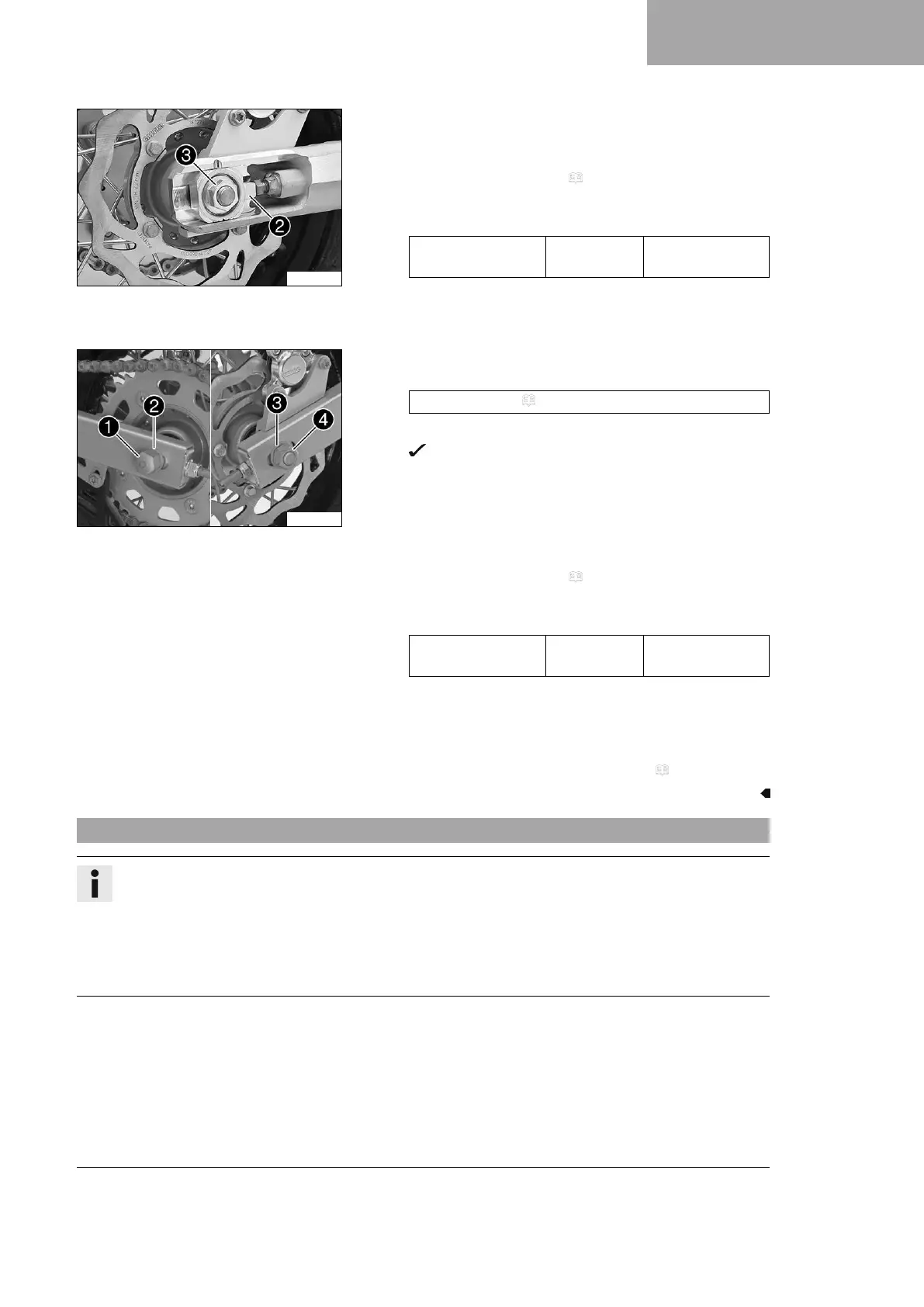

WHEELS, TIRES 13
91
F02209-11
–
Mount nut
3
, but do not tighten it yet.
– Make sure that the chain adjusters are fitted correctly on
the adjusting screws.
– Check the chain tension. ( p. 63)
–
Tighten nut
3
.
Guideline
Nut, rear wheel
spindle
M12x1 40 Nm
(29.5 lbf ft)
– Operate the foot brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pres-
sure point.
V00281-12
(50 SX MINI)
–
Clean and grease wheel spindle
1
.
Long-life grease ( p. 136)
– Position rear wheel and mount the chain.
The brake linings are correctly positioned.
–
Insert wheel spindle
1
with washer
2
.
–
Position washer
3
. Mount nut
4
, but do not tighten it
yet.
–
Make sure that the chain adjuster support plates are in
contact with the adjusting nuts.
– Check the chain tension. ( p. 63)
–
Tighten nut
4
.
Guideline
Nut, rear wheel
spindle
M12x1 40 Nm
(29.5 lbf ft)
– Operate the foot brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pres-
sure point.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 40)
13.5 Checking the tire condition
Info
Only mount tires approved and/or recommended by KTM.
Other tires could have a negative effect on handling characteristics.
The type, condition, and pressure of the tires all have a major impact on the handling characteristic of the
motorcycle.
The tires mounted on the front and rear wheels must have a similar profile.
Worn tires have a negative effect on handling characteristics, especially on wet surfaces.
