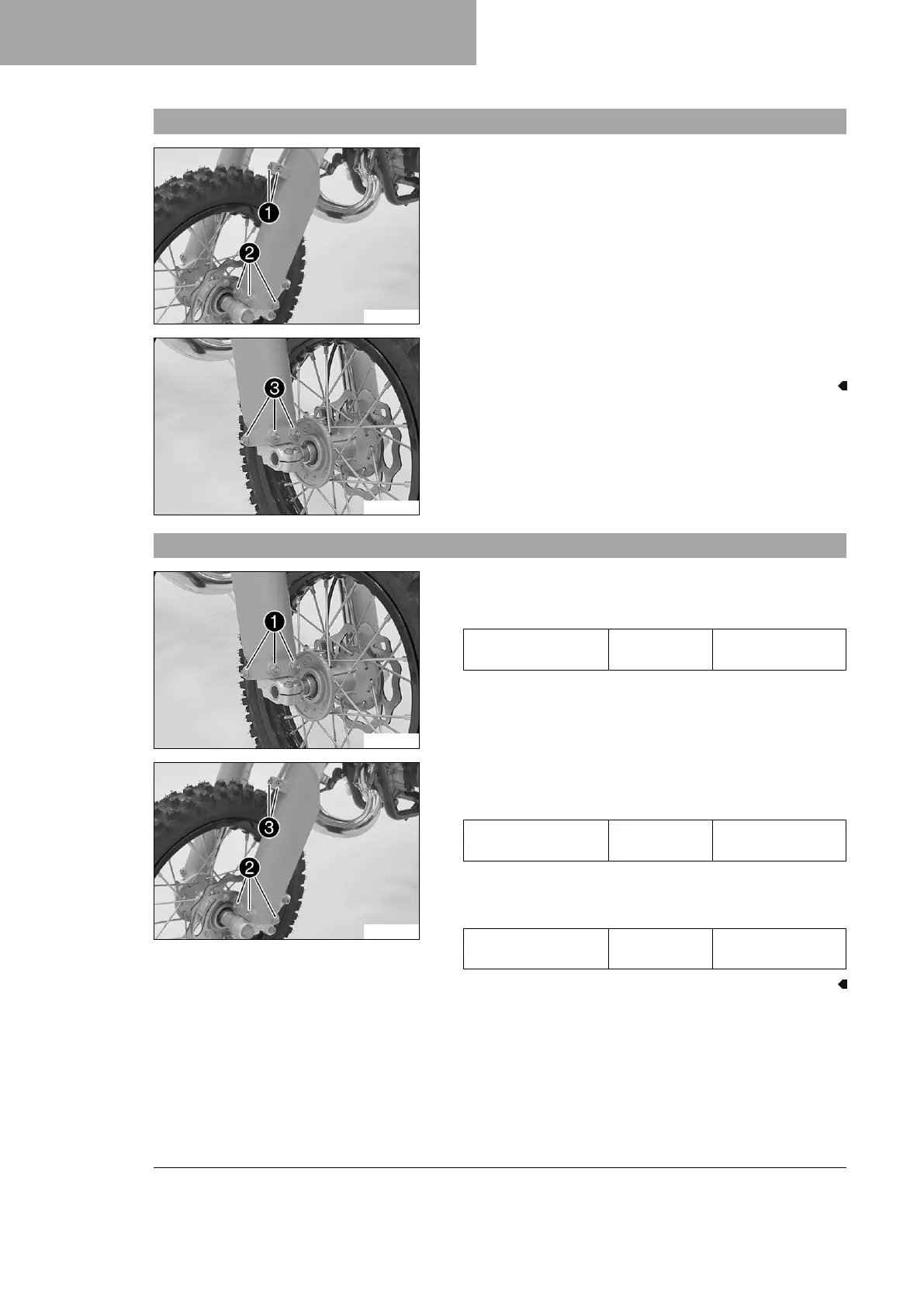

11 SERVICE WORK ON THE CHASSIS

11.5 Removing the fork protector

V00266-10

–

Remove screws

and take off the clamp.

–

Remove screws

on the left fork leg. Take off the fork pro-

tector.

V00267-11

–

Remove screws

on the right fork leg. Take off the fork pro-

tector.

11.6 Installing the fork protector

V00267-10

– Position fork protector on the right fork leg. Mount and tighten

screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

V00266-11

– Position fork protector on left fork leg. Mount and tighten

screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

– Position the brake line and the clamp. Mount and tighten

screws

Guideline

Screw, brake line

holder

EJOT PT

K60x20-Z

2 Nm (1.5 lbf ft)
