KTM 50 SX 2022 User Manual

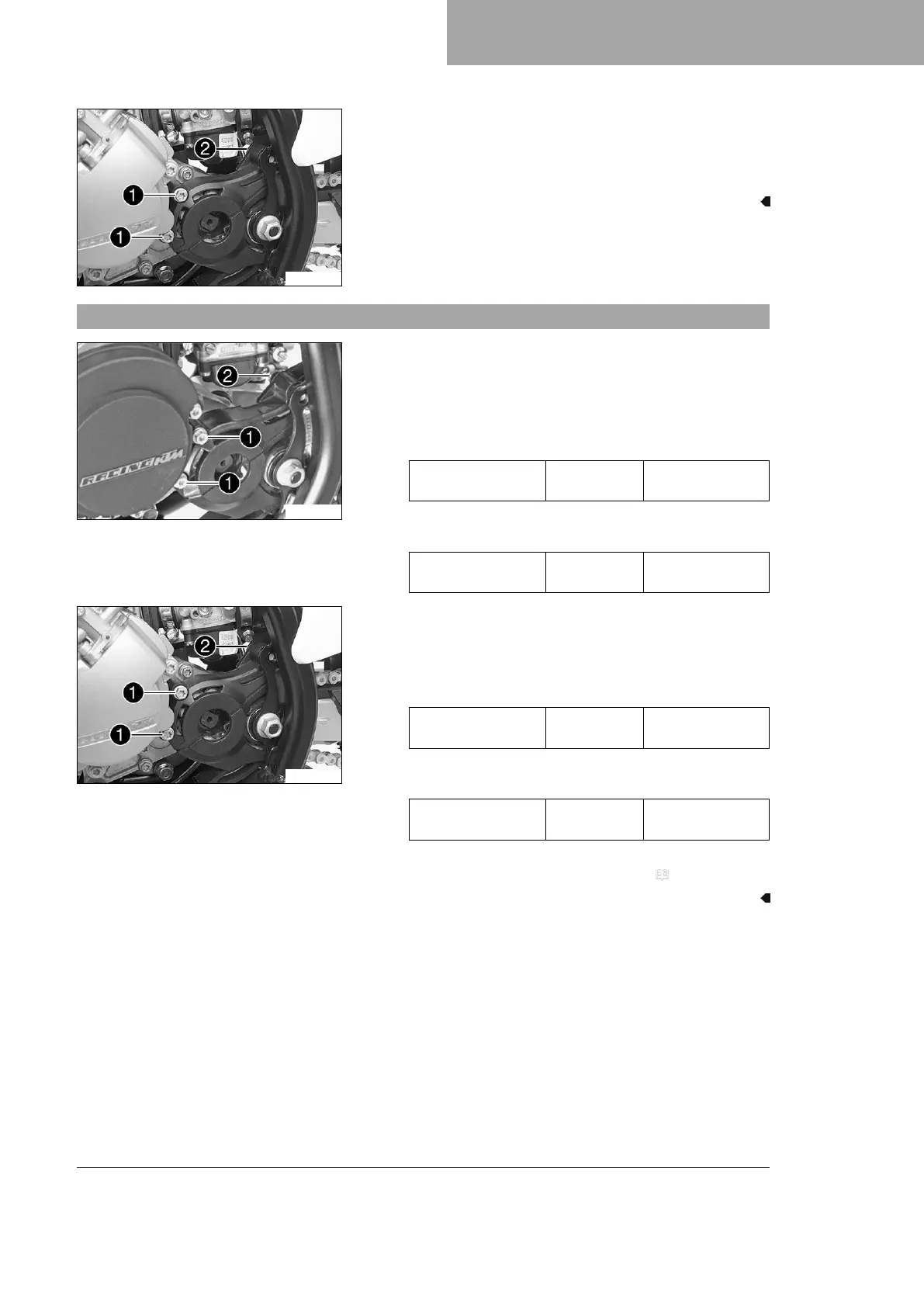

SERVICE WORK ON THE CHASSIS 11
61
H01436-10
(50 SX MINI)
–
Remove screws
1
.
–
Remove screw
2
.
– Take off the engine sprocket cover.
11.31 Installing the engine sprocket cover
H01437-10
Main work
(50 SX, FACTORY EDITION)
–
Position the engine sprocket cover. Mount screws
1
, but
do not tighten yet.
–
Mount and tighten screw
2
.
Guideline
Screw, engine
sprocket cover
M8 15 Nm
(11.1 lbf ft)
–
Tighten screws
1
.
Guideline
Screw, engine
sprocket cover
M6 10 Nm (7.4 lbf ft)
H01436-10
(50 SX MINI)
–
Position the engine sprocket cover. Mount screws
1
, but
do not tighten yet.
–
Mount and tighten screw
2
.
Guideline
Screw, engine
sprocket cover
M8 15 Nm
(11.1 lbf ft)
–
Tighten screws
1
.
Guideline
Screw, engine
sprocket cover
M6 10 Nm (7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 40)
