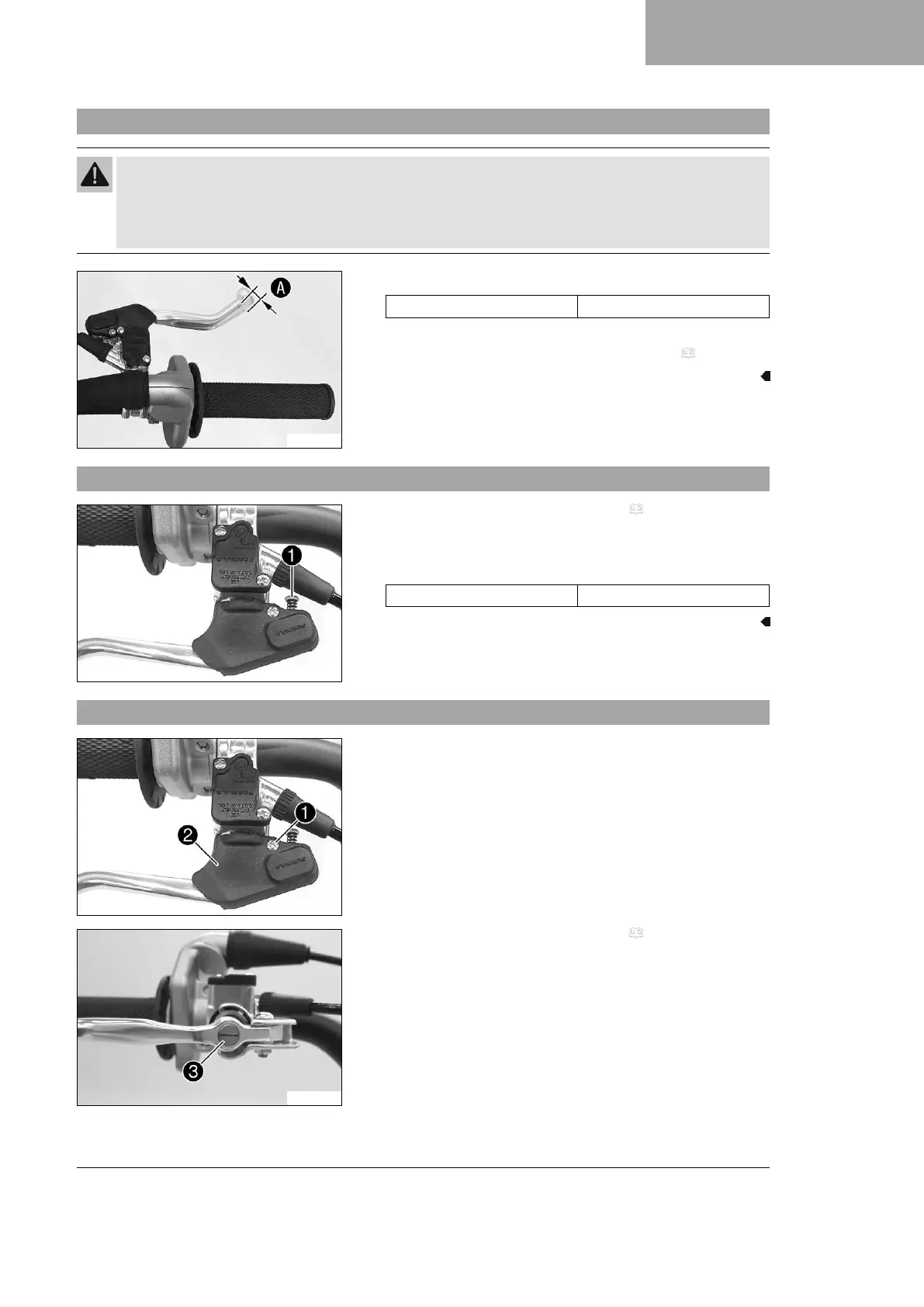

12.1 Checking play of handbrake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the hand brake lever, pressure builds up on the front brake circuit.
– Set the free travel on the hand brake lever in accordance with the specification.
V02094-10
–
Push the handbrake lever forwards and check play
A
.
Play of hand brake lever 3 … 5 mm (0.12 … 0.2 in)
» If the play does not meet specifications:
– Adjust the play of the hand brake lever. ( p. 71)
12.2 Adjusting the play of the hand brake lever
V02098-10
– Check the play of the handbrake lever. ( p. 71)
– Adjust the play of the hand brake lever using adjusting
screw
1
.
Guideline
Play of hand brake lever 3 … 5 mm (0.12 … 0.2 in)
12.3 Adjusting the basic position of the hand brake lever
V02099-10
–
Remove screw
1
. Take off cover
2
.
V02095-10
– Check the play of the handbrake lever. ( p. 71)
– Adjust the basic position of the hand brake lever with adjust-
ing screw
3
to the rider's hand size.

KTM 50 SX 2022 Specifications

General

Displacement	49 cc
Cooling System	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	684 mm
Weight (without fuel)	41.5 kg
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP XACT USD, Ø 35 mm
Rear Suspension	WP XACT shock absorber
Fuel Tank Capacity	2.3 liters
Frame	Steel
Bore x Stroke	39.5 mm x 40 mm
