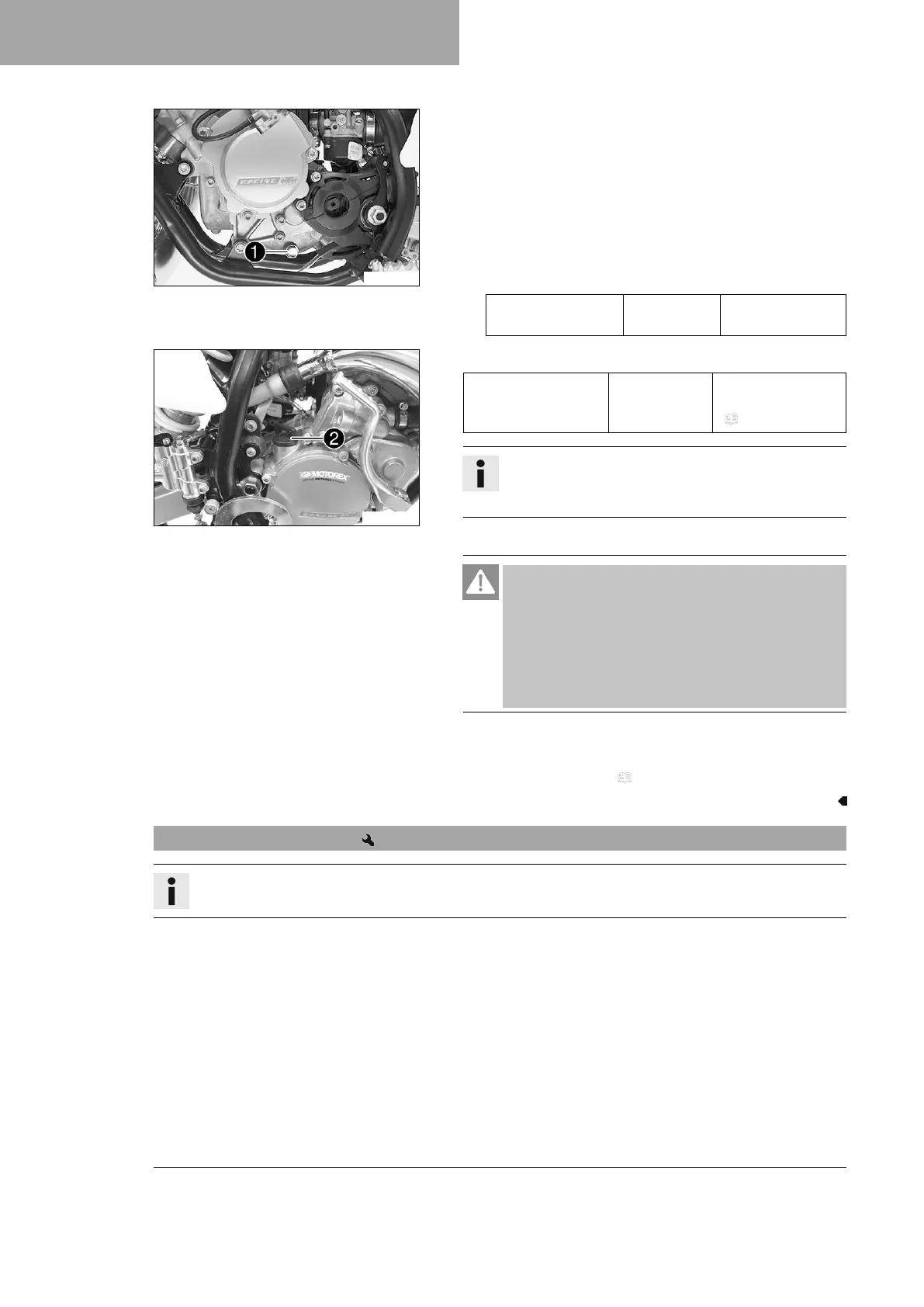

16 SERVICE WORK ON THE ENGINE
112
S00883-10
(50 SX MINI)
– Position an appropriate container under the engine.
–
Remove oil drain plug
1
with the magnet.
– Let the gear oil drain fully.
– Thoroughly clean the oil drain plug with magnet.
– Clean the sealing surface on the engine.
– Mount and tighten the oil drain plug with the magnet and
new seal ring.
Guideline
Oil drain plug with
magnet
M12x1.5 20 Nm
(14.8 lbf ft)
H01460-10
–
Remove filler plug
2
with the O-ring, and fill up with gear oil.
Gear oil 0.20 l
(0.21 qt.)
Gear oil
(ATF Dexron 3)
( p. 135)
Info
Too little gear oil or poor-quality gear oil results in pre-
mature wear to the transmission.
–
Mount and tighten filler plug
2
together with the O-ring.
Danger
Danger of poisoning Exhaust gases are toxic and inhal-
ing them may result in unconsciousness and death.
– Always make sure there is sufficient ventilation
when running the engine.
– Use effective exhaust extraction when starting or
running the engine in an enclosed space.
– Start the engine and check for leaks.
Finishing work
– Check the gear oil level. ( p. 110)
16.5 Adding the gear oil
Info
Too little gear oil or poor-quality gear oil results in premature wear to the transmission.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
