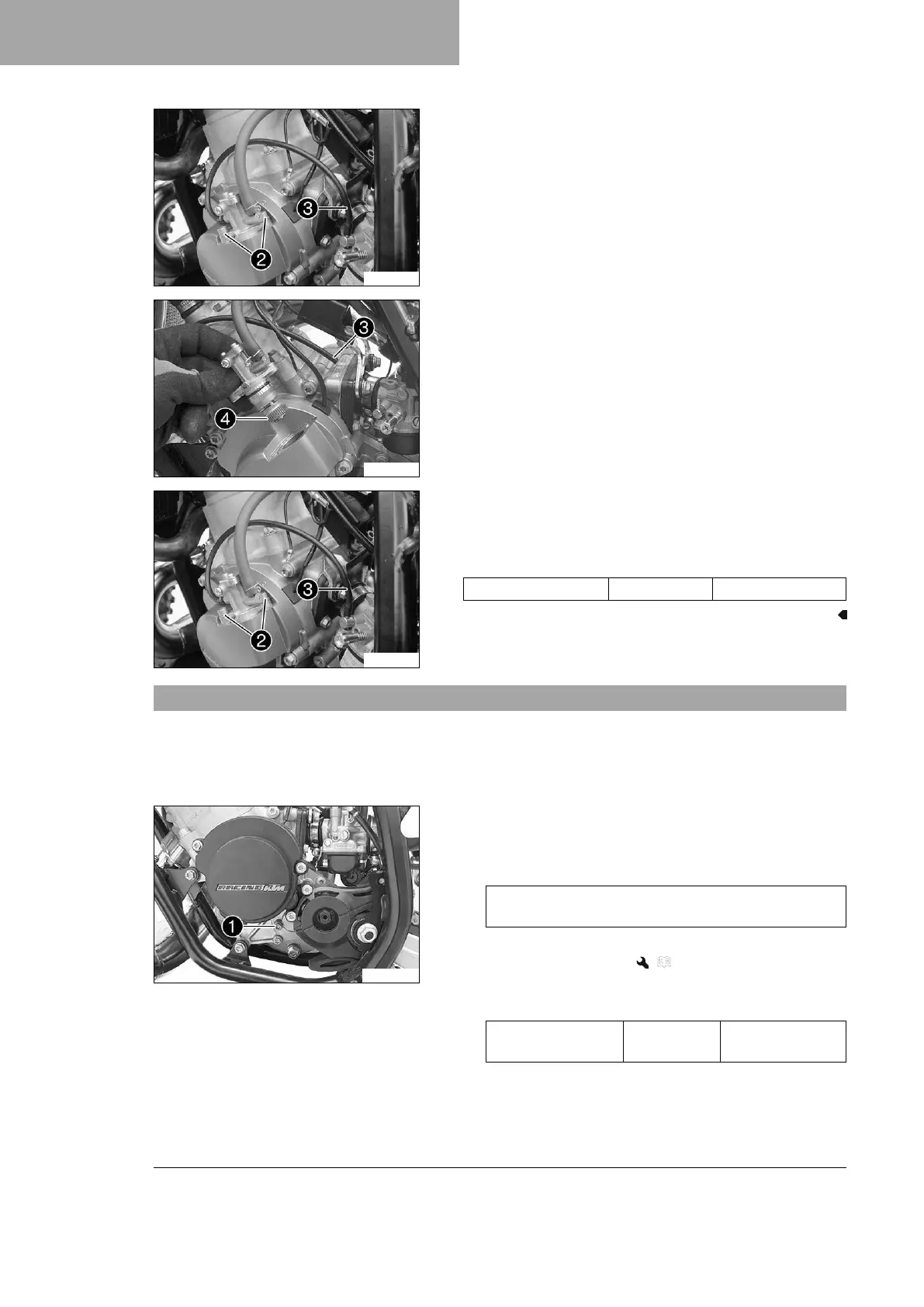

KTM 50 SX 2022 User Manual

16 SERVICE WORK ON THE ENGINE
110
300651-10
–
Remove screws
2
.
– Take off the oil pump.
–
Pull off oil line
3
from the carburetor.
V00276-10
–
Turn oil pump gear wheel
4
counterclockwise until oil flows
out of oil line
3
without bubbles.
300651-10
–
Connect oil line
3
.
– Position the oil pump.
–
Mount and tighten screws
2
.
Guideline
Screw, oil pump M5 6 Nm (4.4 lbf ft)
16.3 Checking the gear oil level
Condition
The engine is cold.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
H00083-10
Main work
(50 SX, FACTORY EDITION)
–
Remove screw
1
.
–
Check the gear oil level.
A small quantity of gear oil must run out of the drilled
hole.
» If no gear oil runs out:
– Add the gear oil. ( p. 112)
–
Mount and tighten screw
1
.
Guideline
Screw, gear oil level
monitoring
M6 6 Nm (4.4 lbf ft)

KTM 50 SX 2022 Specifications

General

Displacement	49 cc
Cooling System	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	684 mm
Weight (without fuel)	41.5 kg
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP XACT USD, Ø 35 mm
Rear Suspension	WP XACT shock absorber
Fuel Tank Capacity	2.3 liters
Frame	Steel
Bore x Stroke	39.5 mm x 40 mm
