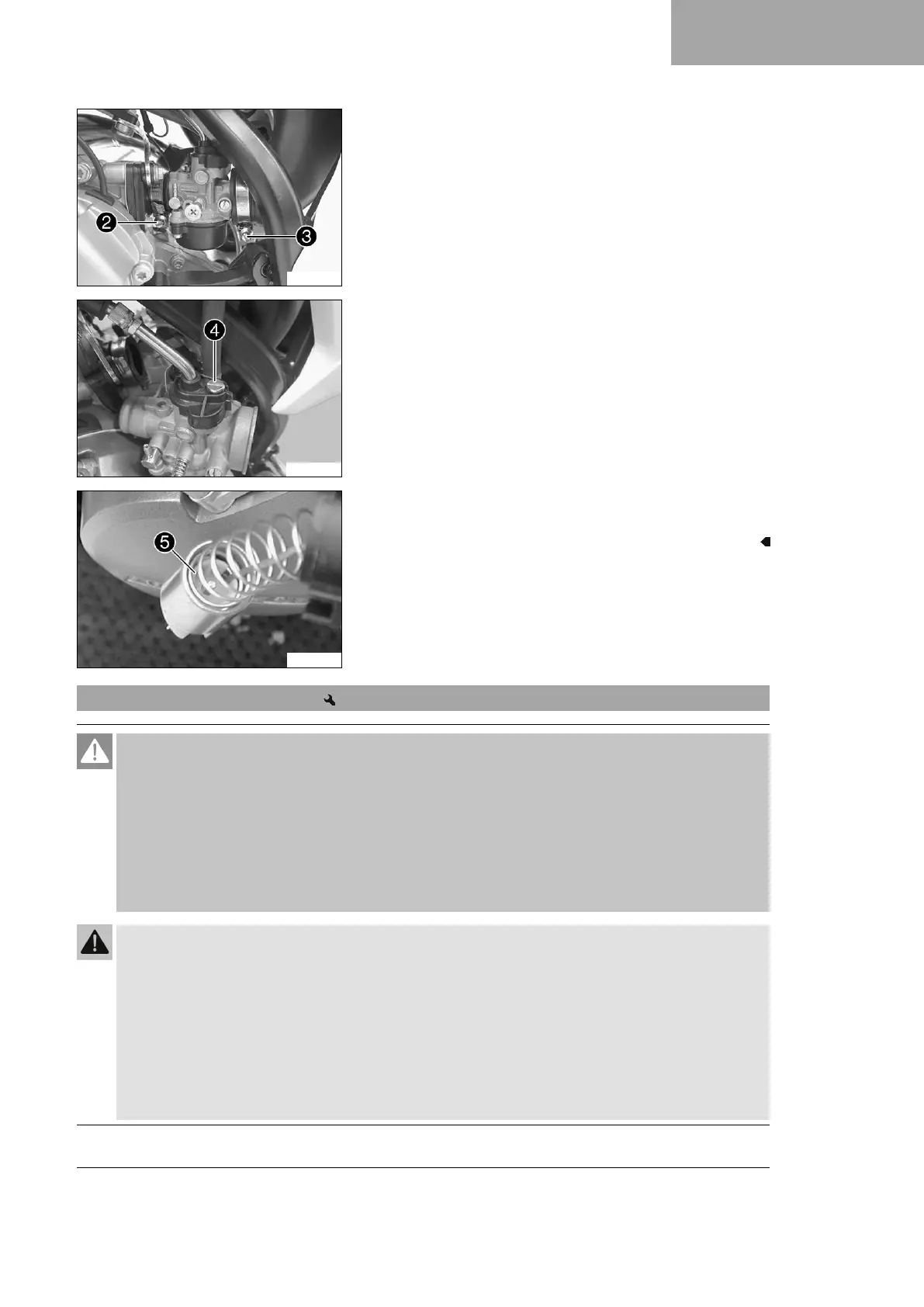

CARBURETOR 17

115

T00392-10

–

Loosen hose clip

–

Loosen hose clip

– Pull the carburetor out of the intake flange.

– Pull the carburetor forward out of the inlet sleeve.

R04499-10

–

Remove screw

– Take off the throttle slide cover and pull the throttle slide out

of the carburetor.

– Drain the remaining fuel.

T00393-10

–

Pull back spring retainer

and the throttle slide spring.

– Detach the throttle cable.

17.2 Removing the carburetor (50 SX, FACTORY EDITION)

Danger

Fire hazard Fuel is highly flammable.

The fuel in the fuel tank expands when warm and can escape if overfilled.

– Do not fuel the vehicle in the vicinity of open flames or lit cigarettes.

– Switch off the engine for refueling.

– Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.

– If any fuel is spilled, wipe it off immediately.

– Observe the specifications for refueling.

Warning

Danger of poisoning Fuel is poisonous and a health hazard.

– Avoid skin, eye and clothing contact with fuel.

–

Immediately consult a doctor if you swallow fuel.

– Do not inhale fuel vapors.

– In case of skin contact, rinse the affected area with plenty of water.

– Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.

– Change your clothing in case of fuel spills on them.

– Keep fuels correctly in a suitable canister, and out of the reach of children.
