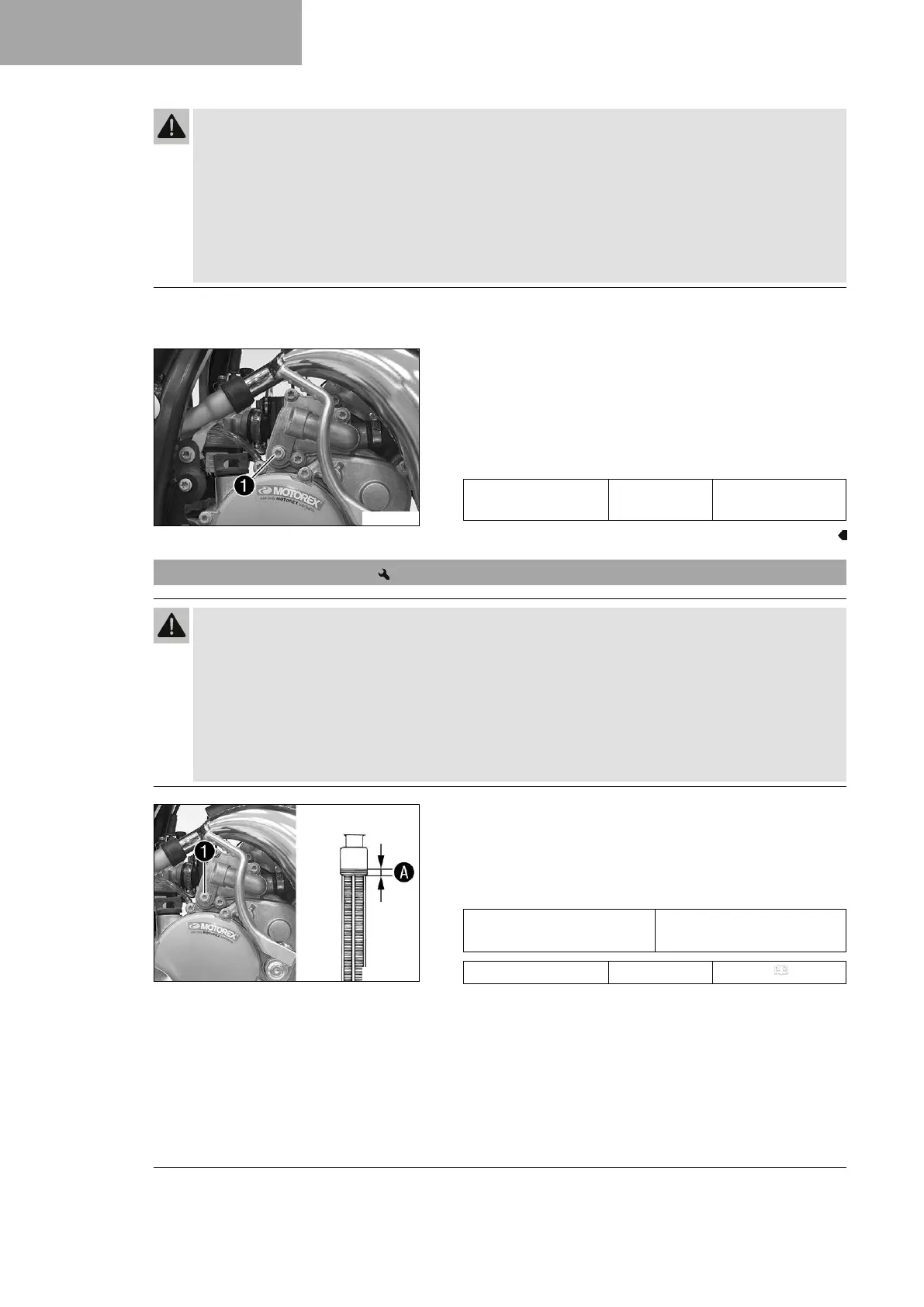

14 COOLING SYSTEM
96
Warning
Danger of poisoning Coolant is toxic and a health hazard.
– Keep coolant out of the reach of children.
– Do not allow coolant to come into contact with the skin, the eyes and clothing.
– Consult a doctor immediately if coolant is swallowed.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water and consult a doctor immediately if coolant gets into the eyes.
– Change clothing if coolant spills onto your clothing.
Condition
The engine is cold.
H00076-10
– Position the motorcycle upright.
– Place an appropriate container under the water pump cover.
–
Remove screw
1
. Take off the radiator cap.
– Completely drain the coolant.
–
Mount and tighten screw
1
with a new seal ring.
Guideline
Drain plug, water
pump cover
M6 6 Nm (4.4 lbf ft)
14.5 Refilling with coolant
Warning
Danger of poisoning Coolant is toxic and a health hazard.
– Keep coolant out of the reach of children.
– Do not allow coolant to come into contact with the skin, the eyes and clothing.
– Consult a doctor immediately if coolant is swallowed.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
–
Rinse eyes thoroughly with water and consult a doctor immediately if coolant gets into the eyes.
– Change clothing if coolant spills onto your clothing.
H00105-10
Main work
–
Make sure that screw
1
is tightened.
– Position the motorcycle upright.
–
Add coolant to level
A
.
Guideline
Distance
A
above the radi-
ator fins
10 mm (0.39 in)
Coolant 0.7 l (0.7 qt.) Coolant ( p. 134)
