6 CONTROLS
16

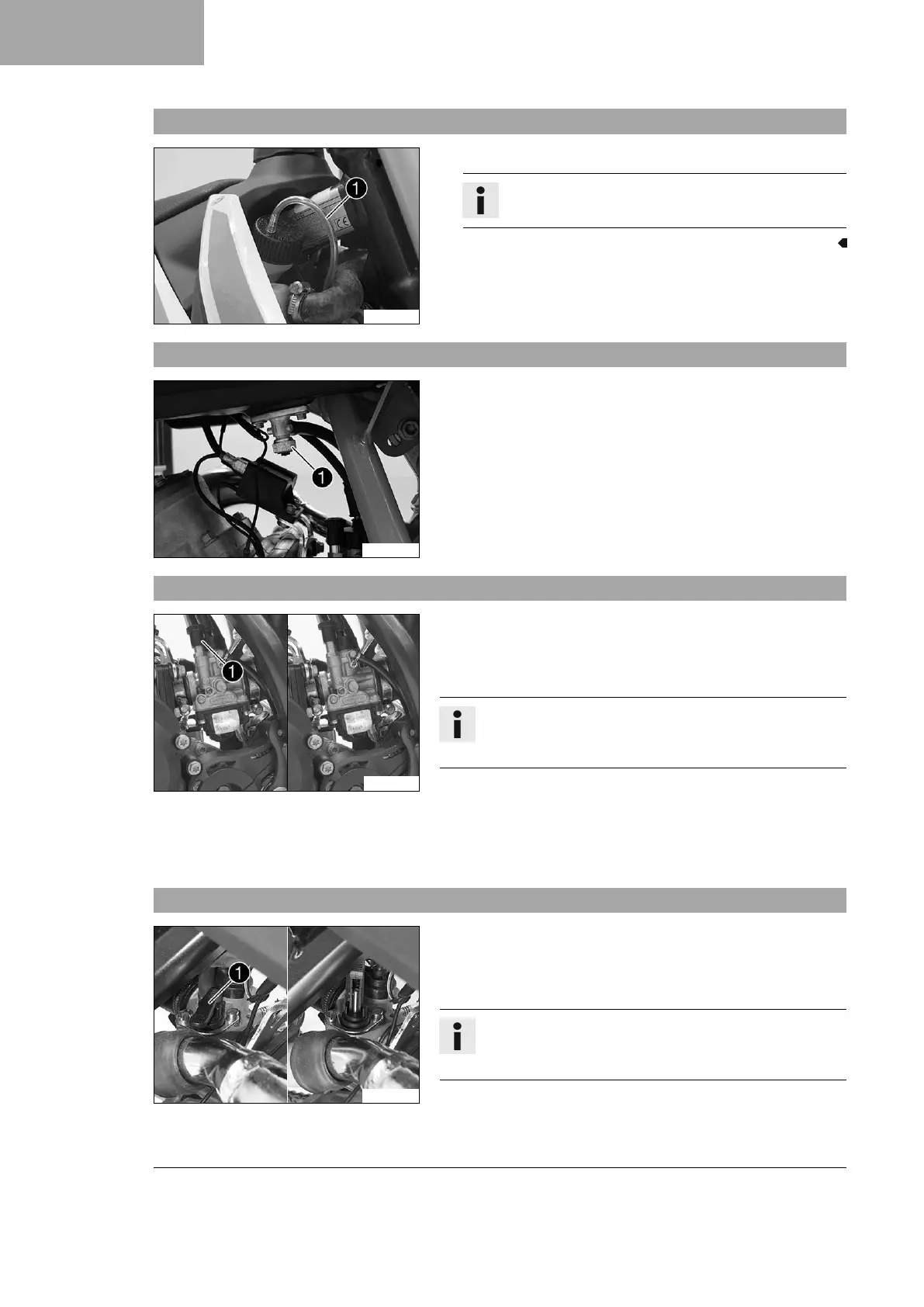

6.7 Closing oil tank cap (50 SX MINI)
V00253-11
– Put the oil tank cap on and turn it clockwise.
Info
Run the oil tank breather hose
1
without kinks.
6.8 Fuel tap
H03602-10
Fuel tap
1
is on the left of the fuel tank.
Possible states
• Fuel tap is closed – The knurled screw is turned all the way
clockwise. Fuel cannot flow out of the fuel tank.
• Fuel tap is open – The knurled screw is turned all the way
counterclockwise. Fuel can flow out of the fuel tank.
6.9 Choke (50 SX, FACTORY EDITION)
S03217-10
Choke
1
is fitted on the left side of the carburetor.
Activating the choke function frees a drill hole in the carburetor
through which the engine can draw extra fuel. This results in a
richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deacti-
vated.
Possible states
• Choke function activated – The choke lever is pulled out to
the stop.
• Choke function deactivated – The choke lever is pushed in to
the stop.
6.10 Choke (50 SX MINI)
H00086-10
The choke lever
1
is fitted on the right of the carburetor.
Activating the choke function frees a drill hole in the carburetor
through which the engine can draw extra fuel. This results in a
richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deacti-
vated.
