KTM 50 SX 2022 User Manual

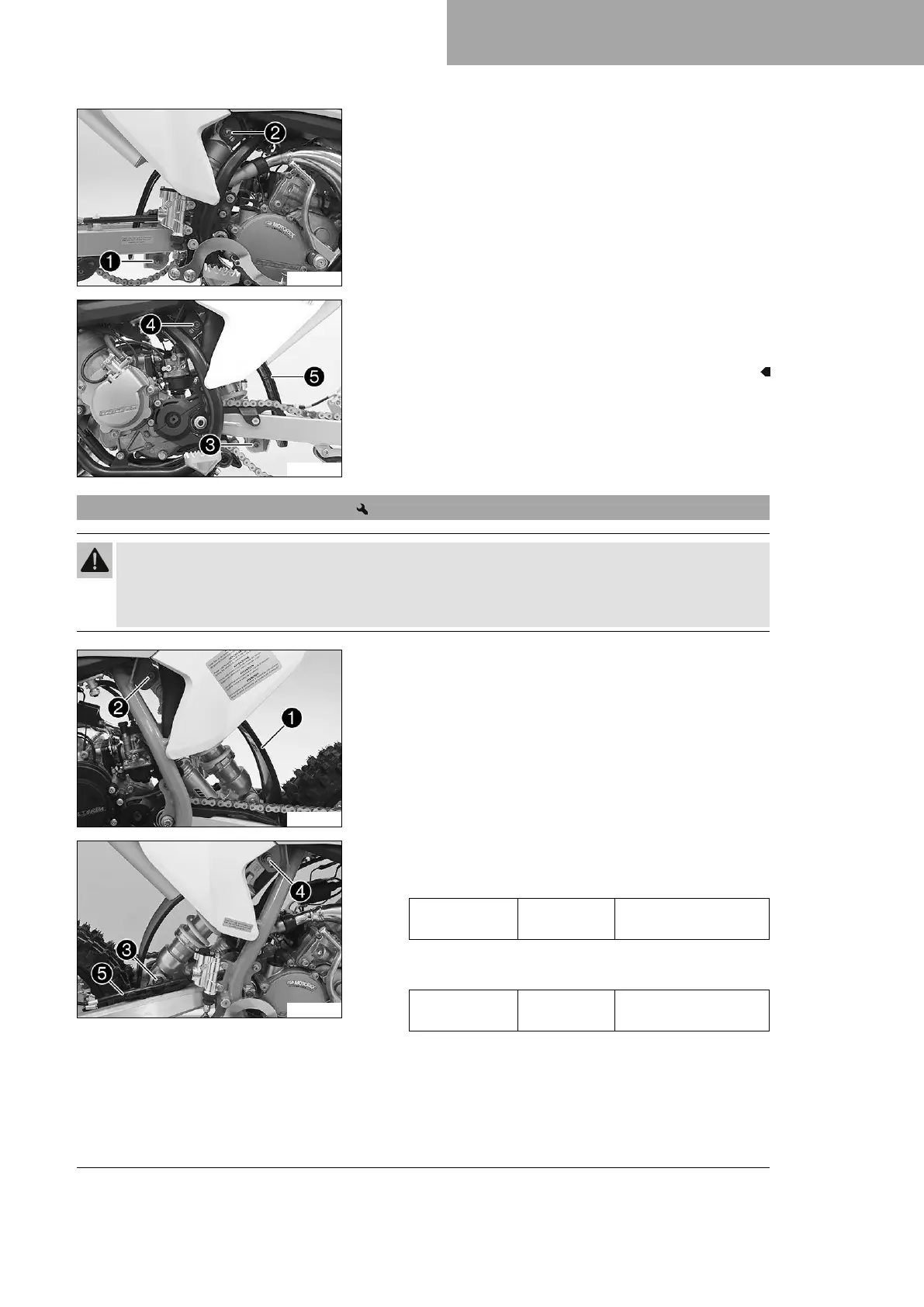

SERVICE WORK ON THE CHASSIS 11
55
V00279-10
(50 SX MINI)
–
Remove nut
1
and nut
2
.
V00280-10
–
Remove screw
3
and lower the link fork carefully.
–
Remove screw
4
, push splash protector
5
to the side,
and remove the shock absorber.
11.21 Installing the shock absorber
Warning
Danger of accidents Modifications to the suspension setting may seriously alter the handling characteris-
tic.
– Ride slowly to start with after making adjustments to get the feel of the new handling characteristic.
F02196-11
Main work
(50 SX, FACTORY EDITION)
–
Push splash protector
1
to the side.
–
Position the shock absorber with screw
2
, depending on
the desired seating height.
F02195-11
– Raise the link fork, mount and tighten the shock absorber
with screw
3
.
Guideline
Screw, bottom
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Mount nut
4
and tighten the fitting.
Guideline
Screw, top
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Attach brake line
5
to the holder.

KTM 50 SX 2022 Specifications

General

Displacement	49 cc
Cooling System	Liquid cooled
Transmission	Single-speed automatic
Starter	Kickstarter
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	684 mm
Weight (without fuel)	41.5 kg
Engine Type	Single cylinder, 2-stroke
Front Suspension	WP XACT USD, Ø 35 mm
Rear Suspension	WP XACT shock absorber
Fuel Tank Capacity	2.3 liters
Frame	Steel
Bore x Stroke	39.5 mm x 40 mm
