11 SERVICE WORK ON THE CHASSIS

11.19 Installing front fender

F02891-10

–

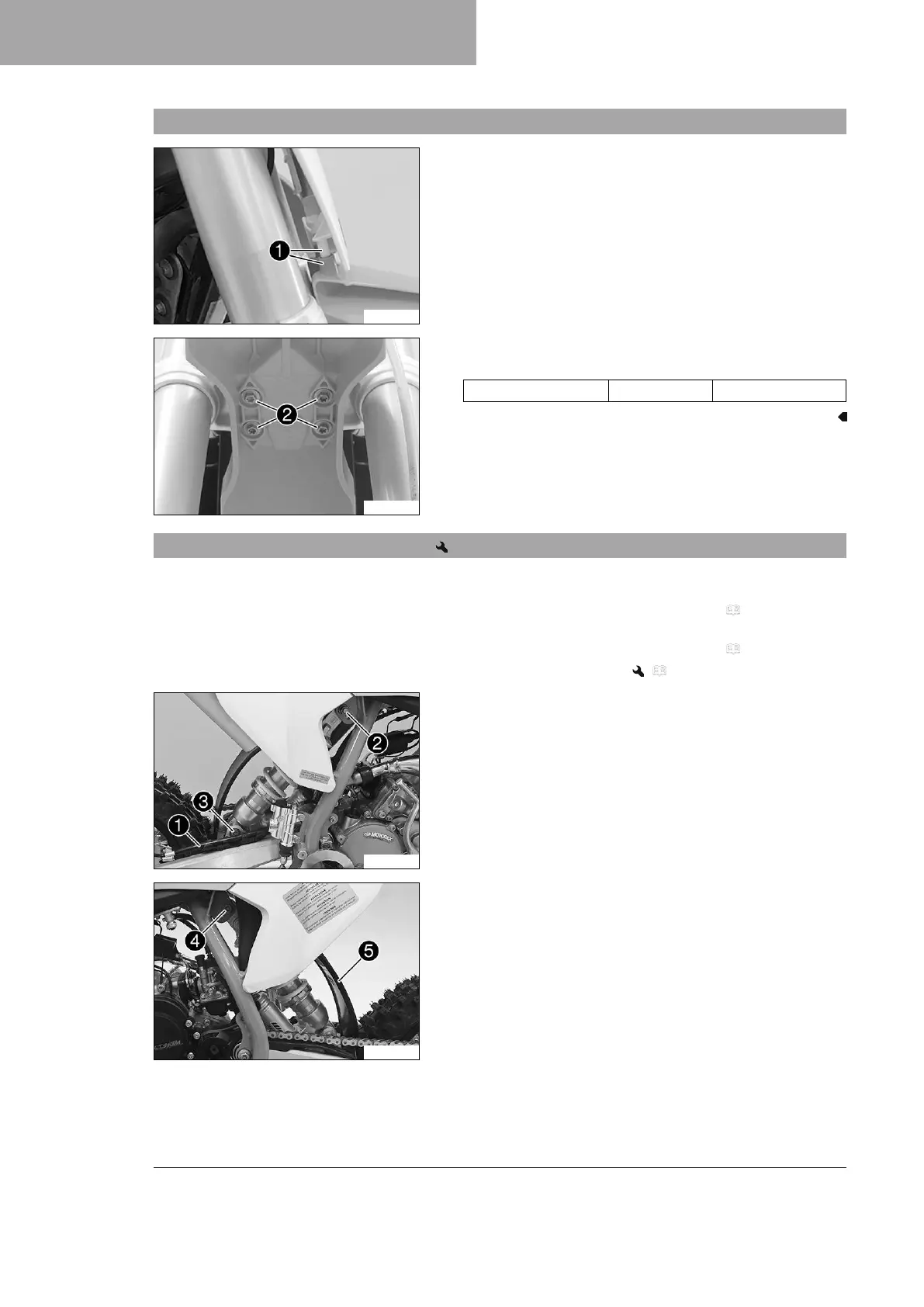

Position the fender with drill holes

in the holding lugs on

the start number plate.

F02890-11

–

Position front fender. Mount and tighten screws

Guideline

Screw, fender M6 6 Nm (4.4 lbf ft)

11.20 Removing the shock absorber

Preparatory work

(50 SX, FACTORY EDITION)

– Raise the motorcycle with a lift stand. ( p. 40)

(50 SX MINI)

– Raise the motorcycle with a lift stand. ( p. 40)

– Remove the rear wheel. ( p. 88)

F02195-10

Main work

(50 SX, FACTORY EDITION)

–

Pull brake line

out of the holder.

–

Remove nut

–

Remove screw

and lower the link fork carefully.

F02196-10

–

Remove screw

, push splash protector

to the side,

and remove the shock absorber.
